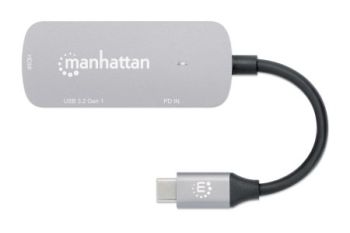

Manhattan 130707
USB-C to HDMI 3-in-1 docking converter with Power Delivery USB 3.2 Type-C male to HDMI (4K@30Hz), USB-A (5Gbps) and USB-C PD (100W) ports content_copy

Multiport converter with pass-through charging port, aluminum, space gray
USB-C to HDMI adapter - connection for laptop, MacBook, smartphone or tablet to HDMI monitor plus USB-A peripherals and Power Delivery charging port:
The Manhattan USB-C to HDMI 3-in-1 docking converter forms a quick, easy and practical interface between USB Type C devices (laptop, computer, MacBook, Chromebook, tablet, etc.) and HDMI display (monitor, television, projector). 4K at 30 Hz. Thanks to the USB-A port with USB 3.2 Gen 1 (formerly USB 3.0) for connecting a mouse or keyboard, this adapter is also suitable for a mini workstation or for connecting a USB stick, USB printer or USB -Hard disk. Installation remains quick and easy with Plug < Play.
Up to 100 W charging power with USB-C Power Delivery (PD):
The integrated USB-C PD port allows notebook battery charging with up to 100 W and the simultaneous charging of your other mobile devices such as smartphones or tablets via the USB-A port . The Power Delivery function with all its advantages also ensures particularly fast, powerful and safe charging.
Bring your phone to the big screen:
If you have a smartphone with Android 9 or higher and support for video output via USB-C, you can use apps and media on a connected display. Watch a video on your TV or show a presentation on a projector - directly from your cell phone.
A multiport adapter for on the go:
Despite the many connection options, the robust aluminum housing of this adapter measuring 71 x 29 x 12 mm is compact enough for the outer compartment of a notebook bag. - Easily connect a USB-C device to an HDMI display and a USB-A peripheral and charge both USB devices simultaneously

• Resolutions up to Ultra High Definition (UHD) 4K@30Hz (3840 × 2160)
• A USB 3.2 Gen 1 Type-A port (previously USB 3.0) with SuperSpeed transfer rates up to 5 Gbit/s and a charging power of up to 5 W (5 V / 1 A)
• USB-A port for connecting mice, Keyboards or storage media (and more) or for charging and syncing a mobile device
• Supports USB Power Delivery (PD) function up to 100W; requires external PD charger - available from Manhattan
• Compatible with DisplayPort 1.2 Alternate Mode (DP Alt Mode)
• Compatible with all USB-C DP Alt Mode supported PCs, notebooks and tablets, including Apple MacBook®, Chromebook™, Pixel ™ and more
• Robust, slim aluminum housing, suitable for desk use and on the go
• Integrated, durable 11 cm connection cable
• Fully HDCP 1.4 compliant, backwards compatible
• Allows you to use your smartphone as a desktop PC while simultaneously charging its battery (desktop display requires devices running Android 9 or later with video output via USB-C)
• Plug < Play installation; Compatible with Windows®, macOS®, Linux® and Chrome OS™, iPadOS® and Android™
• 3 year warranty Standards and certificates
• DP 1.2 Alt Mode via USB-C
• USB 3.2 Gen 1
• HDMI 1.4
• HDCP 1.4
• CE
• FCC
• RoHS
• REACH
• UKCA
General

• Transfer rate USB-A port: 5 Gbit/s max.
• Powered via USB (except charging functions)
• USB-C PD charging port: 100.0 W (20.0 V at 5. 0 A) max.
• USB-A charging function: 5.0 W (5.0 V at 1.0 A) max.
Connections

• 1 x 24-pin. USB-C connector
• 1 x 24-pin. USB-C socket
• 1 x 4-pin USB-A socket
• 1 x 19-pin HDMI socket
Physical details

• Dimensions (L x W x H): 71 x 29 x 12 mm
• Net weight: 31 g
• Gross weight: 55 g
• Cable length: 11 cm
• Cable diameter: AWG 34
• Aluminum housing
Working environment

• Operating ambient temperature: 0 - 45°C
• Ambient storage temperature: -10 - 70°C
• Humidity (non-condensing): 5 - 90% RH
System requirements

• Windows 7/8.1/10/11, Linux, Chrome OS, macOS, iPadOS or Android
Package contents

• USB-C to HDMI 3-in-1 Docking Converter with Power Delivery
• Instructions Color: Space Gray Product dimensions: 71 (L) x 29 (W) x 12 (H) [mm]

Network
Ethernet LAN
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Packaging content
Manual
Packaging data
Quantity per pack	1 pc(s)
Package weight	55 g
Performance
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	30 Hz
Product colour	Aluminium
Housing material	Aluminium
Certification	CE FCC RoHS REACH UKCA
Card reader integrated
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery up to	100 W
HDMI ports quantity	1
HDMI version	1.4
HDCP version	1.4
USB Power Delivery (USB PD)
Microphone in
DC-in jack
HDCP
Power
USB cable length	0.11 m
Wireless charging
Software
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8.1
Mac operating systems supported	MacOS
Mobile operating systems supported	iPadOS
Other operating systems supported	Android
Linux operating systems supported
Technical details
Compliance certificates	CE, REACH, RoHS, UKCA, Federal Communications Commission (FCC)
Weight & dimensions
Width	29 mm
Depth	71 mm
Height	12 mm
Weight	31 g

---
