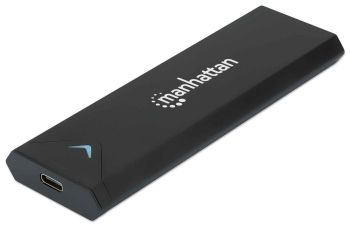

Manhattan 130530
M.2 NVMe SSD hard drive enclosure USB 3.2 Gen 2, USB-C female connector for up to 10 Gbit/s, UASP compliant, aluminum, black
|
-7% 24,43 EUR 26,13 EUR |
|
|
( 29,07 EUR incl. VAT ) ≈ £20.45 | ≈ $27.34 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| End-Of-Life: | 13. May 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1531330 |
| Mfg Part No: | 130530 |
| UPC/EAN: | 766623130530 |
| Weight: | 0.06 kg |
Product information for Manhattan 130530:
- Supports SATA M.2 NVMe SSDs: 42 mm, 60 mm and 80 mm
- Only supports M-Key PCIe NVMe M.2 SSDs up to 2 TB
- Compatible with SATA revisions I (1.5Gbps), II (3Gbps) and III (6Gbps)
- UASP compliant for 70% faster read speeds and 40% faster write speeds than traditional USB 3.2 performance
- TRIM compliant for improved write functionality to SSDs and longer SSD lifespan
- B-Key, M-Key PCIe AHCI SSDs and SATA-based B & M-Key SSDs are not supported
- LED status indicator
- Compact, lightweight aluminum housing, ideal for transport
- Power supply via USB, plug & play, no external power supply required
- 3 year guarantee Standards and certificates:
- USB 3.2 Gen 2
- SATA 3.0
- PCIe Rev 3.1a
- CE
- FCC
- WEEE
- RoHS General
- USB 3.2 Gen 2: 10 Gbit/s
- SATA III: 6 Gbit/s
- Native 4K supported
- TRIM compliant
- BOT supported
- UASP compliant
- Drive connector: one M.2 (SATA, B0Key, NVMe) connector
- Host connection: USB 3.2 Gen 2 USB-C socket
- Powered by USB Physical details
- Aluminum housing
- LED display
- Dimensions: 115 x 39 x 11 mm
- USB 3.2 Gen 2 Type-C to Type-C cable: 15 cm Environmental conditions
- Operating temperature: 0 - 45°C
- Storage temperature: -10 - 70°C
- Humidity (non-condensing): 10 - 90% System requirements:
- Available USB 3.2 Gen 2 port (for full support)
- Operating system: Windows 7 or higher, Mac OS 10.10.5 or higher or Linux
- Android smartphone with USB-C port Box contents
- M.2 NVMe SSD hard drive enclosure
- USB 3.2 Gen 2 Type-C to Type-C cable: 15 cm
- Thermal pad
- SSD Screw Set
- Mini Screwdriver
- Quick Start Guide Color: Black Product dimensions: 115 (L) x 39 (W) x 11 (H) [mm]
| Design | |
| Product type | SSD enclosure |
| Product colour | Black |
| Material | Aluminium |
| LED indicators | Status |
| Certification | CE FCC WEEE |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Cables included | USB Type-C to USB Type-C |
| Screws included | |
| Screwdriver included | |
| Manual | |
| Performance | |
| Data transfer rate | 10 Gbit/s |
| Plug and Play | |
| Ports & interfaces | |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-C |
| USB connector gender | Female |
| USB ports quantity | 1 |
| USB connectivity | |
| Power | |
| Power source type | USB |
| Storage | |
| Number of storage drives supported | 1 |
| Storage drive size | M.2 |
| Supported storage drive interfaces | M.2 |
| Installed storage drive interface | Serial ATA III |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 115 mm |
| Depth | 39 mm |
| Height | 11 mm |
