Manhattan 102049
USB 2.0 smart card reader USB-A plug, chip card reader, external
|
15,71 EUR |
|
|
( 18,69 EUR incl. VAT ) ≈ £13.27 | ≈ $17.56 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1138245 |
| Mfg Part No: | 102049 |
| UPC/EAN: | 766623102049 |
| Weight: | 0.056 kg |

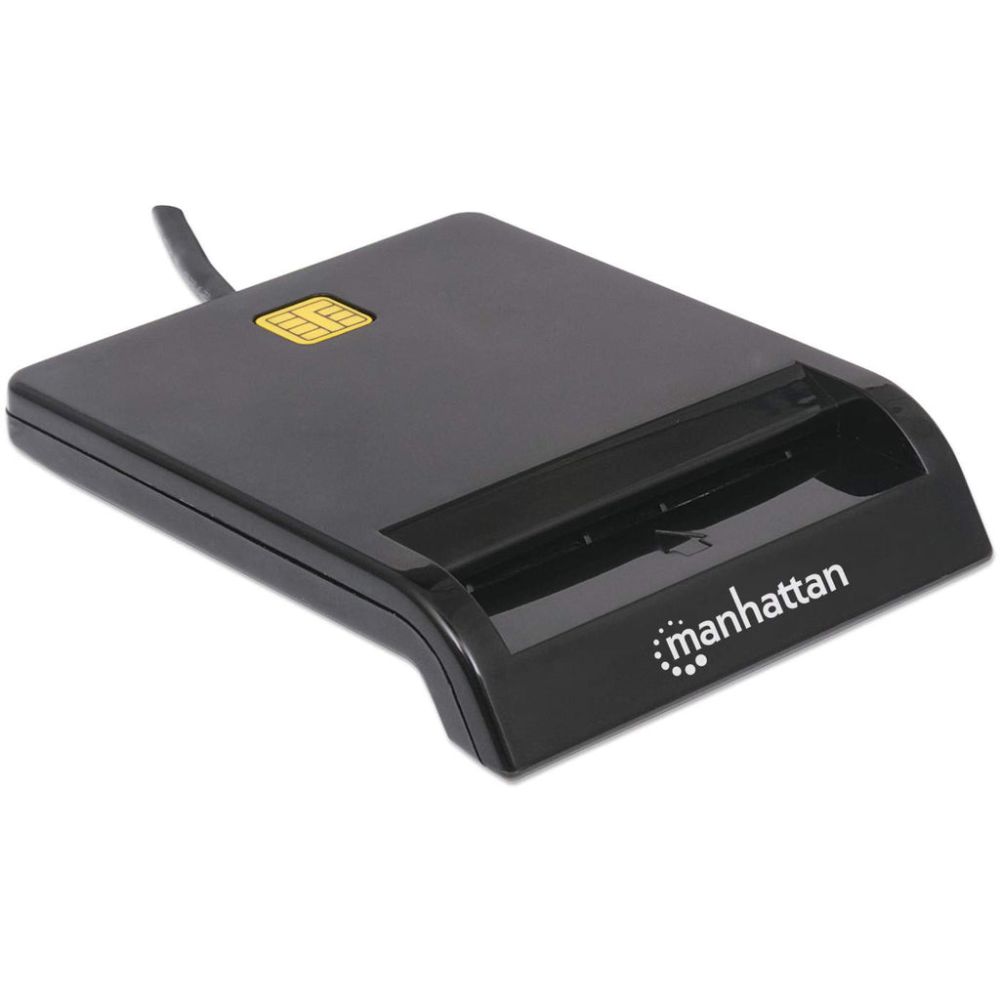

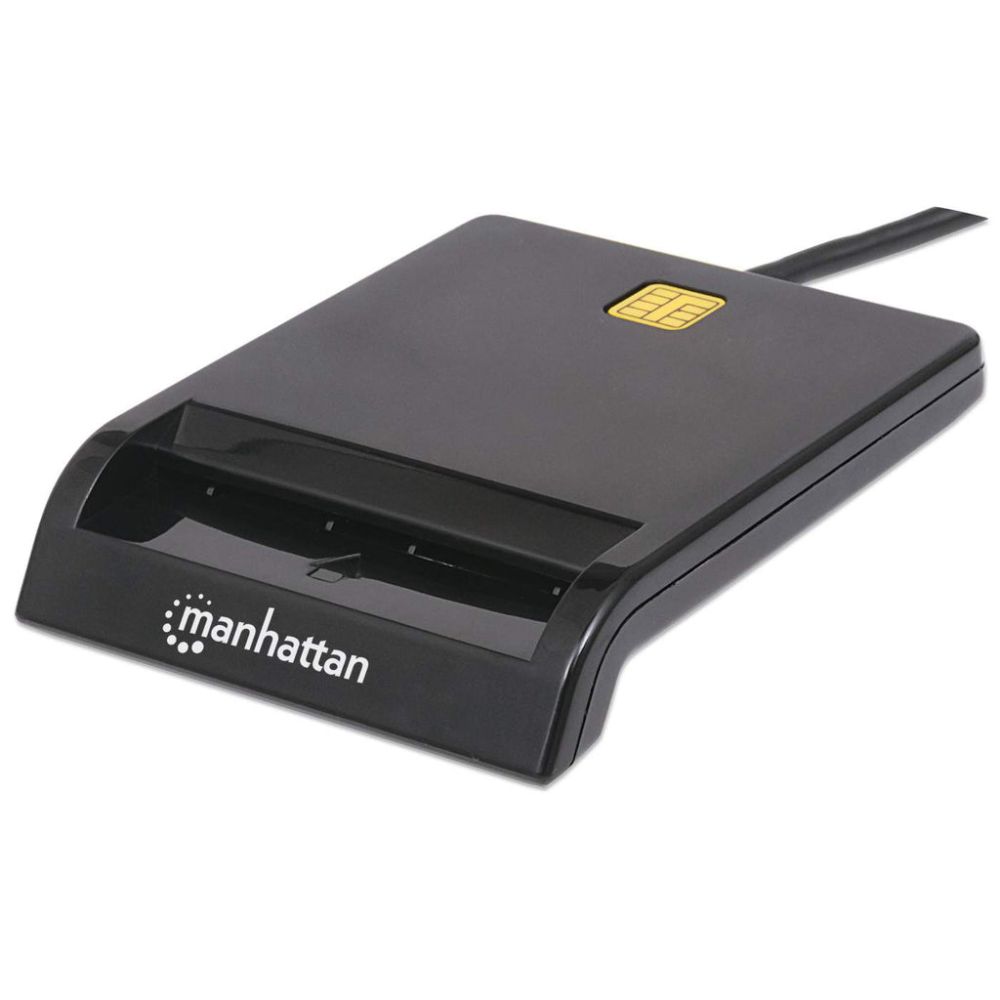

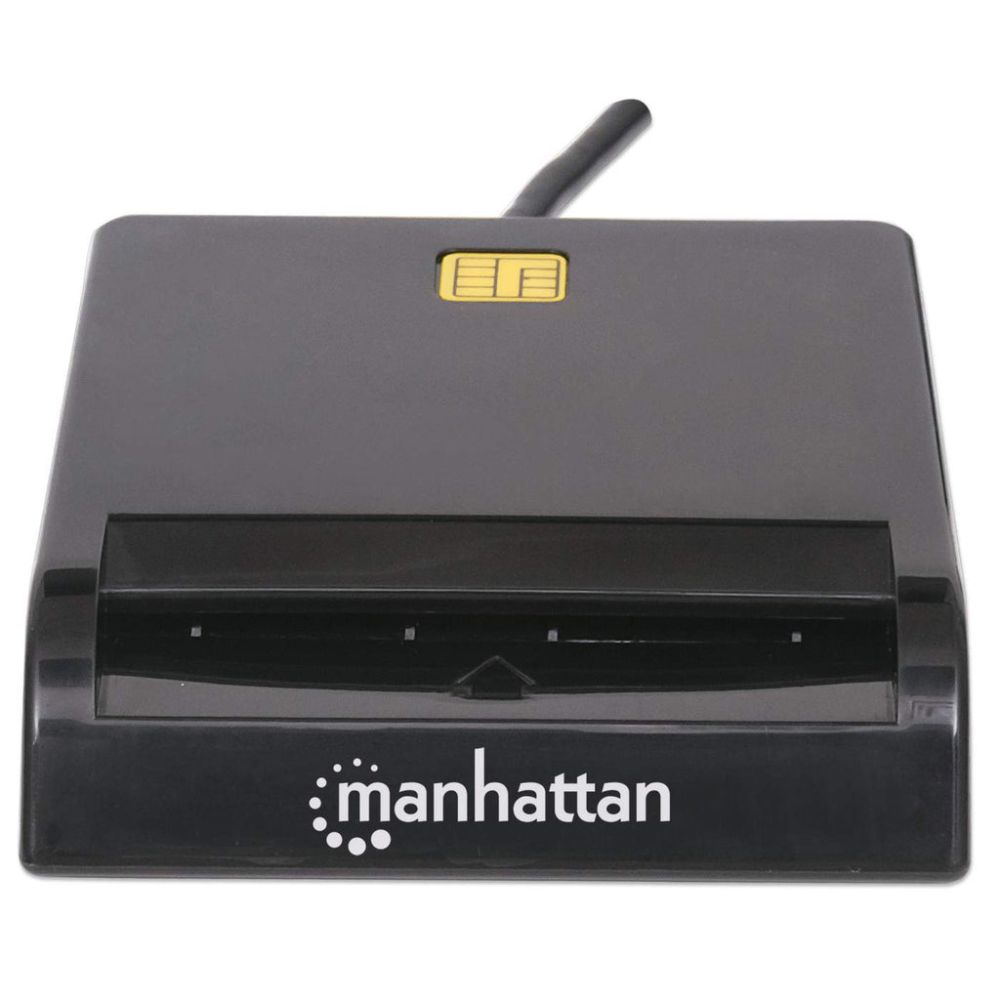

Product information for Manhattan 102049:
Secure data transmission and access control
Smart card technology can be found in numerous applications today: in security, financial transactions, medicine, retail loyalty programs, toll stations, time recording and much more . Contact-based chip cards can simply be inserted into the Manhattan smart card reader and the stored data can be reliably exchanged between the card and the host PC. This offers significantly more security and protection than cards with magnetic stripes.
Quick and easy installation

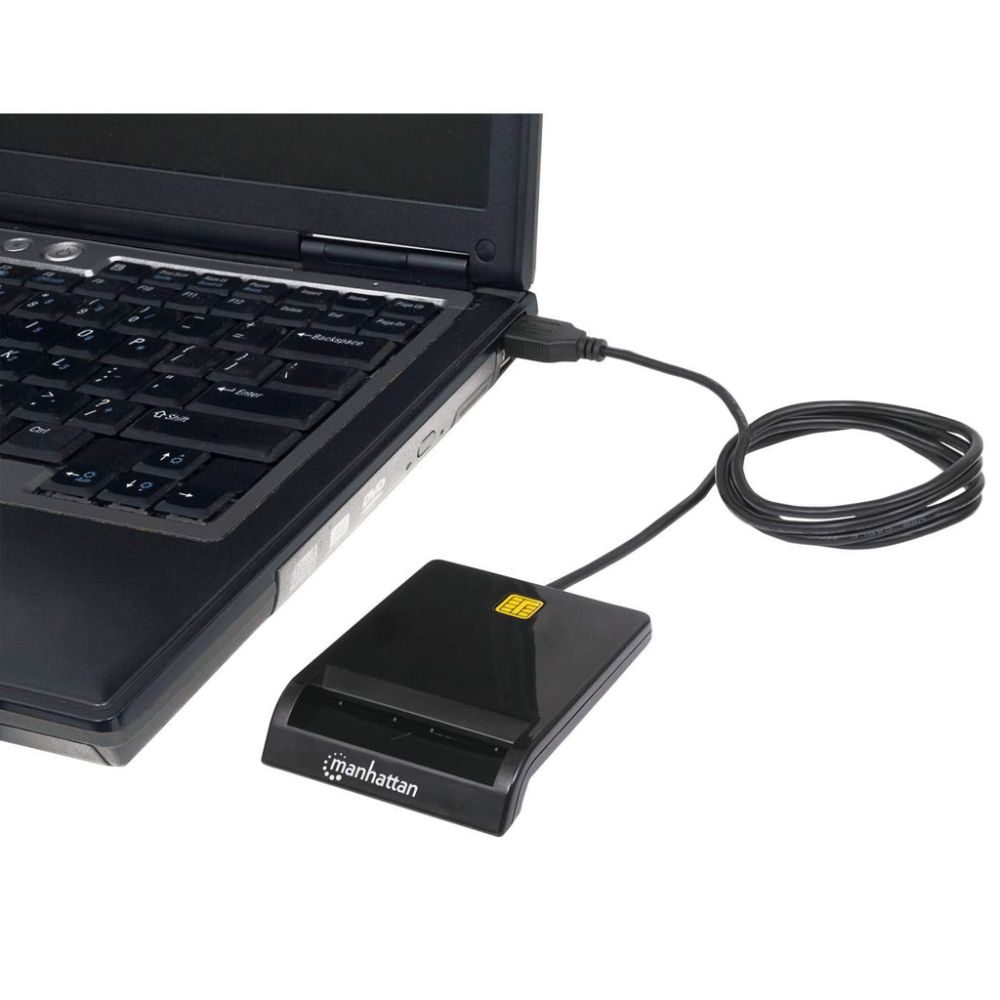

The Manhattan smart card reader is installed easily via the USB port . All common operating systems from Windows to MacOS to Linux are supported. Additional cables or an external power supply are not required. - Suitable for smart cards with a contact chip
Smart card technology can be found in numerous applications today: in security, financial transactions, medicine, retail loyalty programs, toll stations, time recording and much more . Contact-based chip cards can simply be inserted into the Manhattan smart card reader and the stored data can be reliably exchanged between the card and the host PC. This offers significantly more security and protection than cards with magnetic stripes.
Quick and easy installation
The Manhattan smart card reader is installed easily via the USB port . All common operating systems from Windows to MacOS to Linux are supported. Additional cables or an external power supply are not required. - Suitable for smart cards with a contact chip
- Ideal for transactions and applications with security-relevant transmissions
- For numerous application areas such as healthcare, online banking and much more
- Supports data transfer rates up to to 12 Mbit/s
- Quick and easy installation
- Requires adapter for reading SIM cards (not included)
- 3 year warranty Standards and certificates:
- FCC
- CE
- RoHS2
- USB 2.0
- CCID Physical details
- Integrated USB Type A -Cable: 1 m
- Net weight: 56 g
- Gross weight: 84 g
- Dimensions: 85 x 65 x 15 mm
- Housing: ABS plastic
- Chipset: RTS5169 General
- CPU card: conforms to ISO 7816-1, 2, 3, 4 (supports T=0 and T=1 protocols), PC/SC version 1.0/2.0 standard and EMV 4.1
- Memory card: Synchronous 2-line, 3-line, SLE4418, 4428, 4432, 4442, AT88SC1608, 45D041 and I2C interface
- PC/SC Compliant 1.0/2.0
- LED indicators for power and activity
- Power: USB 5V + 5%; Consumption, 60 mA max.
- Lifespan: approx. 200,000 reading cycles
- Ambient temperatures: Recommended for operation: 0 to 50°C; Recommended for storage: -35 to 70°C System requirements:
- USB-capable PC or Mac
- Windows XP/Vista/7/8.1/10/11 or Mac or Linux Scope of delivery
- Smart card reader
- Quick guide Color: Black Product dimensions: 85 x 65x15mm
| Design | |
| Placement supported | Indoor |
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| LED indicators | Activity, Power |
| Cable length | 1.05 m |
| Features | |
| Product type | Universal smart card reader |
| Application area | Banking & payments, Healthcare |
| Mean cycles between failures (MCBF) | 200000 |
| Plug and Play | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -35 - 70 °C |
| Packaging data | |
| Quick installation guide | |
| Ports & interfaces | |
| Interface | USB 2.0 |
| Compliance industry standards | 2-line, 3-line, SLE4418, 4428, 4432, 4442, AT88SC1608, 45D041, I2C |
| Power | |
| Power source | USB |
| Operating voltage | 5 V |
| USB powered | |
| Sustainability | |
| Sustainability certificates | RoHS |
| Certification | FCC EC RoHS2 usb2.0 CCID |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | |
| Mac compatibility | |
| Mac operating systems supported | |
| Technical details | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Weight & dimensions | |
| Width | 65 mm |
| Height | 15 mm |
| Depth | 85 mm |
| Weight | 60 g |
