Manhattan Logo

MANHATTAN 102025

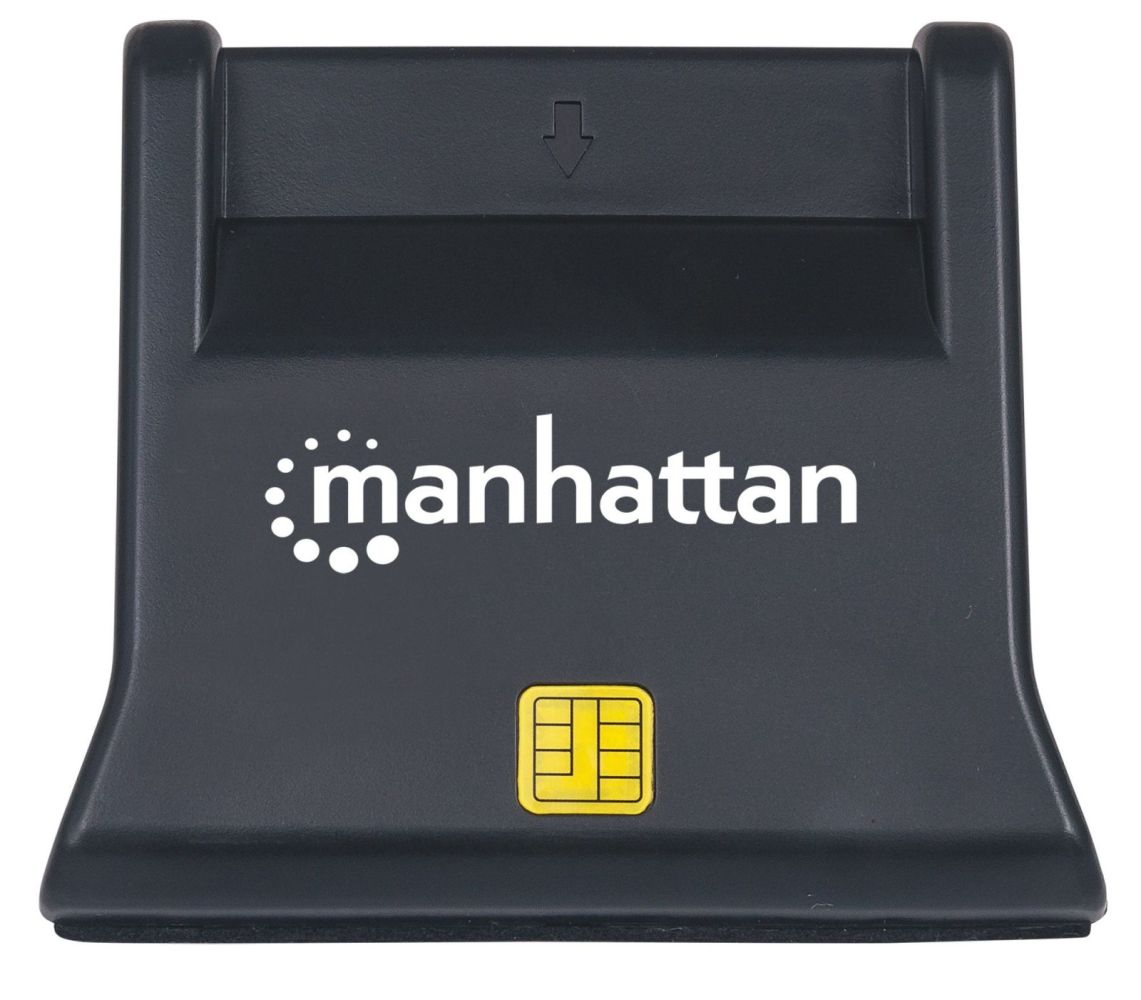

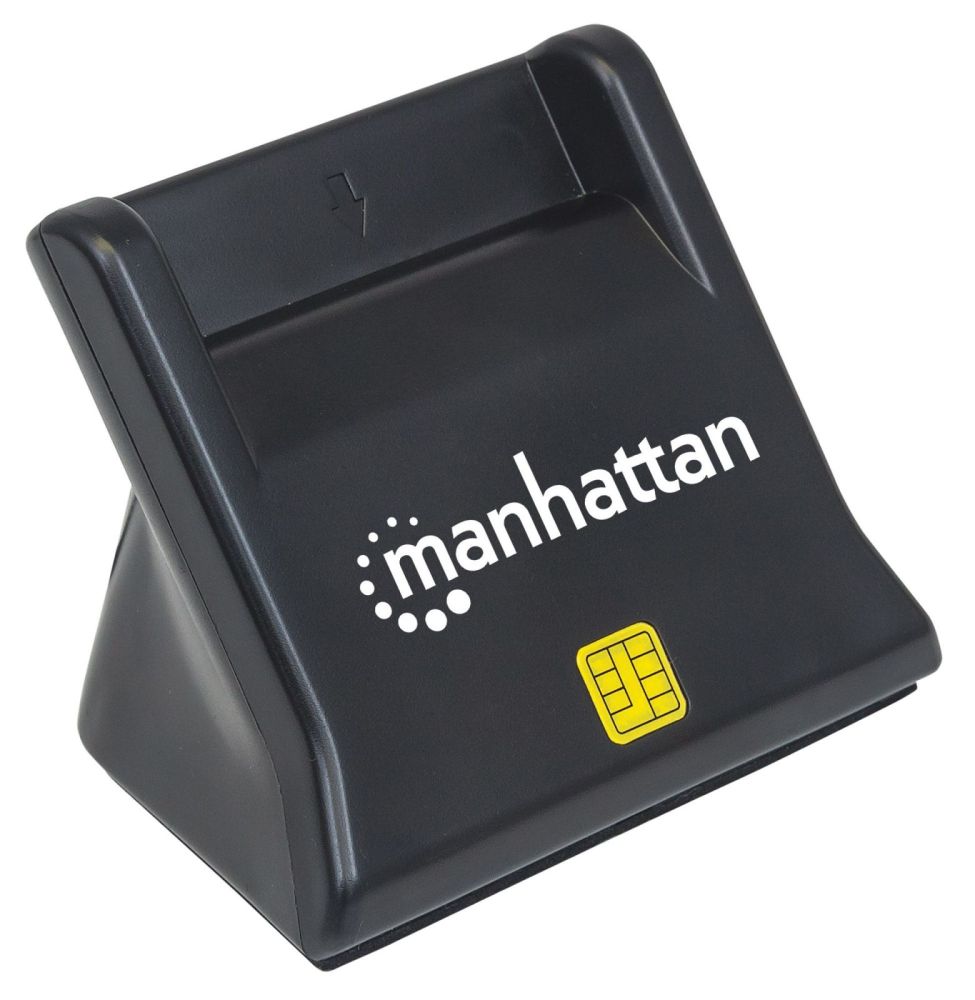

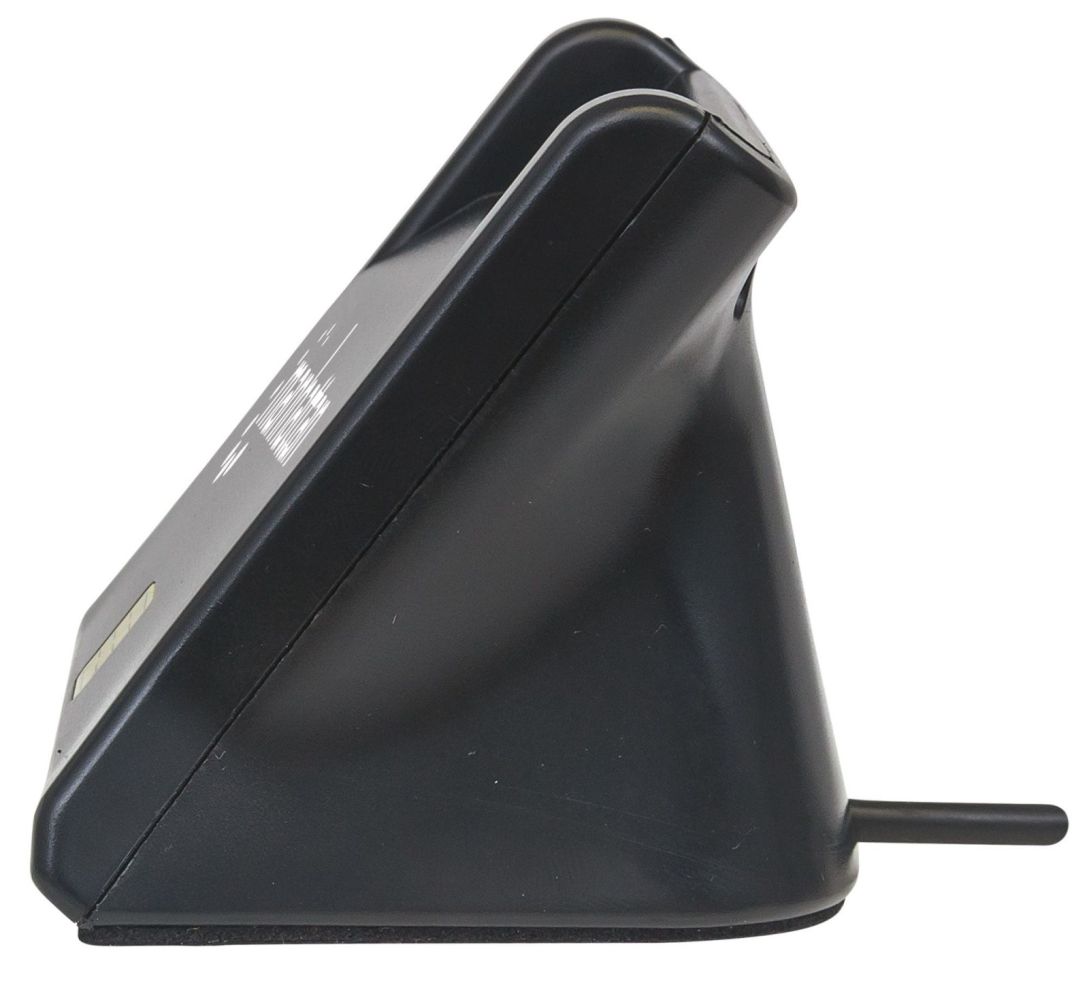

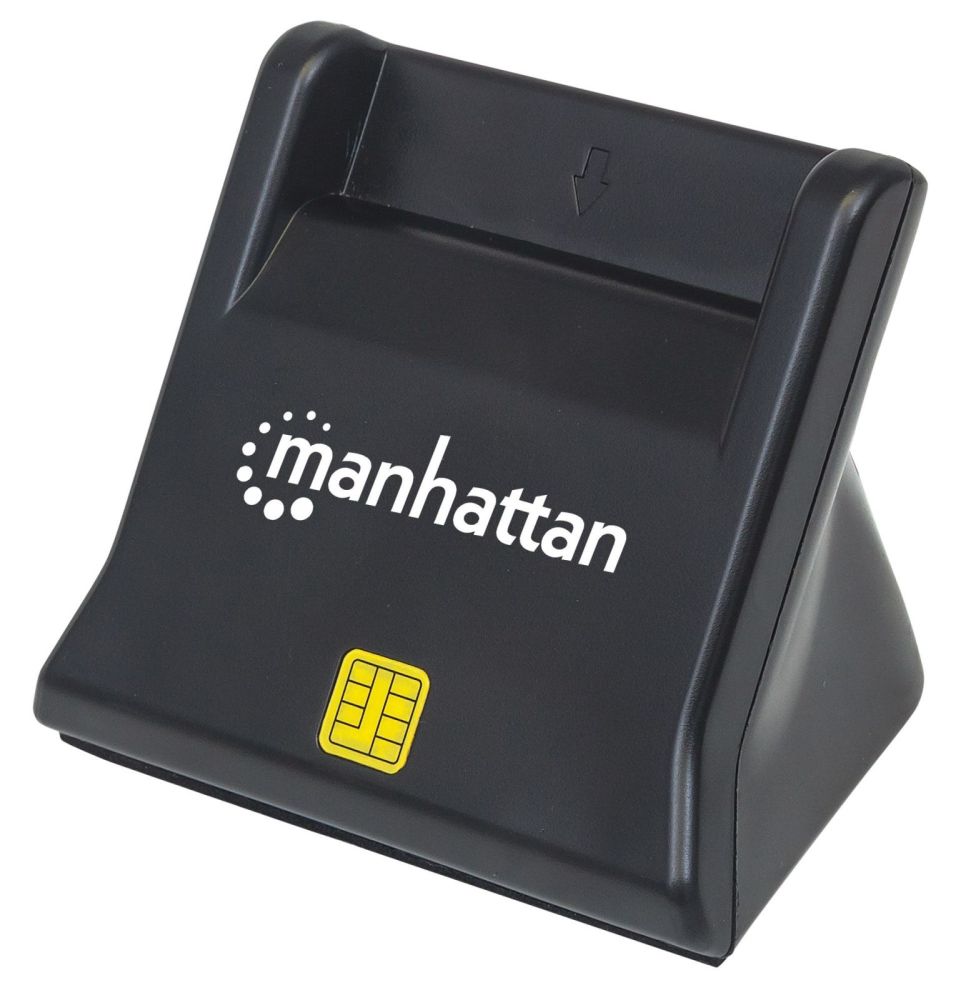

USB 2.0 smart card/SIM card reader with stand USB-A plug, contact reader, desktop, external, black

Your rating:
Average rating
Rating for MANHATTAN 102025 USB 2.0 smart card/SIM card reader with stand USB-A plug, contact reader, desktop, external, black
( 4.5 / 5 ) 50 ratings
10,42 EUR
( 12,40 EUR incl. VAT )
2025-09-13Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
1x MANHATTAN 102025 USB 2.0 smart card/SIM card reader with stand USB-A plug, contact reader, desktop, external, black
Lieske Part No.:1009611
Mfg Part No: 102025
UPC/EAN: 766623102025
Weight:0.06 kg

Product information for MANHATTAN 102025:

Secure data transmission and access control
Smart card technology can be found in numerous applications today: in security, financial transactions, medicine, retail loyalty programs, toll stations, time recording and much more . Contact-based chip cards can simply be inserted into the Manhattan smart card reader and the stored data can be reliably exchanged between the card and the host PC. This offers significantly more security and protection than cards with magnetic stripes.
Quick and easy installation

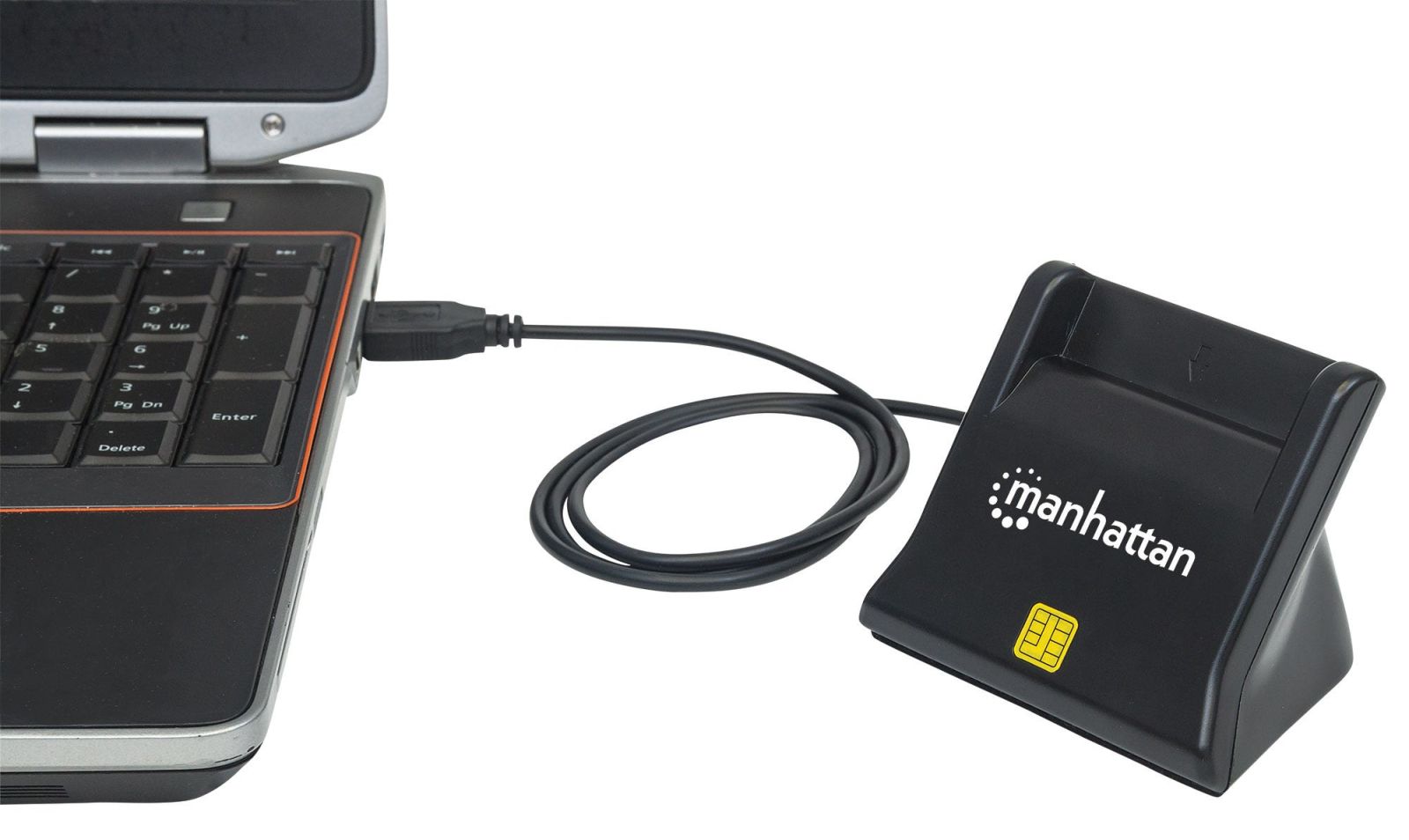

The Manhattan smart card reader is installed easily via the USB port as well as the software and driver from the product page. Windows and macOS are supported, additional cables or an external power supply are not required. - Compatible with smart cards/SIM cards with a contact chip
  • Ideal for transactions and applications with security-relevant transmissions
  • For numerous areas of application such as Healthcare, online banking, entertainment and much more
  • Supports host communication transfer rates of 480 Mbit/s
  • The robust design and stand make this device ideal for the desk
  • Plug < Play — quick and easy installation
  • Requires adapter for reading SIM -Cards (not included)
  • 3 year warranty Standards and certificates:
  • FCC
  • CE
  • RoHS2
  • USB 2.0
  • CCID Rev.1.1
  • EMV4.0
  • CAC
  • General
  • Supported cards: Smartcard / SIM (with SIM clamp)
  • Transfer rates memory cards: up to 480 MBit/s
  • CPU card: corresponds to ISO 7816-1, 2, 3, 4 (supports T=0 and T=1 protocols), PC/SC version 1.0/2.0 standard and EMV 4.0
  • memory card : Synchronous 2-line, 3-line, SLE4418, 4428, 4432, 4442, AT88SC1608, 45D041 and I2C Interface
  • PC/SC compliant 1.0/2.0, CT-API Software Library (SDK)
  • LED: power indicator, activity indicator
  • power : USB 5V + 5%; Consumption, 60 mA max.
  • Ports
  • Contact Smart / SIM card slot
  • Physical data
  • Integrated USB Type A cable: 0.9 m
  • Weight: 180 g
  • Dimensions: 63 x 81 x 63 mm
  • Housing: ABS plastic
  • Environmental conditions
  • Operating temperature: 0 – 40°C
  • Storage temperature: -20 – 60°C
  • Humidity (non-condensing): 0 - 96%
  • System requirements:
  • Windows XP/Vista/7/8.1/10/11 or Mac OS 9 or higher or Linux
  • Scope of delivery:

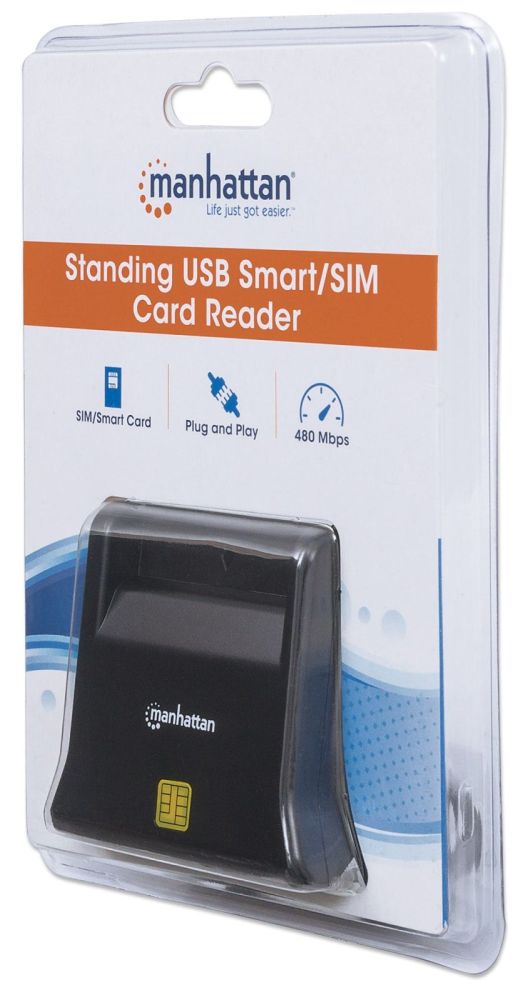

  • USB smart card/SIM card reader with stand
  • Quick guide Color: Black Product dimensions: 63 (L) x 81 (W) x 63 (H) [mm]
