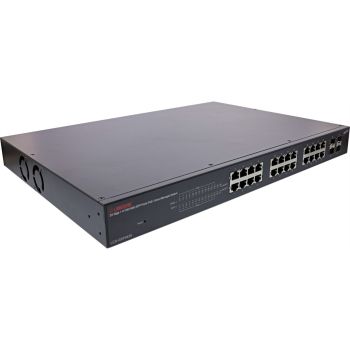

Switch 440mm Longshine LCS-GSP9428 24*GE POE+/4*SFP retail content_copy

The Gigabit PoE+ Smart Managed Switch is equipped with 24 gigabit RJ45 ports and 4 SFP slots. Theswitch supports high performance, enterprise-level security control & QoS Layer 2 managementfeatures. It supports the PoE+ (802.3af/at) standard and provides power to connected PD devices viaCAT 5 twisted cables. With a total PoE power budget is 370W, up to 30W per port. The LCSGSP9428can easy connect the high-powered devices such as Wireless AP, IP Cameras or VoIPPhones.
The WebGUI control each port status and bandwidth control by port rate limiting. The Storm Controlfeature protects against Broadcast, Multicast and Unicast Storm. The rich Quality of Service (QoS) &VLAN provides enhanced traffic management capabilities to move your data smoother and faster. Thedevice supports a complete line up of layer 2 features, including 802.1Q tag VLAN, Port Isolation, PortMirroring, STP/RSTP, Link Aggregation Group and 802.3x Flow Control function. It also supportsSNMP management functions.
The switch complies with IEEE802.3az Energy Efficient Ethernet to save power consumption, SupportIGMP Snooping function to improve traffic performance.
KEY FEATURES24 * RJ-45 ports for PoE+ 10/100/1000Mbps connectivity
4* SFP ports for 100/1000Mbps Fiber connectivity
Complies with IEEE802.3, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3af/at Ethernet standards
Supports IEEE802.3x Flow Control and Back-Pressure control
Supports STP & RSTP
Supports LLDP Discovery
Supports VLAN : Static, Port Based, Tag Based, Voice OUI mode
Supports QoS : CoS, DSCP, CoS-DSCP, IP Precedence
Supports Security : Management Service (Telnet, HTTP, HTTPS, SNMP), Protected Port, Storm Control, DoS attack prevention
Supports Storm Filter (Broadcast, Unknown Multicast, Unknown Unicast)
Supports port based Ingress/Egress rate limit
Supports 8 queues is handled SP and WRR
Supports Jumbo Frame : 1518~10K Bytes
Supports 8 Link Aggregation Groups with Static & LACP types
Support port mirroring, Ping Testing, Copper Testing
Supports SNMP access control & trap event
Supports IGMP Snooping v2/v3
Supports IEEE802.3az EEE enable and disable
Supports Firmware upgrade and backup
Supports Configuration upgrade and backup
Supports per port PoE+ Power Budget Management
Total PoE power budget 370W
With Fan Design
PRODUCT SPECIFICATIONSStandard
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az, IEEE802.1p, IEEE802.3af/at standards
Interface
24 * 10/100/1000Mbps PoE+ RJ-45 NWay ports
4 * SFP 100/1000Mbps ports
1 * Reset to default setting button
Rich LED indicators
Power (Green)
System (Green)
Port: Link/Act(Green)
Port: PoE+ Link (Green)
MAC Address Table
8K
Jumbo Frame
9K Bytes
Buffer Memory
524.8K Bytes
Operating Temperature
0°- 50°C (32°- 122°F)
Operating Humidity
5% ~ 90% (non-condensing)
Dimension
441x 310x 45mm
Power Supply
Internal Switching Power Supply, 100~240VAC
Chipset
RTL8382M-VB-CG + RTL8218B-VC-CGx2 + RTL8214FC-VC-CG + PD69208x3 + PD69200

Technical data
Weight	5.331kg
Transmission speed	10/100/1000Mb/s
Managed	Full
Height packaging	0.095m
Packaging volume	0.0062m³
Design	Rack-Mount
Number of ports	24
Width packaging	0.410m
Length packaging	0.505m
PoE	PoE+
Operation temperature	0 to +50°C
Fibre optics	4x SFP
Type	19" switch
Fans

---
