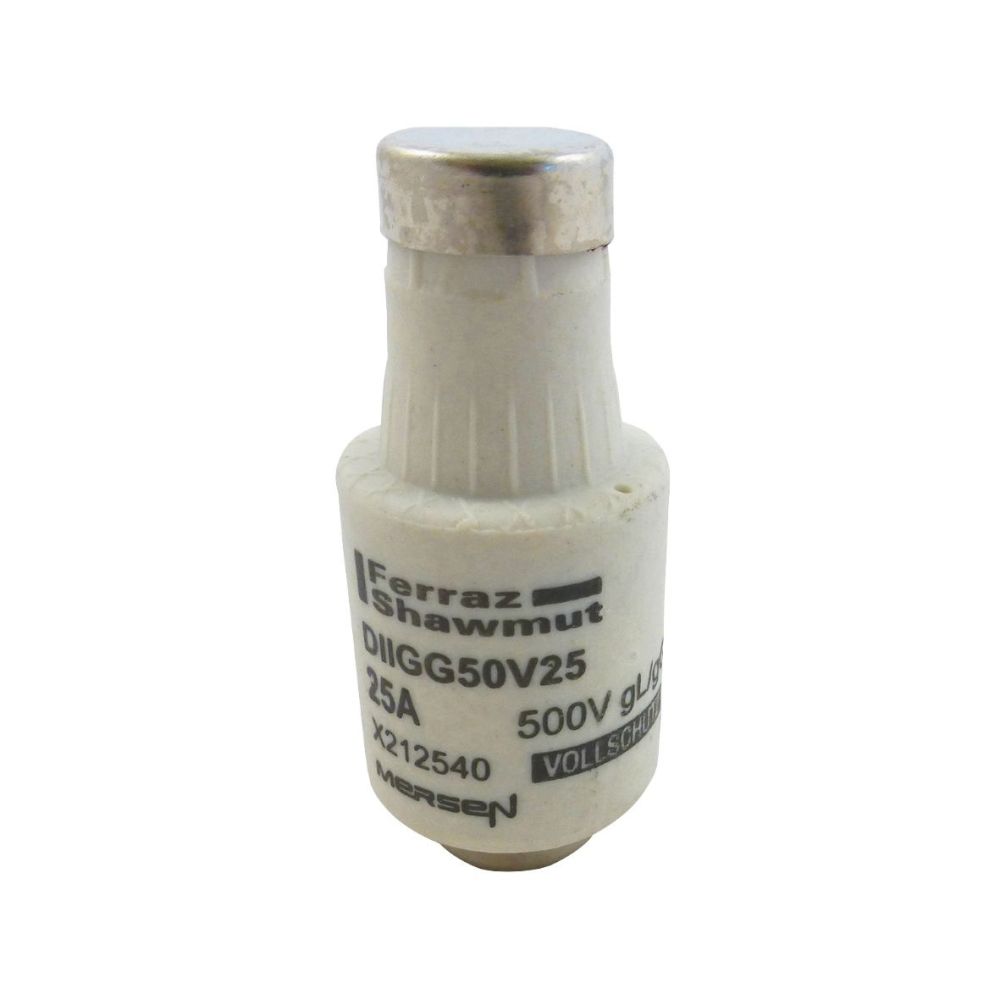

Lindner X212540 Mersen DIIGG50V25 fuse insert gG DII AC500 V 25 A yellow content_copy

The product is a D-fuse insert from manufacturer Lindner, type DIIGG50V25, used in low-voltage installations. It is a screw-type fuse system of the first generation, still widely used in many existing installations. The fuse protects electrical lines and systems against excessive overcurrents and short-circuit currents up to the rated switching current. The operating class gG ensures that the fuse can also withstand the electrodynamic effects of high short-circuit currents, which is important for the safety of devices and systems. The fuse complies with the standard DIN VDE 0636-30.

Applications
D-fuses are used in low-voltage installations where the fuse inserts are accessible to laypersons and can be replaced by them. This makes them particularly suitable for systems that require regular maintenance or quick restoration in case of faults. The fuse is part of the D-fuse system, which includes sizes NDZ, DII, DIII, DIV, and DV. It is used in installations requiring mechanical and electrical safety through the use of screw-type fuses.

Functions and Equipment in Detail
The fuse insert is designed for operation in low-voltage installations and safely interrupts excessive overcurrents and short-circuit currents. The operating class gG ensures that the fuse can handle electrodynamic stresses during high short-circuit currents. This protects connected electrical devices and systems from damage. The fuse is yellow in color, enabling visual identification and aiding maintenance.

Technology Explained Simply
The fuse operates on the principle of thermal and electromagnetic disconnection. In the event of an overcurrent or short circuit, the fuse wire is severed by the generated heat or magnetic effect, interrupting the circuit. The operating class gG means the fuse is designed for protecting lines and systems in low-voltage technology and can safely interrupt high short-circuit currents. The standard DIN VDE 0636-30 defines the requirements for the construction and operation of the fuse.

Compatibility and Accessories
The fuse insert is designed for use in D-fuse holders of size DII. It is compatible with other components of the D-fuse system, particularly holders and switches intended for size DII. The fuse is rated for an operating voltage of 500 V AC. The yellow color serves as visual identification and is part of the standardization within the D-fuse system.

Mounting and Installation
Mounting is done in a D-fuse holder of size DII. The fuse is inserted into the holder via a screw connection. Installation does not require special tools, as the fuse is simply screwed into the holder by turning. The fuse is designed so that it can also be replaced by persons without specialized electrical training, provided safety regulations are observed.

Advantages in Operation
The fuse provides reliable protection against overcurrents and short circuits. The operating class gG ensures high safety during high short-circuit currents. The yellow color facilitates identification and maintenance. The screw connection allows for easy replacement, even by non-specialized personnel, making maintenance and servicing of installations more efficient. The fuse is designed for use in low-voltage installations requiring high availability and safety.

The item price shown refers to 5 pieces Lindner X212540

General
Fuse type	D-system
Size	DII
Utilization category	gG
Nominal voltage	500 V
Nominal current	25 A
Colour	Yellow
Norm	DIN VDE 0636-30

---
