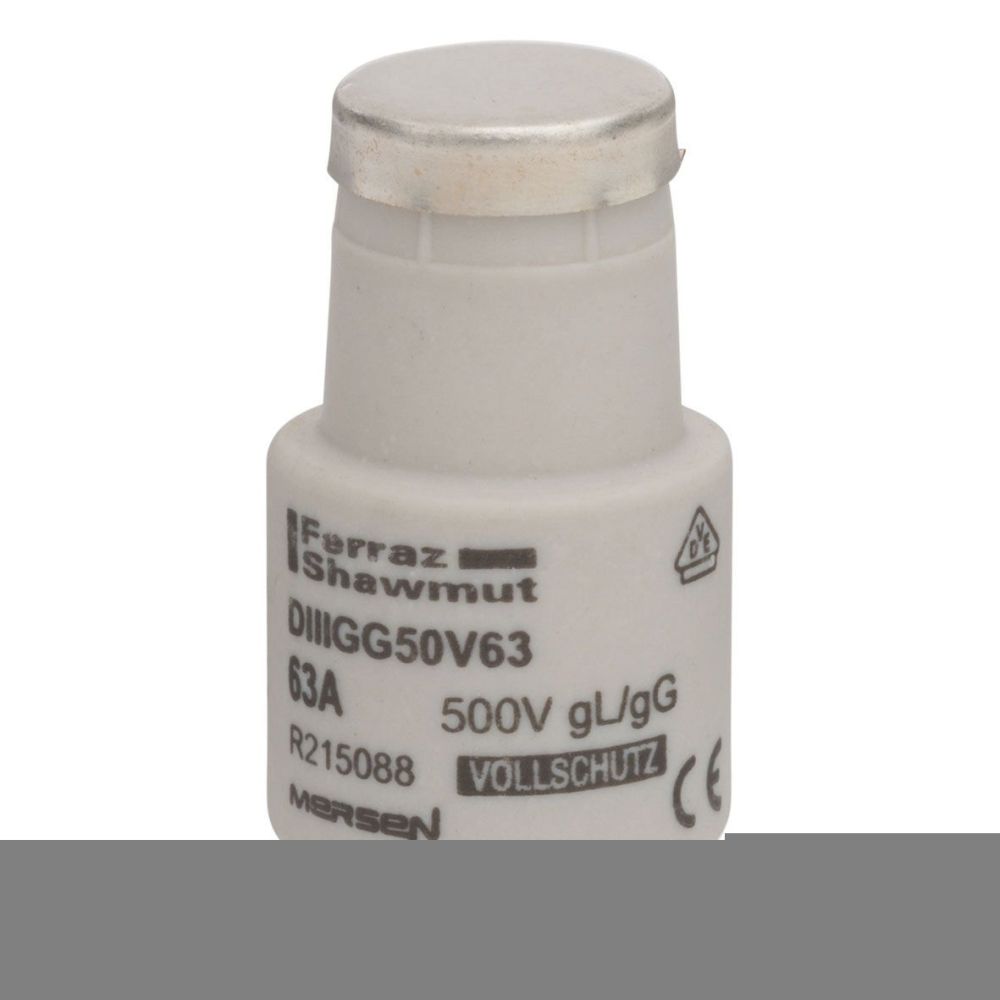

Lindner R215088 Mersen DIIIGG50V63 fuse insert gG DIII AC500V 63A copper content_copy

The product is a fuse insert of the D-fuse system, manufactured by Lindner, type DIIIGG50V63. It is a screw-type fuse system of the first generation, used in low-voltage installations, particularly where fuse inserts are accessible to laypersons and can be replaced by them. These fuses protect electrical lines and installations against unauthorized overcurrents and short-circuit currents up to the rated switching current. The operating class gG ensures that the fuse can also withstand the electromagnetic effects of high short-circuit currents, which is crucial for the safety of connected devices and installations. The standard DIN VDE 0636-30 forms the technical basis for the design and use of these fuse inserts.

Applications

The fuse insert is intended for use in low-voltage installations, particularly in areas where simple and safe replacement of fuse inserts is required. The D-fuse system includes various sizes, including NDZ, DII, DIII, DIV, and DV. The DIII type is specifically designed for applications requiring high mechanical stability and reliability. The fuse protects lines and electrical installations against overloads and short circuits, thereby preventing damage to devices and installations.

Functions and Equipment in Detail

The fuse insert is designed for an operating voltage of 500 V AC and has a rated current of 63 A. The operating class gG means that the fuse safely disconnects not only during overloads but also during high short-circuit currents. This is particularly important in installations where sudden current surges may occur, such as during the start-up of motors or other inductive loads. The fuse is made of copper, ensuring high electrical conductivity and heat dissipation. The design allows for secure mounting in D-fuse sockets and switches, which are also part of the D-system.

Technology Explained Simply

The fuse operates on the principle of thermal and electromagnetic disconnection. During an overcurrent, the fuse element, made of a special copper alloy, heats up and melts, interrupting the circuit. During high short-circuit currents, electromagnetic force is additionally used to accelerate the disconnection process. The standard DIN VDE 0636-30 defines the requirements for electrical and mechanical properties to ensure uniform quality and safety.

Compatibility and Accessories

The fuse insert is compatible with D-fuse sockets and switches of the DIII size series. It can be used in installations already employing the D-fuse system and thus serves as a replacement part for existing installations. Use in other fuse sizes (such as DII, DIV) is not intended. There are no specific accessories directly associated with this fuse insert, as it functions as a standard component within the D-system. Installation is carried out via screw connection into the corresponding fuse sockets.

Installation and Mounting

Installation is performed by inserting the fuse insert into the D-fuse socket, which is mounted in an enclosure or fuse box. The connection is made via screw terminals, with electrical contacts secured by the screw connection. After installation, the fuse must be checked to ensure it is securely seated and the circuit is properly closed. Installation does not require special tools, although using an appropriate screwdriver is recommended to ensure a secure connection.

Advantages in Operation

The fuse provides high reliability in disconnecting overcurrents and short circuits. The operating class gG ensures safe disconnection even during high short-circuit currents, enhancing the safety of the installation. The use of copper as the material ensures good electrical conductivity and heat dissipation, extending the fuse's service life. The simple replaceability allows for quick maintenance and repair without requiring specialized expertise. The fuse is therefore particularly suitable for installations requiring high availability and rapid maintenance.

The item price shown refers to 5 pieces Lindner R215088

General
Utilization category	gG
Nominal voltage	500 V AC
Nominal current	63 A
Fuse size range	DIII
Material	Copper
Norm	DIN VDE 0636-30

---
