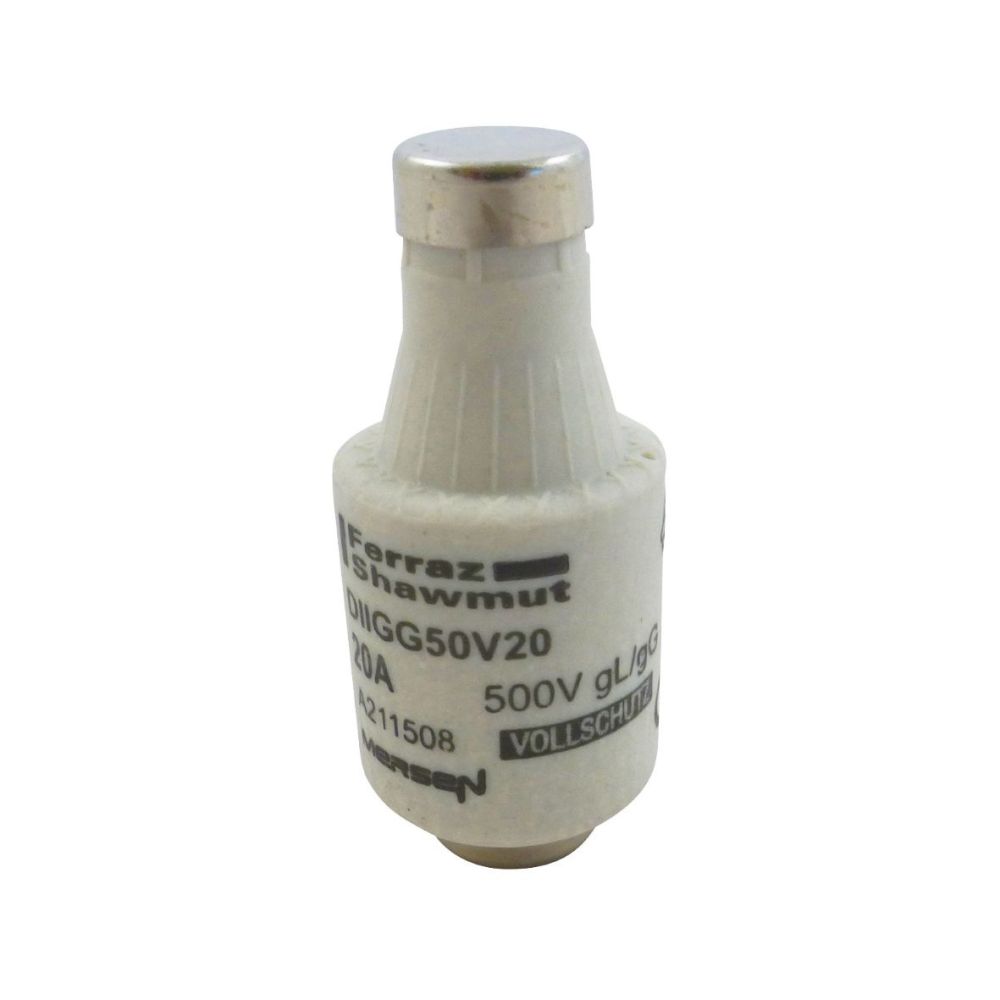

Lindner A211508 Mersen DIIGG50V20 fuse insert gG DII AC500 V 20 A blue content_copy

The article is a D-fuse insert from manufacturer Lindner, type DIIGG50V20, used in low-voltage installations. It is a screw-type fuse system of the first generation, still widely used in many existing installations. The fuse is designed for use in installations where the fuse inserts are accessible to non-specialists and can be replaced by them. The D-fuse range includes various sizes, including NDZ, DII, DIII, DIV, and DV. The primary purpose is to protect electrical lines and installations against excessive overcurrents and short-circuit currents up to the rated switching current. The fuse belongs to the operating class gG, meaning it also covers the electrodynamic effects of high short-circuit currents on electrical devices and installations. Standardization is according to DIN VDE 0636-30.

D-fuse system is a proven method for protecting electrical installations, characterized by its mechanical screw connection. Fuse inserts are available in various sizes and rated currents, with the present article covering size DII with a rated current of 20 amperes. The blue color indicates the rated current class according to standardization. The fuse is designed for an operating voltage of 500 volts AC, making it suitable for use in industrial and commercial installations.

Functions and equipment in detail include the ability to safely interrupt excessive overcurrents and short-circuit currents. The operating class gG ensures that the fuse protects not only thermally but also mechanically against electrodynamic forces during high short-circuit currents. This is particularly important in installations where sudden current surges may occur, such as during motor start-up or short circuits. The fuse is thus an integral part of electrical protection technology.

Technology explained simply means that the fuse interrupts the circuit by a thermal or electromagnetic reaction when a critical current value is reached. The screw connection allows for easy installation and maintenance, with the fuse inserted into the fuse holder by turning the screws. Materials are selected to meet the requirements of DIN VDE 0636-30, including thermal and mechanical load capacity.

Compatibility and accessories refers to use in D-fuse holders of size DII. The fuse is specifically designed for this holder and cannot be used in other sizes or systems. The blue color serves as a visual indicator of the rated current class, enabling quick and safe replacement.

Mounting and installation are carried out by inserting the fuse into the corresponding D-fuse holder of size DII. The screw connection is tightened using an appropriate tool, ensuring the specified torque value is observed to guarantee a secure connection. The fuse is intended for use in low-voltage installations installed according to applicable standards.

Advantages in operation include reliability and easy handling. The fuse can also be replaced by non-specialists, as it is easily accessible and does not require special tools. The operating class gG provides comprehensive protection, covering both thermal and mechanical stresses. Standardization according to DIN VDE 0636-30 ensures compliance with safety standards.

The item price shown refers to 5 pieces Lindner A211508

General
Fuse type	D-system
Size	DII
Utilization category	gG
Nominal current	20 A
Operating voltage	500 V
Colour	Blue

---
