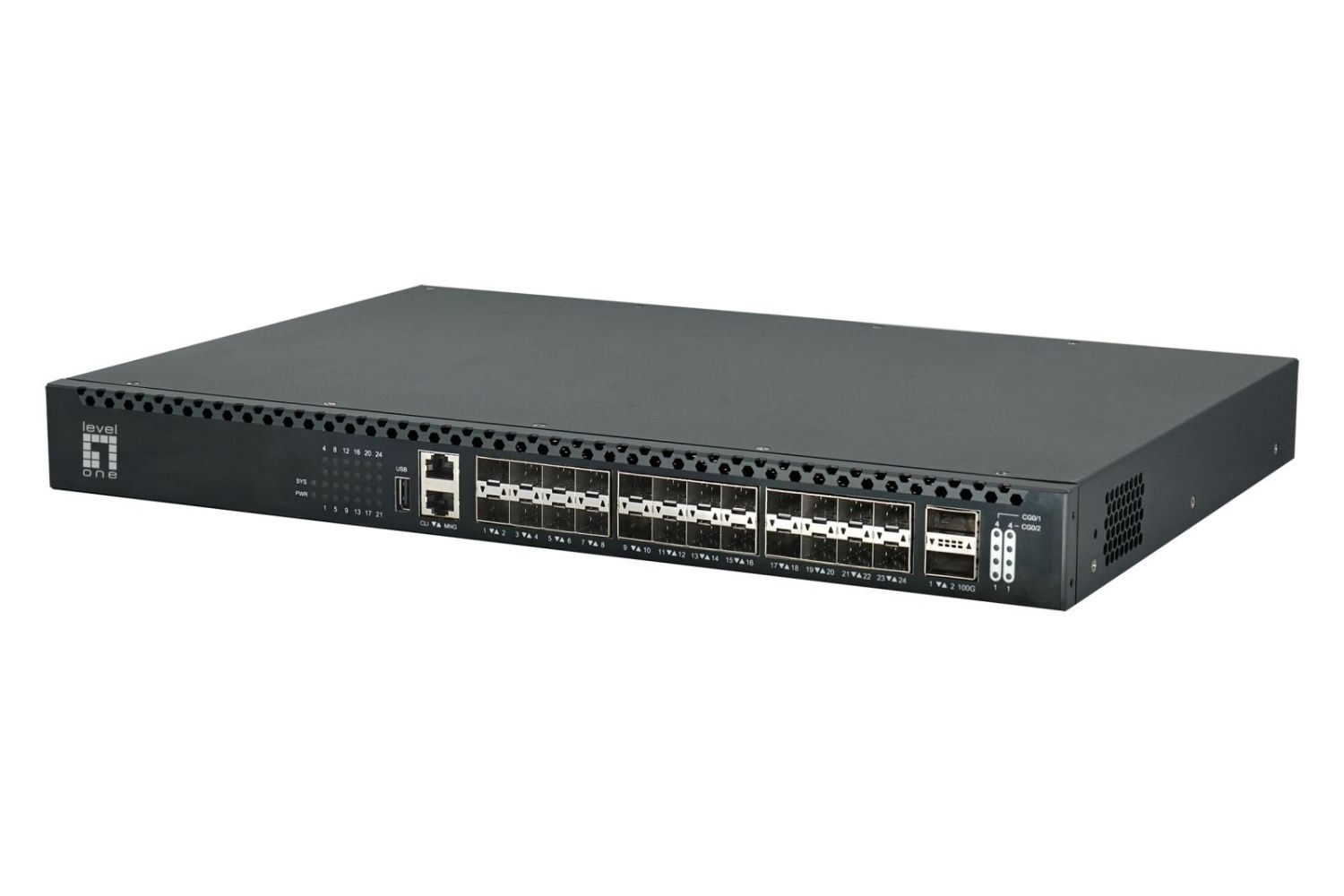

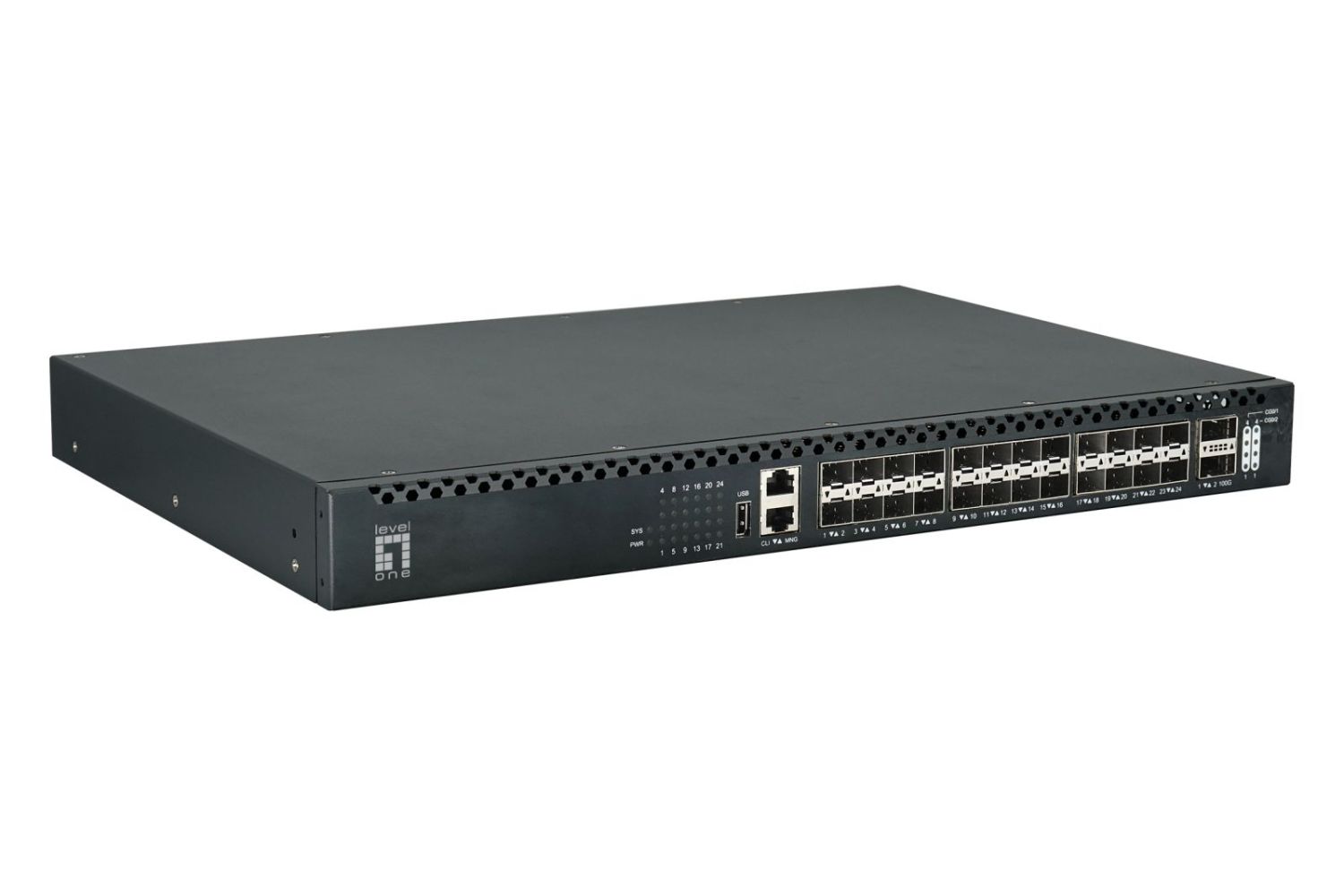

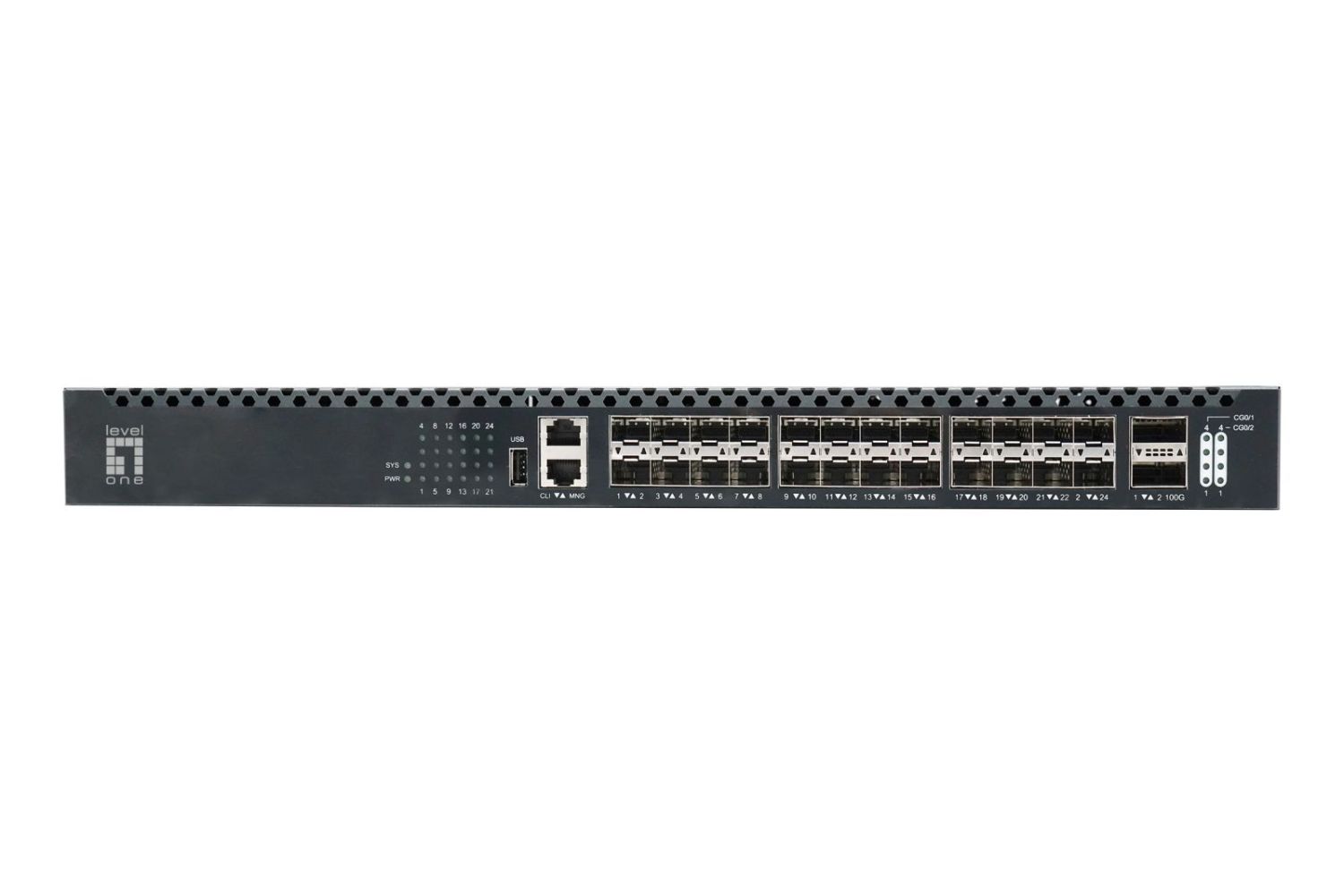

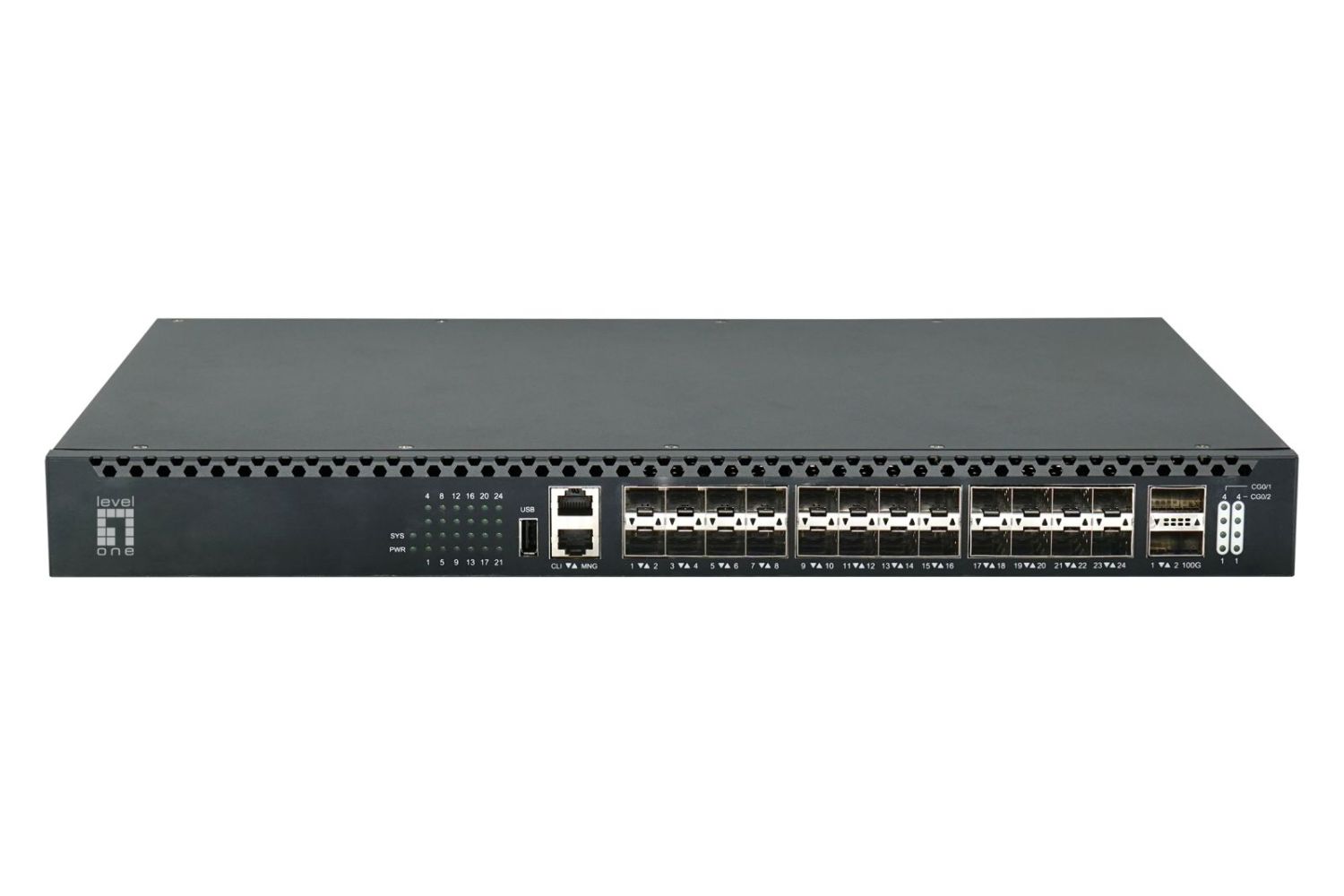

LevelOne XQS-3126 Switch 24x10G SFP+/2x100G QSFP+
TOR 48,3 cm ( 19 inch ) Managed L3
|
1.293,94 EUR |
|
|
( 1.539,79 EUR incl. VAT ) ≈ £1,089.50 | ≈ $1,453.09 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1112262 |
| Mfg Part No: | XQS-3126 |
| UPC/EAN: | 4015867238479 |
| Weight: | 7 kg |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), RoHS, UKCA |
| Data transmission | |
| Switching capacity | 880 Gbit/s |
| Forwarding rate | 660 Mpps |
| MAC address table | 128000 entries |
| Jumbo frames | 16000 |
| Packet buffer memory | 4.5 MB |
| Jumbo frames support | |
| Path MTU discovery | |
| Design | |
| Product colour | Black |
| Rack mounting | |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 605 mm |
| Master (outer) case length | 462 mm |
| Master (outer) case height | 215 mm |
| Harmonized System (HS) code | 851762 |
| Master (outer) case gross weight | 15.7 kg |
| Products per master (outer) case | 2 pc(s) |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic classification | |
| Multicast features | |
| Multicast features | Multicast traffic suppression |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1AE, IEEE 802.1D, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ah, IEEE 802.3az |
| Virtual LAN features | Private VLAN, Protocol-based VLAN |
| Number of VLANs | 4000 |
| VLAN mapping type | 1:1 VLAN mapping, N:1 VLAN mapping |
| 10G support | |
| Policy-based routing | |
| Link aggregation | |
| Spanning tree protocol | |
| MAC address auto-learning supported | |
| MAC address auto-aging supported | |
| Ethernet Ring Protection Switching (ERPS) | |
| Fast leave | |
| 6to4 tunnel | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 238.91 BTU/h |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Rack mount kit | |
| Packaging data | |
| Package width | 576 mm |
| Package depth | 448 mm |
| Package height | 94 mm |
| Package weight | 7.45 kg |
| Rubber feet | |
| Performance | |
| Internal memory | 2048 MB |
| Flash memory | 4096 MB |
| Noise level | 57 dB |
| Mean time between failures (MTBF) | 200000 h |
| sFlow | |
| Manually configured tunnel | |
| Fanless | |
| Ports & interfaces | |
| SFP+ module slots quantity | 24 |
| Number of management ports | 1 pc(s) |
| Console port | RJ-45 |
| QSFP28 ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | |
| Power | |
| Power source | AC |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 Hz |
| Power consumption (typical) | 26 W |
| Power consumption (max) | 64 W |
| Power supply included | |
| Redundant power supply (RPS) support | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Routing protocols | BGP, BGP4+, HSRP, MPLS, OSPF, OSPFv3, RIP-1, RIP-2, RIPng, VRRP |
| GARP VLAN Registration Protocol (GVRP) | |
| Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) | |
| Security | |
| DHCP features | DHCP Option 82, DHCP snooping |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR), Weighted random early detection (WRED) |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| BPDU filtering/protection | |
| IP-MAC-Port binding | |
| Root protection | |
| DoS attack prevention | |
| Technical details | |
| Master (outer) cases per pallet (air) | 18 pc(s) |
| Pallet gross length | 100 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 164.9 cm |
| Weight & dimensions | |
| Width | 442.5 mm |
| Depth | 300 mm |
| Height | 44.5 mm |
| Weight | 4.25 kg |
Questions & answers
What is the delivery time of LevelOne XQS-3126 Switch 24x10G SFP+/2x100G QSFP+ TOR 48,3 cm ( 19 inch ) Managed L3 ?
The article LevelOne XQS-3126 Switch 24x10G SFP+/2x100G QSFP+ TOR 48,3 cm ( 19 inch ) Managed L3 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne XQS-3126 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne XQS-3126 Switch 24x10G SFP+/2x100G QSFP+ TOR 48,3 cm ( 19 inch ) Managed L3 always at the best possible price. We can give you a discount of 2% on LevelOne XQS-3126 Switch 24x10G SFP+/2x100G QSFP+ TOR 48,3 cm ( 19 inch ) Managed L3 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
