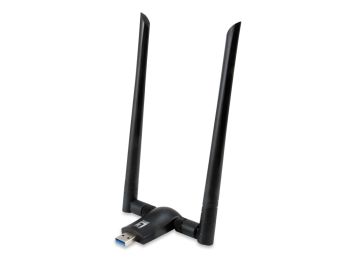

LevelOne Dual Band Wireless USB Network Adapter 1-13 Channel
|
25,01 EUR 25,49 EUR |
|
|
( 29,76 EUR incl. VAT ) ≈ £21.06 | ≈ $28.09 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1011322 |
| Mfg Part No: | WUA-1810E |
| UPC/EAN: | 4015867202043 |
| Weight: | 0.1 kg |
| Design | |
| Product colour | Black |
| Antenna design | External |
| Chipset | RTL8812BU |
| LED indicators | Status |
| Country of origin | China |
| Receiver sensitivity | 11n:-68dBm@130M-68dBm@108M 11g:-69dBm@54M 11b:-85dBm@11M 11ac:-59dBm@867M |
| Certification | CE, LVD, RED |
| Internal | |
| Antenna | |
| Plug and Play | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Maximum data transfer rate | 867 Mbit/s |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 1,2,5.5,6,9,11,12,18,24,36,48,54,130,300,867 Mbit/s |
| Modulation | DSSS, OFDM |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA-TKIP, WPA2-PSK, WPA2-TKIP |
| Channels quantity (EU) | 13 channels |
| MU-MIMO | 2 |
| Bandwidth (first) | 2.4 GHz |
| Bandwidth (second) | 5 GHz |
| Maximum operating distance | 10 m |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Other features | |
| Gain | 5 dBi |
| Antennas quantity | 2 |
| Cable length | 0.7 m |
| Detachable antenna(s) | |
| Packaging content | |
| Cables included | USB |
| Resource CD | |
| Quick installation guide | |
| Manual | |
| Packaging data | |
| Package type | Box |
| Package width | 103 mm |
| Package depth | 206 mm |
| Package height | 39 mm |
| Package weight | 170 g |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Input current | 0.5 A |
| Output voltage | 5 V |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 8, Windows 8 E |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
| Linux operating systems supported | |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 26.5 mm |
| Depth | 62.5 mm |
| Height | 14.6 mm |
| Weight | 110 g |
Questions & answers
What is the delivery time of LevelOne Dual Band Wireless USB Network Adapter 1-13 Channel?
The article LevelOne Dual Band Wireless USB Network Adapter 1-13 Channel is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne WUA-1810E to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne Dual Band Wireless USB Network Adapter 1-13 Channel always at the best possible price. We can give you a discount of 2% on LevelOne Dual Band Wireless USB Network Adapter 1-13 Channel if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
