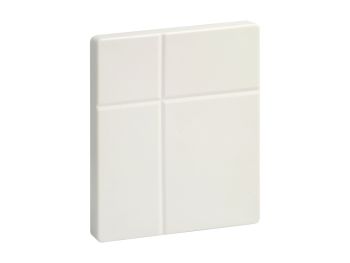

LevelOne antenna panel directional dual-polarization 5GHz
|
191,64 EUR |
|
|
( 228,05 EUR incl. VAT ) ≈ £160.40 | ≈ $214.45 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1227258 |
| Mfg Part No: | WAN-9151 |
| UPC/EAN: | 4015867203583 |
| Weight: | 0.208 kg |
| Features | |
| Antenna type | Directional antenna |
| Antenna connector type | N-type |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0 |
| Product colour | Grey |
| Protection features | Dust resistant, Snow resistant, Water resistant |
| Survival wind speed | 180 km/h |
| Purpose | Indoor & outdoor |
| Maximum cable loss with connectors | -10 dB |
| Logistics data | |
| Harmonized System (HS) code | 85177100 |
| Country of origin | Taiwan |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 340 mm |
| Master (outer) case gross weight | 15.5 kg |
| Products per master (outer) case | 20 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Packaging content | |
| Mounting kit | |
| Quick installation guide | |
| Packaging data | |
| Package width | 161 mm |
| Package depth | 218 mm |
| Package height | 74 mm |
| Package weight | 726 g |
| Package type | Box |
| Performance | |
| Frequency band | 5.1 ~ 5.9 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Impedance | 50 Ω |
| Horizontal beam width | 22° |
| Vertical beam width | 15° |
| Antenna gain level (max) | 15 dBi |
| Weight & dimensions | |
| Width | 137.5 mm |
| Depth | 162.5 mm |
| Height | 16 mm |
| Weight | 208 g |
Questions & answers
What is the delivery time of LevelOne antenna panel directional dual-polarization 5GHz?
The article LevelOne antenna panel directional dual-polarization 5GHz is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne WAN-9151 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne antenna panel directional dual-polarization 5GHz always at the best possible price. We can give you a discount of 2% on LevelOne antenna panel directional dual-polarization 5GHz if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
