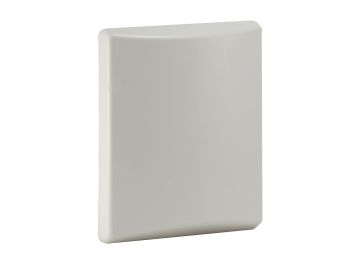

LevelOne antenna panel directional indoor/outdoor 2.4GHz 12dBi
|
92,92 EUR |
|
|
( 110,57 EUR incl. VAT ) ≈ £77.77 | ≈ $103.98 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1227272 |
| Mfg Part No: | WAN-2121 |
| UPC/EAN: | 4015867203538 |
| Weight: | 0.802 kg |
| Features | |
| Antenna type | Directional antenna |
| Antenna connector type | N-type |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0 |
| Product colour | Grey |
| Protection features | Dust resistant, Snow resistant, Water resistant |
| Survival wind speed | 180 km/h |
| Purpose | Indoor & outdoor |
| Maximum cable loss with connectors | -10 dB |
| Logistics data | |
| Harmonized System (HS) code | 85177100 |
| Country of origin | Taiwan |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 460 mm |
| Master (outer) case height | 390 mm |
| Master (outer) case gross weight | 17 kg |
| Products per master (outer) case | 20 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Packaging content | |
| Mounting kit | |
| Quick installation guide | |
| Packaging data | |
| Package width | 185 mm |
| Package depth | 85 mm |
| Package height | 85 mm |
| Package weight | 790 g |
| Package type | Box |
| Performance | |
| Frequency band | 2.4 GHz |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Impedance | 50 Ω |
| Horizontal beam width | 50.1° |
| Vertical beam width | 39.1° |
| Antenna gain level (max) | 12 dBi |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 166 mm |
| Height | 30 mm |
| Weight | 304 g |
Questions & answers
What is the delivery time of LevelOne antenna panel directional indoor/outdoor 2.4GHz 12dBi?
The article LevelOne antenna panel directional indoor/outdoor 2.4GHz 12dBi is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne WAN-2121 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne antenna panel directional indoor/outdoor 2.4GHz 12dBi always at the best possible price. We can give you a discount of 2% on LevelOne antenna panel directional indoor/outdoor 2.4GHz 12dBi if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
