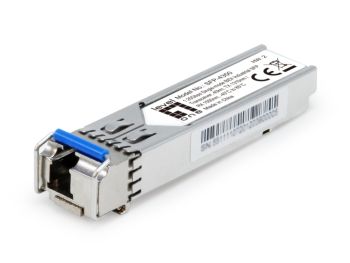

LevelOne BIDI Transceiver 1.25G Single-M. 40km 1550nm/T131
|
29,39 EUR |
|
|
( 34,97 EUR incl. VAT ) ≈ £24.60 | ≈ $32.89 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 172306 |
| Mfg Part No: | SFP-4350 |
| UPC/EAN: | 4015867224526 |
| Weight: | 0 kg |
| Certificates | |
| Compliance certificates | RoHS |
| Safety | FDA 21CFR 1040.10, 1040.11 EN60950, EN (IEC)60825-1,2 |
| Certification | CE |
| Features | |
| Product colour | Silver |
| Hot-swap | |
| Logistics data | |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 166.9 cm |
| Products per pallet | 35 pc(s) |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 375 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 268 mm |
| Master (outer) case gross weight | 6.8 kg |
| Products per master (outer) case | 150 pc(s) |
| Country of origin | China |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 65 mm |
| Package depth | 106 mm |
| Package height | 20 mm |
| Package weight | 39.5 g |
| Package type | Box |
| User guide | |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 40000 m |
| Tx wavelength (max) | 1310 nm |
| Rx wavelength (max) | 1550 nm |
| Tx power (min) | -5 dBmW |
| Tx power (max) | 0 dBmW |
| Single-mode fiber (SMF) supported | |
| Multi-mode fiber (MMF) supported | |
| Digital Diagnostics Monitoring (DDM) | |
| Power | |
| Maximum voltage | 3.47 V |
| Power consumption (typical) | 1 W |
| Weight & dimensions | |
| Width | 13.7 mm |
| Depth | 56.5 mm |
| Height | 11.8 mm |
| Weight | 19 g |
Questions & answers
What is the delivery time of LevelOne BIDI Transceiver 1.25G Single-M. 40km 1550nm/T131?
The article LevelOne BIDI Transceiver 1.25G Single-M. 40km 1550nm/T131 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne SFP-4350 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne BIDI Transceiver 1.25G Single-M. 40km 1550nm/T131 always at the best possible price. We can give you a discount of 2% on LevelOne BIDI Transceiver 1.25G Single-M. 40km 1550nm/T131 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
