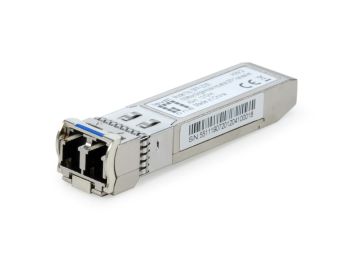

LevelOne SFP Transceiver 155Mbps Single-mode Duplex LC 40km
|
26,95 EUR |
|
|
( 32,07 EUR incl. VAT ) ≈ £22.56 | ≈ $30.16 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1712029 |
| Mfg Part No: | SFP-2230 |
| UPC/EAN: | 4015867224427 |
| Weight: | 0 kg |
| Certificates | |
| Compliance certificates | RoHS |
| Safety | FCC Part 15 Class B EN55022 Class B(CISPR 22B)VCCI Class B |
| Certification | CE |
| Features | |
| Product colour | Silver |
| Hot-swap | |
| Logistics data | |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 166.9 cm |
| Products per pallet | 35 pc(s) |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 375 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 268 mm |
| Master (outer) case gross weight | 6.67 kg |
| Products per master (outer) case | 150 pc(s) |
| Country of origin | China |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 65 mm |
| Package depth | 106 mm |
| Package height | 20 mm |
| Package weight | 39.5 g |
| Package type | Box |
| User guide | |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | FX |
| Maximum transfer distance | 2000 m |
| Tx wavelength (min) | 1263 nm |
| Tx wavelength (max) | 1360 nm |
| Rx wavelength (min) | 1270 nm |
| Rx wavelength (max) | 1600 nm |
| Tx power (min) | -5 dBmW |
| Tx power (max) | 0 dBmW |
| Rx power (min) | -34 dBmW |
| Rx power (max) | -10 dBmW |
| Copper ethernet cabling technology | 100BASE |
| Single-mode fiber (SMF) supported | |
| Multi-mode fiber (MMF) supported | |
| Digital Diagnostics Monitoring (DDM) | |
| Power | |
| Maximum voltage | 3.47 V |
| Maximum current | 0.3 A |
| Power consumption (typical) | 1 W |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 12 mm |
| Height | 57 mm |
| Weight | 21 g |
Questions & answers
What is the delivery time of LevelOne SFP Transceiver 155Mbps Single-mode Duplex LC 40km?
The article LevelOne SFP Transceiver 155Mbps Single-mode Duplex LC 40km is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne SFP-2230 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne SFP Transceiver 155Mbps Single-mode Duplex LC 40km always at the best possible price. We can give you a discount of 2% on LevelOne SFP Transceiver 155Mbps Single-mode Duplex LC 40km if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
