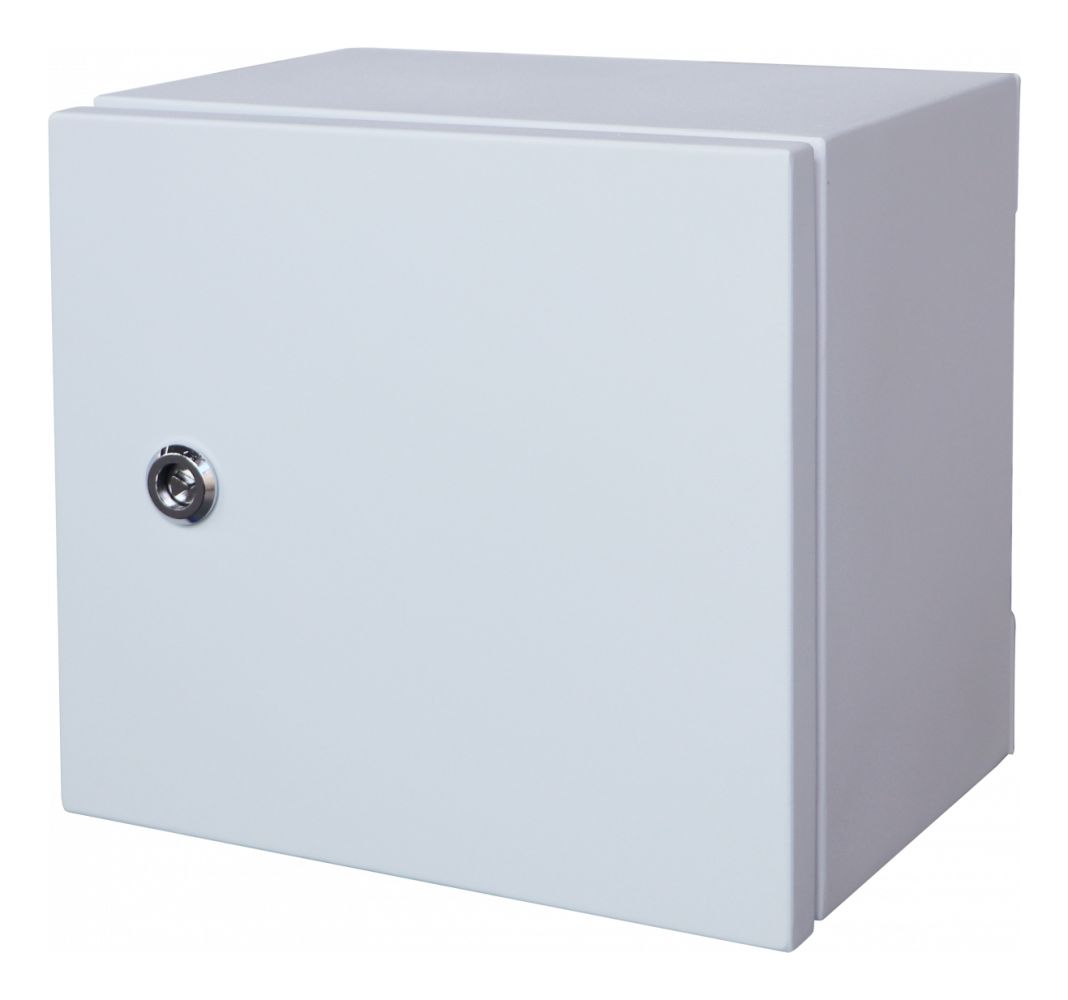

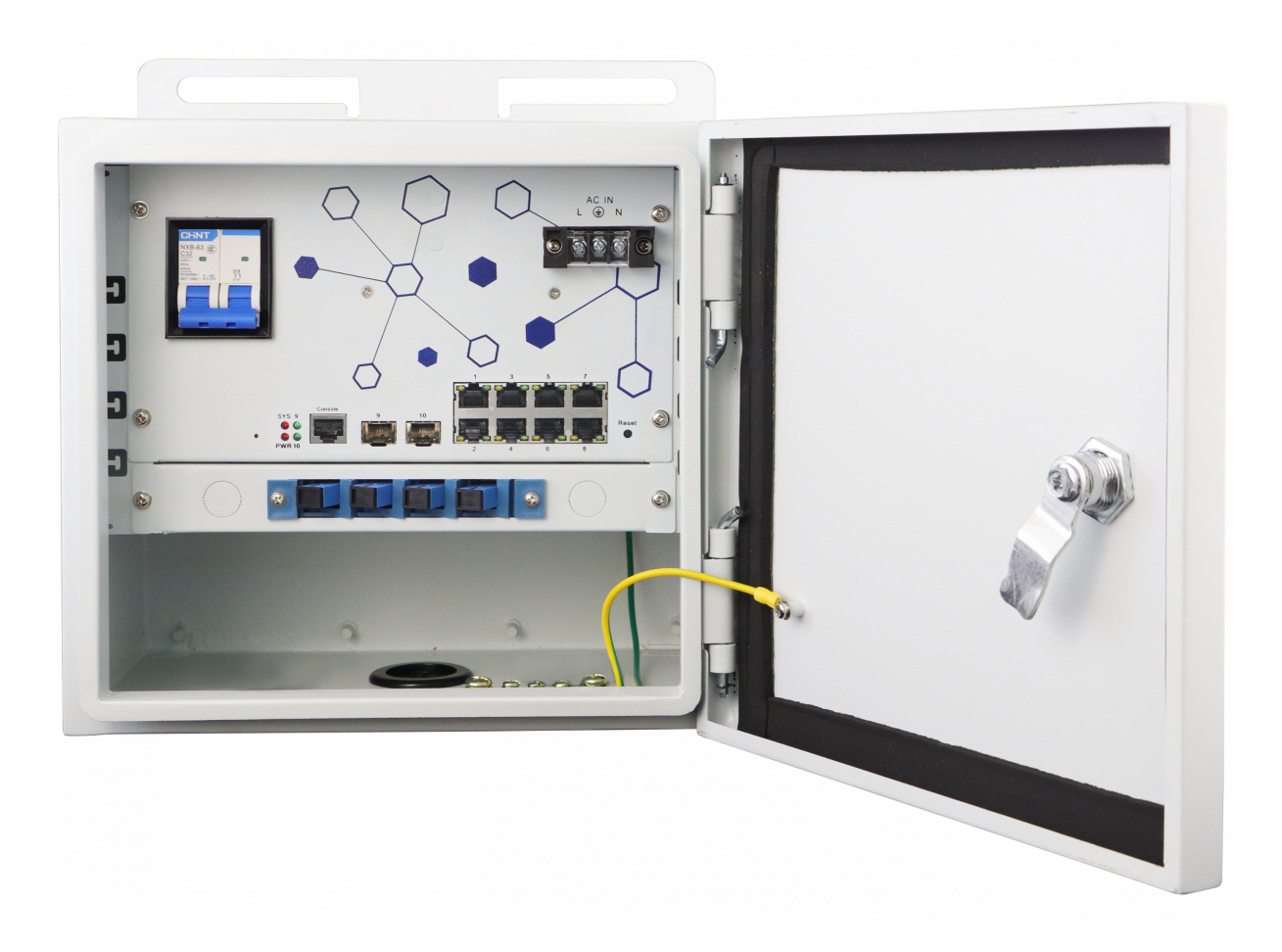

LevelOne Switch 10x GE OSW-1061, 8x Outputs 802.3at/af PoE
|
483,42 EUR |
|
|
( 575,27 EUR incl. VAT ) ≈ £404.62 | ≈ $540.95 plus delivery charges: 100,00 € |
|
| On order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2125114 |
| Mfg Part No: | OSW-1061 |
| UPC/EAN: | 4015867236444 |
| Weight: | 7.808 kg |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Link, Power |
| International Protection (IP) code | IP55 |
| Rack mounting | |
| Stackable | |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic classification | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Ethernet LAN data rates | 1000 Mbit/s |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Policy-based routing | |
| Half duplex | |
| Flow control support | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| Spanning tree protocol | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Packaging content | |
| Quick start guide | |
| Manual | |
| Packaging data | |
| Package type | Box |
| Performance | |
| Internal memory | 1 MB |
| Flash memory | 120 MB |
| Mean time between failures (MTBF) | 4000000 h |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 200 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 185 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| IP Source Guard (IPSG) | |
| Security | |
| DHCP features | DHCP snooping |
| MAC address filtering | |
| BPDU filtering/protection | |
| Password protection | |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 200 mm |
| Height | 250 mm |
| Weight | 8 kg |
