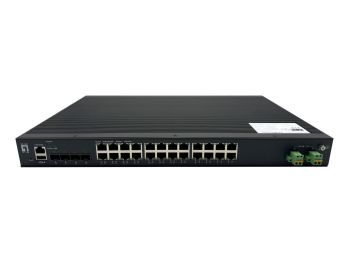

LevelOne Industr.PoE Switch 24xGE PoE/+ 370W Managed L2
|
1.262,06 EUR |
|
|
( 1.501,85 EUR incl. VAT ) ≈ £1,056.34 | ≈ $1,412.25 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 821704 |
| Mfg Part No: | IXP-2871 |
| UPC/EAN: | 4015867245873 |
| Weight: | 4.8 kg |
| Certificates | |
| Compliance certificates | UKCA, Federal Communications Commission (FCC), RoHS, CE |
| Data transmission | |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 190.4 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 16000 |
| Packet buffer memory | 12 MB |
| Static route | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Fault, PoE, Power, Status, USB |
| International Protection (IP) code | IP40 |
| Rack mounting | |
| Logistics data | |
| Pallet gross height | 177.6 cm |
| Country of origin | China |
| Master (outer) case width | 535 mm |
| Master (outer) case length | 205 mm |
| Master (outer) case height | 408 mm |
| Harmonized System (HS) code | 851762 |
| Master (outer) case gross weight | 10.6 kg |
| Products per master (outer) case | 2 pc(s) |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | |
| Web-based management | |
| ARP inspection | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping |
| 10G support | |
| Port mirroring | |
| Port trunking | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| Cable length detection | |
| Ethernet Ring Protection Switching (ERPS) | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Other features | |
| Terminal block port | |
| Packaging content | |
| Cables included | LAN (RJ-45) to DB9 |
| Quick start guide | |
| Rack mount kit | |
| Packaging data | |
| Package width | 525 mm |
| Package depth | 390 mm |
| Package height | 95 mm |
| Package weight | 4.8 kg |
| Terminal block included | |
| Performance | |
| Mean time between failures (MTBF) | 200000 h |
| Telnet | |
| Dying Gasp | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| USB Type-A ports quantity | 1 |
| Console port | RJ-45 |
| Power | |
| Power source | DC/PoE |
| Power consumption (typical) | 32 W |
| Power consumption (max) | 402 W |
| Surge protection voltage | 6 kV |
| Redundant power supply (RPS) support | |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | |
| Security | |
| DHCP features | DHCP server |
| Security algorithms | HTTPS |
| Authentication type | IEEE 802.1x |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| SSH/SSL support | |
| Loop protection | |
| IP-MAC-Port binding | |
| Password protection | |
| Technical details | |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 280 mm |
| Height | 45 mm |
| Weight | 4.14 kg |
Questions & answers
What is the delivery time of LevelOne Industr.PoE Switch 24xGE PoE/+ 370W Managed L2?
The article LevelOne Industr.PoE Switch 24xGE PoE/+ 370W Managed L2 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne IXP-2871 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne Industr.PoE Switch 24xGE PoE/+ 370W Managed L2 always at the best possible price. We can give you a discount of 2% on LevelOne Industr.PoE Switch 24xGE PoE/+ 370W Managed L2 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
