LevelOne Industr.Switch 16x1.25GSFP/4x10GSFP+ ÜSS Managed L2
|
1.198,79 EUR |
|
|
( 1.426,56 EUR incl. VAT ) ≈ £1,003.39 | ≈ $1,341.45 plus delivery charges: 100,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 821691 |
| Mfg Part No: | IGX-2872 |
| UPC/EAN: | 4015867245866 |
| Weight: | 5.25 kg |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
| Data transmission | |
| Switching capacity | 128 Gbit/s |
| MAC address table | 16000 entries |
| Packet buffer memory | 1.5 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | System, Power, USB, Link, ACT |
| International Protection (IP) code | IP40 |
| Market segment | Industrial |
| Rack mounting | |
| On/off switch | |
| DIN rail mounting | |
| Logistics data | |
| Customs product code (TARIC) | 8517620000 |
| Harmonized System (HS) code | 851762 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+/L3 |
| Quality of Service (QoS) support | |
| ARP inspection | |
| Configuring Location Settings (CLI) | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.3ad |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| QinQ implementation | QinQ |
| Virtual LAN features | Port-based VLAN, IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN |
| 10G support | |
| Port mirroring | |
| Flow control support | |
| Spanning tree protocol | |
| Ethernet Ring Protection Switching (ERPS) | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Other features | |
| Size (imperial) | 48.3 cm (19") |

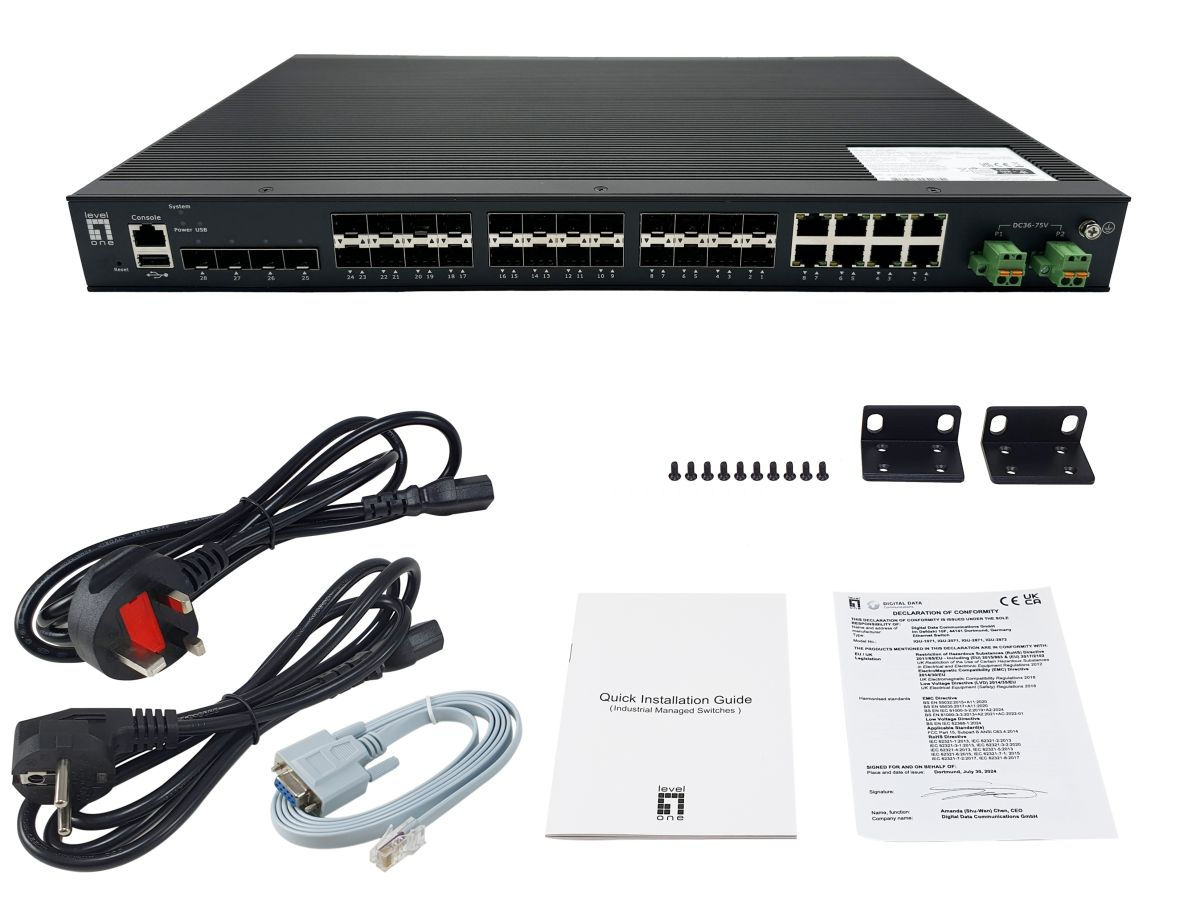

| Packaging content | Declaration of Conformity |
| Terminal block port | |
| Packaging content | |
| Cables included | Power |
| Quick start guide | |
| Rack mount kit | |
| Performance | |
| Noise level | 0 dB |
| Telnet | |
| sFlow | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| SFP module slots quantity | 16 |
| SFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Power cables quantity | 2 |
| Power | |
| Power source | AC/DC |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 38 - 72 V |
| Power consumption (typical) | 40 W |
| Power supply included | |
| Redundant power supply (RPS) support | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| GARP VLAN Registration Protocol (GVRP) | |
| Security | |
| DHCP features | DHCP snooping, DHCP client, DHCP server |
| Security algorithms | SNMP, SNMPv2, SNMPv2c, SNMPv3, HTTPS |
| Authentication type | RADIUS |
| Access Control List (ACL) | |
| IGMP snooping | |
| Password protection | |
| Sustainability | |
| Doesn't contain | Lead, Mercury, Cadmium |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 280 mm |
| Height | 45 mm |
| Weight | 4.1 kg |
Questions & answers
What is the delivery time of LevelOne Industr.Switch 16x1.25GSFP/4x10GSFP+ ÜSS Managed L2?
The article LevelOne Industr.Switch 16x1.25GSFP/4x10GSFP+ ÜSS Managed L2 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne IGX-2872 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne Industr.Switch 16x1.25GSFP/4x10GSFP+ ÜSS Managed L2 always at the best possible price. We can give you a discount of 2% on LevelOne Industr.Switch 16x1.25GSFP/4x10GSFP+ ÜSS Managed L2 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
