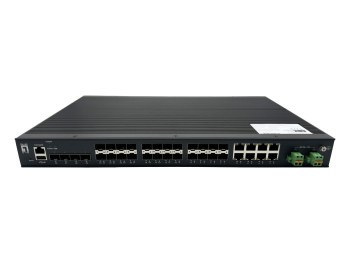

LevelOne IGU-2872 Industrial switch 16x1.25G SFP/4x2.5G SFP+ Managed L2
|
963,15 EUR |
|
|
( 1.146,15 EUR incl. VAT ) ≈ £806.16 | ≈ $1,077.76 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 119700 |
| Mfg Part No: | IGU-2872 |
| UPC/EAN: | 4015867238608 |
| Weight: | 4.819 kg |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Data transmission | |
| Switching capacity | 68 Gbit/s |
| Forwarding rate | 101.1 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 10000 |
| Packet buffer memory | 12 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Power, System, USB |
| International Protection (IP) code | IP40 |
| Rack mounting | |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 535 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 408 mm |
| Harmonized System (HS) code | 851762 |
| Master (outer) case gross weight | 22.5 kg |
| Products per master (outer) case | 4 pc(s) |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | |
| Web-based management | |
| System event log | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-X, 1000BASE-T |
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping |
| 10G support | |
| Port mirroring | |
| Port trunking | |
| Flow control support | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| Ethernet Ring Protection Switching (ERPS) | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | |
| Rack mount kit | |
| Packaging data | |
| Package width | 525 mm |
| Package depth | 390 mm |
| Package height | 95 mm |
| Package weight | 5.29 kg |
| Terminal block included | |
| Performance | |
| Mean time between failures (MTBF) | 200000 h |
| Fanless | |
| Ports & interfaces | |
| Combo SFP ports quantity | 8 |
| SFP module slots quantity | 20 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 36 - 75 V |
| Power consumption (max) | 36 W |
| Surge protection voltage | 6 kV |
| Power supply included | |
| Redundant power supply (RPS) support | |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| IP Source Guard (IPSG) | |
| Security | |
| Security algorithms | HTTPS, SSH |
| Authentication | MAC-based authentication, Port-based authentication |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Packet filtering | Y |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| Access Control List (ACL) | |
| MAC address filtering | |
| Technical details | |
| Master (outer) cases per pallet (air) | 14 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 177.6 cm |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 45 mm |
| Height | 280 mm |
| Weight | 4.14 kg |
Questions & answers
What is the delivery time of LevelOne IGU-2872 Industrial switch 16x1.25G SFP/4x2.5G SFP+ Managed L2?
The article LevelOne IGU-2872 Industrial switch 16x1.25G SFP/4x2.5G SFP+ Managed L2 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne IGU-2872 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne IGU-2872 Industrial switch 16x1.25G SFP/4x2.5G SFP+ Managed L2 always at the best possible price. We can give you a discount of 2% on LevelOne IGU-2872 Industrial switch 16x1.25G SFP/4x2.5G SFP+ Managed L2 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
