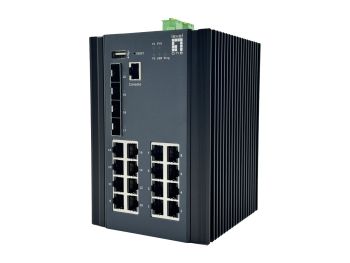

LevelOne Industr.Switch 16xGE/4x2.5GbE SFP ÜSS Managed L2
|
827,67 EUR |
|
|
( 984,93 EUR incl. VAT ) ≈ £692.76 | ≈ $926.16 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 821693 |
| Mfg Part No: | IGU-2071 |
| UPC/EAN: | 4015867245828 |
| Weight: | 2.413 kg |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Data transmission | |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 77.3 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 10000 |
| Packet buffer memory | 12 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Power, System, USB |
| International Protection (IP) code | IP40 |
| DIN rail mounting | |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 580 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 255 mm |
| Harmonized System (HS) code | 851762 |
| Master (outer) case gross weight | 15.2 kg |
| Products per master (outer) case | 6 pc(s) |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | |
| Web-based management | |
| ARP inspection | |
| System event log | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| 10G support | |
| Flow control support | |
| Link aggregation | |
| Spanning tree protocol | |
| Ethernet Ring Protection Switching (ERPS) | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Quick start guide | |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 180 mm |
| Package height | 142 mm |
| Package weight | 2.41 kg |
| Terminal block included | |
| DIN rail included | |
| Performance | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Power | |
| Power source | DC |
| Number of power supply units | 2 |
| Power consumption (max) | 22 W |
| Surge protection voltage | 6 kV |
| Power supply included | |
| Redundant power supply (RPS) support | |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| IP Source Guard (IPSG) | |
| Security | |
| DHCP features | DHCP server |
| Authentication | MAC-based authentication, Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| Packet filtering | Y |
| Access Control List (ACL) | |
| IGMP snooping | |
| IP-MAC-Port binding | |
| Technical details | |
| Master (outer) cases per pallet (air) | 26 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 167.4 cm |
| Weight & dimensions | |
| Width | 110 mm |
| Depth | 115 mm |
| Height | 158 mm |
| Weight | 2.08 kg |
Questions & answers
What is the delivery time of LevelOne Industr.Switch 16xGE/4x2.5GbE SFP ÜSS Managed L2?
The article LevelOne Industr.Switch 16xGE/4x2.5GbE SFP ÜSS Managed L2 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne IGU-2071 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne Industr.Switch 16xGE/4x2.5GbE SFP ÜSS Managed L2 always at the best possible price. We can give you a discount of 2% on LevelOne Industr.Switch 16xGE/4x2.5GbE SFP ÜSS Managed L2 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
