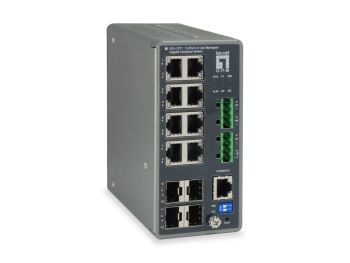

LevelOne Switch 8x GE IGU-1271 4xGSFP 8xPoE
|
-35% 529,10 EUR 812,07 EUR |
|
|
( 629,63 EUR incl. VAT ) ≈ £442.86 | ≈ $592.06 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1227072 |
| Mfg Part No: | IGU-1271 |
| UPC/EAN: | 4015867202661 |
| Weight: | 0.7 kg |
| Certificates | |
| Certification | FCC, CE, DMS |
| Data transmission | |
| Switching capacity | 24 Gbit/s |
| Forwarding rate | 17.856 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.5 MB |
| Store-and-forward | |
| Static route | |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| LED indicators | Alarm, Power, Status, System |
| Safety | UL,CB |
| Reset button | |
| DIN rail mounting | |
| Logistics data | |
| Country of origin | Taiwan |
| Master (outer) case width | 520 mm |
| Master (outer) case length | 445 mm |
| Master (outer) case height | 220 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 2.4 kg |
| Products per master (outer) case | 10 pc(s) |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Web-based management | |
| System event log | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | |
| Port mirroring | |
| Link aggregation | |
| Broadcast storm control | |
| Spanning tree protocol | |
| Ethernet Ring Protection Switching (ERPS) | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 36.03 BTU/h |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Quick start guide | |
| Packaging data | |
| Package type | Box |
| Package width | 255 mm |
| Package depth | 207 mm |
| Package height | 85 mm |
| Package weight | 900 g |
| Resource CD | |
| Performance | |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Remarking priority | Y |
| Mean time between failures (MTBF) | 476206 h |
| Firmware upgradeable | |
| sFlow | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| Power | |
| DC input voltage | 48 - 57 V |
| Power consumption (max) | 239.2 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Management protocols | SNMP, Web, Telnet, SSH |
| Supported network protocols | IPv4/IPv6 |
| Security | |
| DHCP features | DHCP server, DHCP snooping, DHCP relay, DHCP client |
| Access Control List (ACL) | |
| Loop protection | |
| BPDU filtering/protection | |
| Root protection | |
| Weight & dimensions | |
| Width | 62 mm |
| Depth | 130 mm |
| Height | 135 mm |
| Weight | 700 g |
