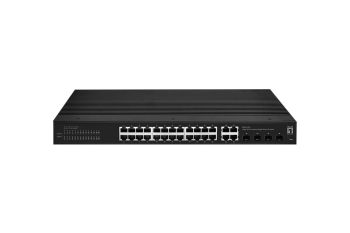

LevelOne Switch 28x GE IGS-2128 4xSFP, 24xRJ45 Ports black
|
416,36 EUR 416,36 EUR |
|
|
( 495,47 EUR incl. VAT ) ≈ £348.49 | ≈ $465.91 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2120419 |
| Mfg Part No: | IGS-2128 |
| UPC/EAN: | 4015867236222 |
| Weight: | 2.878 kg |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| MAC address table | 8000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Power, Link, Activity |
| International Protection (IP) code | IP30 |
| Rack mounting | |
| Logistics data | |
| Pallet gross height | 174.4 cm |
| Country of origin | China |
| Master (outer) case width | 540 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 400 mm |
| Harmonized System (HS) code | 8517620090 |
| Master (outer) case gross weight | 12.5 kg |
| Products per master (outer) case | 3 pc(s) |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| MAC address auto-learning supported | |
| MAC address auto-aging supported | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 68.24 BTU/h |
| Packaging content | |
| Quick start guide | |
| Rack mount kit | |
| Packaging data | |
| Package type | Box |
| Package width | 510 mm |
| Package depth | 375 mm |
| Package height | 93 mm |
| Package weight | 4 kg |
| Terminal block included | |
| Performance | |
| Flash memory | 2 MB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 43800 h |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| Power | |
| Power source | DC |
| DC input voltage | 12 - 57 V |
| Power consumption (typical) | 20 W |
| Surge protection voltage | 4 kV |
| Power protection features | Surge protection |
| Power supply included | |
| Redundant power supply (RPS) support | |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| Queue scheduling algorithms | Priority queuing (PQ) |
| IGMP snooping | |
| Sustainability | |
| Sustainability compliance | |
| Technical details | |
| Layers per pallet (air) | 16 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 244 mm |
| Height | 45 mm |
| Weight | 3.4 kg |
Questions & answers
What is the delivery time of LevelOne Switch 28x GE IGS-2128 4xSFP, 24xRJ45 Ports black?
The article LevelOne Switch 28x GE IGS-2128 4xSFP, 24xRJ45 Ports black is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne IGS-2128 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne Switch 28x GE IGS-2128 4xSFP, 24xRJ45 Ports black always at the best possible price. We can give you a discount of 2% on LevelOne Switch 28x GE IGS-2128 4xSFP, 24xRJ45 Ports black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
