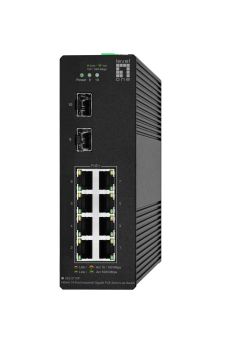

LevelOne Switch 10x GE IGS-2110P 2xSFP, 8x PoE Outputs
|
169,51 EUR |
|
|
( 201,72 EUR incl. VAT ) ≈ £141.88 | ≈ $189.68 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2120418 |
| Mfg Part No: | IGS-2110P |
| UPC/EAN: | 4015867236215 |
| Weight: | 0.775 kg |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 4000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Power, Link, Activity |
| International Protection (IP) code | IP30 |
| DIN rail mounting | |
| Logistics data | |
| Pallet gross height | 154.4 cm |
| Country of origin | China |
| Master (outer) case width | 480 mm |
| Master (outer) case length | 395 mm |
| Master (outer) case height | 350 mm |
| Harmonized System (HS) code | 8517620090 |
| Master (outer) case gross weight | 16 kg |
| Products per master (outer) case | 20 pc(s) |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Half duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Auto MDI/MDI-X | |
| Spanning tree protocol | |
| Auto-negotiation | |
| MAC address auto-learning supported | |
| MAC address auto-aging supported | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 81.89 BTU/h |
| Packaging content | |
| Quick start guide | |
| Packaging data | |
| Package type | Box |
| Package width | 230 mm |
| Package depth | 160 mm |
| Package height | 73 mm |
| Package weight | 780 g |
| Terminal block included | |
| DIN rail included | |
| Performance | |
| Flash memory | 2 MB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 43800 h |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| SFP module slots quantity | 2 |
| Fiber uplink ports quantity | 2 |
| Power | |
| Power source | DC/PoE |
| DC input voltage | 44 - 57 V |
| Power consumption (typical) | 120 W |
| Surge protection voltage | 4 kV |
| Power protection features | Surge protection |
| Power supply included | |
| Redundant power supply (RPS) support | |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 110 W |
| Power over Ethernet (PoE) | |
| Security | |
| Queue scheduling algorithms | Priority queuing (PQ) |
| IGMP snooping | |
| Sustainability | |
| Sustainability compliance | |
| Technical details | |
| Layers per pallet (air) | 16 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Weight & dimensions | |
| Width | 149.5 mm |
| Depth | 122.5 mm |
| Height | 50 mm |
| Weight | 550 g |
