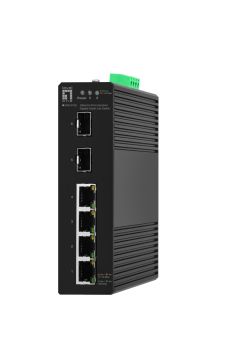

LevelOne Switch 6x GE IGS-2106 2xSFP, 4xRJ45 black
|
103,50 EUR |
|
|
( 123,16 EUR incl. VAT ) ≈ £86.63 | ≈ $115.82 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2120413 |
| Mfg Part No: | IGS-2106 |
| UPC/EAN: | 4015867236161 |
| Weight: | 0.498 kg |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Data transmission | |
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8.928 Mpps |
| MAC address table | 2000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| International Protection (IP) code | IP30 |
| DIN rail mounting | |
| Logistics data | |
| Pallet gross height | 154.4 cm |
| Country of origin | China |
| Master (outer) case width | 480 mm |
| Master (outer) case length | 395 mm |
| Master (outer) case height | 350 mm |
| Harmonized System (HS) code | 8517620090 |
| Master (outer) case gross weight | 24 kg |
| Products per master (outer) case | 34 pc(s) |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Half duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Auto MDI/MDI-X | |
| Spanning tree protocol | |
| Auto-negotiation | |
| MAC address auto-learning supported | |
| MAC address auto-aging supported | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 20.47 BTU/h |
| Packaging content | |
| Quick start guide | |
| Packaging data | |
| Package type | Box |
| Package width | 191 mm |
| Package depth | 135 mm |
| Package height | 60 mm |
| Package weight | 680 g |
| Terminal block included | |
| DIN rail included | |
| Performance | |
| Flash memory | 2 MB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 43800 h |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 4 |
| SFP module slots quantity | 2 |
| Fiber uplink ports quantity | 2 |
| Power | |
| Power source | DC |
| DC input voltage | 12 - 57 V |
| Power consumption (typical) | 6 W |
| Surge protection voltage | 4 kV |
| Power supply included | |
| Redundant power supply (RPS) support | |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| Queue scheduling algorithms | Priority queuing (PQ) |
| IGMP snooping | |
| Sustainability | |
| Sustainability compliance | |
| Technical details | |
| Layers per pallet (air) | 16 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Weight & dimensions | |
| Width | 136 mm |
| Depth | 108 mm |
| Height | 38.5 mm |
| Weight | 430 g |
Questions & answers
What is the delivery time of LevelOne Switch 6x GE IGS-2106 2xSFP, 4xRJ45 black?
The article LevelOne Switch 6x GE IGS-2106 2xSFP, 4xRJ45 black is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne IGS-2106 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne Switch 6x GE IGS-2106 2xSFP, 4xRJ45 black always at the best possible price. We can give you a discount of 2% on LevelOne Switch 6x GE IGS-2106 2xSFP, 4xRJ45 black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
