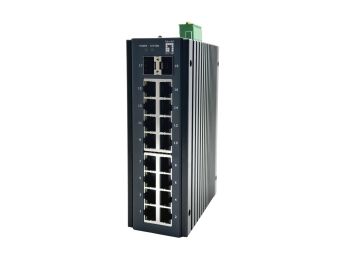

LevelOne Industr.PoE+Switch 16xGE PoE/2x1G/2.5GSFP 240W
|
569,99 EUR |
|
|
( 678,29 EUR incl. VAT ) ≈ £477.08 | ≈ $637.82 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 821699 |
| Mfg Part No: | IGP-1871 |
| UPC/EAN: | 4015867245804 |
| Weight: | 1.813 kg |
| Data transmission | |
| Switching capacity | 42 Gbit/s |
| MAC address table | 16000 entries |
| Jumbo frames | 10000 |
| Packet buffer memory | 12 MB |
| Static route | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, Power, System |
| International Protection (IP) code | IP40 |
| Rack mounting | |
| Reset button | |
| DIN rail mounting | |
| Logistics data | |
| Pallet gross height | 164.4 cm |
| Customs product code (TARIC) | 8517620000 |
| Country of origin | China |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 250 mm |
| Master (outer) case gross weight | 22.7 kg |
| Products per master (outer) case | 12 pc(s) |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | |
| Web-based management | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| QinQ implementation | QinQ |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| Cable length detection | |
| Ethernet Ring Protection Switching (ERPS) | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Other features | |
| Terminal block port | |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Quick start guide | |
| Packaging data | |
| Package type | Box |
| Package width | 230 mm |
| Package depth | 180 mm |
| Package height | 70 mm |
| Package weight | 1.81 kg |
| Terminal block included | |
| DIN rail included | |
| Performance | |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Mean time between failures (MTBF) | 200000 h |
| Firmware upgradeable | |
| Dying Gasp | |
| sFlow | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Power | |
| Power source | PoE |
| DC input voltage | 44 - 57 V |
| Power consumption (typical) | 15 W |
| Surge protection voltage | 6 kV |
| Power supply included | |
| Redundant power supply (RPS) support | |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | |
| Security | |
| DHCP features | DHCP Option 82, DHCP client, DHCP server, DHCP snooping, DHCPv6 server |
| Security algorithms | HTTPS |
| Authentication type | IEEE 802.1x, RADIUS |
| Queue scheduling algorithms | WRR+SP |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| Loop protection | |
| IP-MAC-Port binding | |
| Password protection | |
| ARP attack prevention | |
| Technical details | |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Weight & dimensions | |
| Width | 54 mm |
| Depth | 115 mm |
| Height | 158 mm |
| Weight | 1.55 kg |
