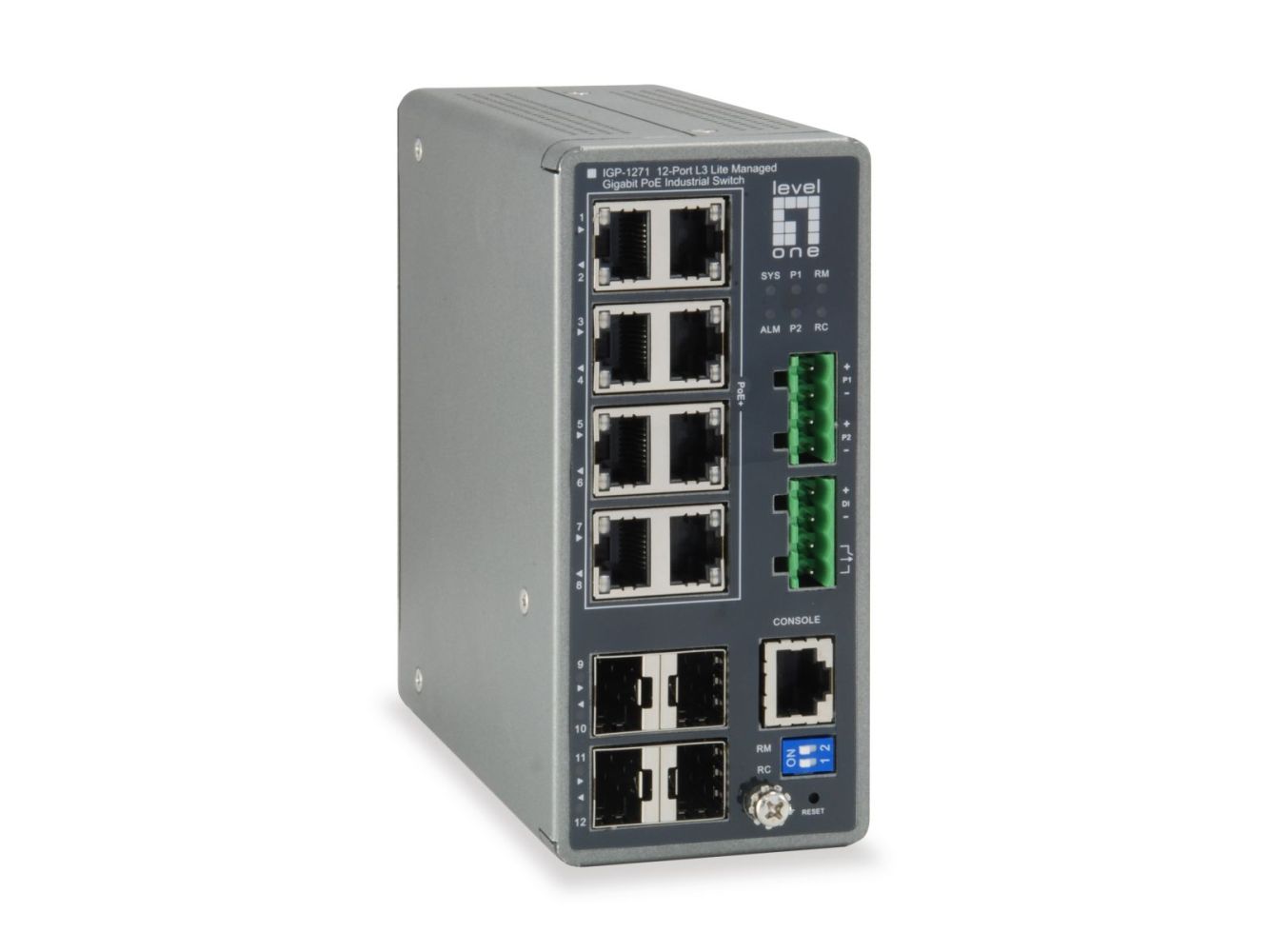

LevelOne Switch 8x GE IGP-1271 4xGSFP 240W 8xPoE+
|
897,90 EUR |
|
|
( 1.068,50 EUR incl. VAT ) ≈ £751.54 | ≈ $1,004.75 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1227090 |
| Mfg Part No: | IGP-1271 |
| UPC/EAN: | 4015867202654 |
| Weight: | 0.7 kg |
| Certificates | |
| Certification | RoHS FCC,CE EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 IEC60068-2-32 IEC60068-2-27 IEC60068-2-6 |
| Data transmission | |
| Switching capacity | 24 Gbit/s |
| Forwarding rate | 17.856 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.5 MB |
| Store-and-forward | |
| Static route | |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| LED indicators | Alarm, Power, Ring, Status, System |
| International Protection (IP) code | IP30 |
| Safety | UL, CB |
| Reset button | |
| DIN rail mounting | |
| Logistics data | |
| Country of origin | Taiwan |
| Master (outer) case width | 520 mm |
| Master (outer) case length | 445 mm |
| Master (outer) case height | 220 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 2.4 kg |
| Products per master (outer) case | 10 pc(s) |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| System event log | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| Virtual LAN features | Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, IP subnet–based VLAN |
| 10G support | |
| Port mirroring | |
| Link aggregation | |
| Broadcast storm control | |
| Spanning tree protocol | |
| Cable length detection | |
| Ethernet Ring Protection Switching (ERPS) | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 816.18 BTU/h |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Quick start guide | |
| Manual | |
| Packaging data | |
| Package width | 255 mm |
| Package depth | 207 mm |
| Package height | 85 mm |
| Package weight | 900 g |
| Resource CD | |
| Performance | |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 476206 h |
| Firmware upgradeable | |
| Telnet | |
| sFlow | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| Power | |
| DC input voltage | 48 - 57 V |
| Power consumption (max) | 239.2 W |
| Power protection features | Short circuit |
| Redundant power supply (RPS) support | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| Management protocols | SNMP, Web, Telnet, SSH |
| Supported network protocols | IPv4/IPv6 |
| GARP VLAN Registration Protocol (GVRP) | |
| Security | |
| DHCP features | DHCP server, DHCP snooping, DHCP relay, DHCP client |
| Access Control List (ACL) | |
| IGMP snooping | |
| SSH/SSL support | |
| Loop protection | |
| Root protection | |
| BPDU tunneling | |
| Weight & dimensions | |
| Width | 62 mm |
| Depth | 130 mm |
| Height | 135 mm |
| Weight | 700 g |
