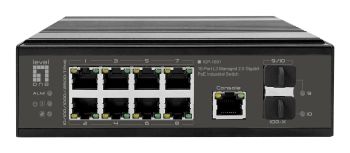

LevelOne IGP-1091 Industrial PoE+ Switch 8x2.5G PoE/2x1G/10G SFP+ Uplinks
|
466,82 EUR |
|
|
( 555,52 EUR incl. VAT ) ≈ £390.73 | ≈ $522.37 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 903476 |
| Mfg Part No: | IGP-1091 |
| UPC/EAN: | 4015867245132 |
| Weight: | 1.15 kg |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA, RoHS |
| Data transmission | |
| Switching capacity | 120 Gbit/s |
| Forwarding rate | 89.28 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 12228 |
| Jumbo frames support | |
| Packet forwarding | |
| Design | |
| Form factor | Desktop/Wall-Mounting |
| Product colour | Black |
| LED indicators | Power, Link, Activity, PoE |
| International Protection (IP) code | IP40 |
| Rack mounting | |
| Reset button | |
| Wall mountable | |
| DIN rail mounting | |
| Logistics data | |
| Customs product code (TARIC) | 8517620000 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| System event log | |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3bt |
| Ethernet LAN data rates | 100,1000,2500,10000 Mbit/s |
| 10G support | |
| Port mirroring | |
| Link aggregation | |
| Broadcast storm control | |
| MAC address auto-learning supported | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Performance | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
| Power connector | Terminal block (5-pin) |
| Power | |
| Power source | DC |
| DC input voltage | 48 - 57 V |
| Surge protection voltage | 6 kV |
| Power supply included | |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 480 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| Routing protocols | OSPF, RIP, VRRP |
| Sustainability | |
| Doesn't contain | Lead, Mercury, Cadmium |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 115 mm |
| Height | 50 mm |
| Weight | 1 kg |
Questions & answers
What is the delivery time of LevelOne IGP-1091 Industrial PoE+ Switch 8x2.5G PoE/2x1G/10G SFP+ Uplinks?
The article LevelOne IGP-1091 Industrial PoE+ Switch 8x2.5G PoE/2x1G/10G SFP+ Uplinks is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne IGP-1091 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne IGP-1091 Industrial PoE+ Switch 8x2.5G PoE/2x1G/10G SFP+ Uplinks always at the best possible price. We can give you a discount of 2% on LevelOne IGP-1091 Industrial PoE+ Switch 8x2.5G PoE/2x1G/10G SFP+ Uplinks if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
