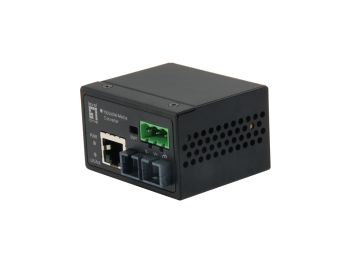

LevelOne converter IEC-4301 10/100TX>100FX SC SM 30km
|
192,95 EUR |
|
|
( 229,61 EUR incl. VAT ) ≈ £161.50 | ≈ $215.91 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1675246 |
| Mfg Part No: | IEC-4301 |
| UPC/EAN: | 4015867188163 |
| Weight: | 0.252 kg |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | FCC Part 15 Subpart B Class A CE EN 55022 Class A FCC Part 15 Subpart B Class A, CE EN 55022 Class A EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 2 EN61000-4-4 (EFT) Level 2 EN61000-4-5 (Surge) Level 2 EN61000-4-6 (CS) Level 2 EN 61000-4-8 (PFMF) Level 1 UL508 (Pending) EN 50121-4 (Pending) IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 |
| Features | |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Housing material | Aluminium |
| Internal | |
| Logistics data | |
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Duplex system | Full, Half |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Store-and-forward | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Quick installation guide | |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 105 mm |
| Package height | 65 mm |
| Package weight | 260 g |
| Package type | Box |
| Performance | |
| Maximum transfer distance | 30000 m |
| Fiber mode structure | Single-mode |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Input voltage | 12 - 60 V |
| Power consumption (typical) | 1.44 W |
| Weight & dimensions | |
| Width | 59 mm |
| Depth | 49 mm |
| Height | 36 mm |
| Weight | 90 g |
Questions & answers
What is the delivery time of LevelOne converter IEC-4301 10/100TX>100FX SC SM 30km?
The article LevelOne converter IEC-4301 10/100TX>100FX SC SM 30km is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne IEC-4301 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne converter IEC-4301 10/100TX>100FX SC SM 30km always at the best possible price. We can give you a discount of 2% on LevelOne converter IEC-4301 10/100TX>100FX SC SM 30km if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
