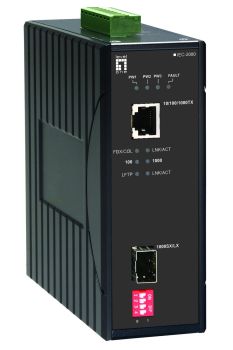

LevelOne converter IEC-2000 10/100TX>100FX 2km
|
275,46 EUR |
|
|
( 327,80 EUR incl. VAT ) ≈ £230.56 | ≈ $308.24 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1013287 |
| Mfg Part No: | IEC-2000 |
| UPC/EAN: | 4015867184103 |
| Weight: | 0.8 kg |
| Certificates | |
| Safety | UL508 |
| Certification | - ISO9001 - FCC Part 15, Class A - EN61000-6-3 - EN55022 - EN61000-3-2 - EN61000-3-3 - EN61000-6-2 - EN61000-4-2 - EN61000-4-3 - EN61000-4-4 - EN61000-4-5 - EN61000-4-6 - EN61000-4-8 - IEC60068-2-6 Fc - IEC60068-2-27 Ea - FED STD 101C Method 5007.1 |
| Features | |
| LED indicators | Activity, Link, Power, Status |
| Product colour | Black |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| Internal | |
| DIN rail mounting | |
| Logistics data | |
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-TX |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Packet forwarding rate (1 Gbps) | 1488100 pps |
| Duplex system | Full, Half |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Quick installation guide | |
| Packaging data | |
| Package width | 198 mm |
| Package depth | 92 mm |
| Package height | 236 mm |
| Package weight | 1 kg |
| Package type | Box |
| Performance | |
| Mean time between failures (MTBF) | 665760 h |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power | |
| Input voltage | 12 - 48 V |
| Output current (48V) | 0.16 A |
| Power consumption (max) | 7.68 W |
| Weight & dimensions | |
| Width | 50 mm |
| Depth | 110 mm |
| Height | 135 mm |
| Weight | 800 g |
Questions & answers
What is the delivery time of LevelOne converter IEC-2000 10/100TX>100FX 2km?
The article LevelOne converter IEC-2000 10/100TX>100FX 2km is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne IEC-2000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne converter IEC-2000 10/100TX>100FX 2km always at the best possible price. We can give you a discount of 2% on LevelOne converter IEC-2000 10/100TX>100FX 2km if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
