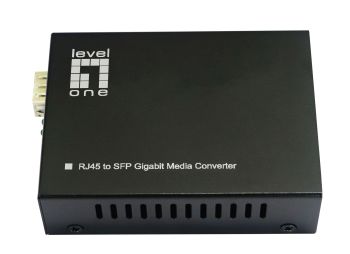

LevelOne converter GVT-2015 10/100/1000T>RJ45 to SFP 60W sw
|
77,58 EUR 77,58 EUR |
|
|
( 92,32 EUR incl. VAT ) ≈ £64.93 | ≈ $86.81 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 471339 |
| Mfg Part No: | GVT-2015 |
| UPC/EAN: | 4015867238004 |
| Weight: | 0.721 kg |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RCM, RoHS, UKCA |
| Features | |
| LED indicators | LAN, PoE, Power |
| Product colour | Black |
| Internal | |
| Web-based management | |
| Logistics data | |
| Country of origin | China |
| Master (outer) cases per pallet (air) | 32 pc(s) |
| Pallet gross length | 100 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 171 cm |
| Harmonized System (HS) code | 851762 |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 264 mm |
| Master (outer) case height | 390 mm |
| Master (outer) case gross weight | 8.24 kg |
| Products per master (outer) case | 10 pc(s) |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Jumbo frames | 9000 |
| Jumbo frames support | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| AC adapter included | |
| Quick installation guide | |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 186 mm |
| Package height | 84 mm |
| Package weight | 715 g |
| Performance | |
| Fiber mode structure | Multi-mode, Single-mode |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| DC-in jack | |
| Power | |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.8 A |
| Output voltage | 54.5 V |
| Output current | 1.32 A |
| Power consumption (typical) | 0.97 W |
| Power consumption (max) | 72.4 W |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) | |
| Weight & dimensions | |
| Width | 93.5 mm |
| Depth | 70 mm |
| Height | 26 mm |
| Weight | 320 g |
Questions & answers
What is the delivery time of LevelOne converter GVT-2015 10/100/1000T>RJ45 to SFP 60W sw?
The article LevelOne converter GVT-2015 10/100/1000T>RJ45 to SFP 60W sw is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne GVT-2015 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne converter GVT-2015 10/100/1000T>RJ45 to SFP 60W sw always at the best possible price. We can give you a discount of 2% on LevelOne converter GVT-2015 10/100/1000T>RJ45 to SFP 60W sw if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
