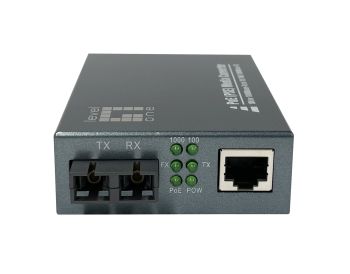

LevelOne GVT-2013
Media Konverter RJ45 zu SC Gigabit Ethernet MM PoE 30W 850nm 500m
|
131,09 EUR 136,85 EUR |
|
|
( 156,00 EUR incl. VAT ) ≈ £109.72 | ≈ $146.69 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2178975 |
| Mfg Part No: | GVT-2013 |
| UPC/EAN: | 4015867239537 |
| Weight: | 0 kg |
| Features | |
| LED indicators | Activity, Link, Power |
| Product colour | Grey |
| Internal | |
| Logistics data | |
| Country of origin | China |
| Master (outer) cases per pallet (air) | 23 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 176.9 cm |
| Master (outer) case width | 480 mm |
| Master (outer) case length | 305 mm |
| Master (outer) case height | 325 mm |
| Master (outer) case gross weight | 13.8 kg |
| Products per master (outer) case | 20 pc(s) |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Jumbo frames | 9000 |
| Duplex system | Full, Half |
| Jumbo frames support | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Store-and-forward | |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| AC adapter included | |
| User guide | |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 150 mm |
| Package height | 60 mm |
| Package weight | 650 g |
| Performance | |
| Maximum transfer distance | 500 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.6 A |
| Output voltage | 48 V |
| Output current | 2 A |
| Power consumption (max) | 40 W |
| Total Power over Ethernet (PoE) budget | 30 W |
| Power over Ethernet (PoE) | |
| External power adapter | |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 94 mm |
| Height | 26 mm |
| Weight | 200 g |
Questions & answers
What is the delivery time of LevelOne GVT-2013 Media Konverter RJ45 zu SC Gigabit Ethernet MM PoE 30W 850nm 500m?
The article LevelOne GVT-2013 Media Konverter RJ45 zu SC Gigabit Ethernet MM PoE 30W 850nm 500m is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne GVT-2013 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne GVT-2013 Media Konverter RJ45 zu SC Gigabit Ethernet MM PoE 30W 850nm 500m always at the best possible price. We can give you a discount of 2% on LevelOne GVT-2013 Media Konverter RJ45 zu SC Gigabit Ethernet MM PoE 30W 850nm 500m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
