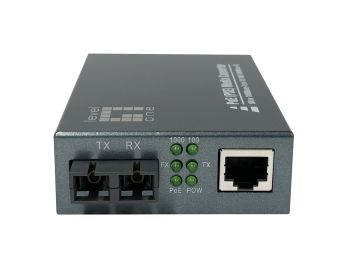

LevelOne converter GVT-2013 10/100/1000T>RJ45 to SC MM PSE
|
131,09 EUR |
|
|
( 156,00 EUR incl. VAT ) ≈ £109.72 | ≈ $146.69 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2064695 |
| Mfg Part No: | GVT-2013 |
| UPC/EAN: | 4015867231210 |
| Weight: | 0.635 kg |
| Features | |
| LED indicators | Activity, Link, Power |
| Product colour | Grey |
| Internal | |
| Logistics data | |
| Country of origin | China |
| Master (outer) cases per pallet (air) | 23 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 176.9 cm |
| Master (outer) case width | 480 mm |
| Master (outer) case length | 305 mm |
| Master (outer) case height | 325 mm |
| Master (outer) case gross weight | 13.8 kg |
| Products per master (outer) case | 20 pc(s) |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Jumbo frames | 9000 |
| Duplex system | Full, Half |
| Jumbo frames support | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Store-and-forward | |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| AC adapter included | |
| User guide | |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 150 mm |
| Package height | 60 mm |
| Package weight | 650 g |
| Performance | |
| Maximum transfer distance | 500 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.6 A |
| Output voltage | 48 V |
| Output current | 2 A |
| Power consumption (max) | 40 W |
| Total Power over Ethernet (PoE) budget | 30 W |
| Power over Ethernet (PoE) | |
| External power adapter | |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 94 mm |
| Height | 26 mm |
| Weight | 200 g |
