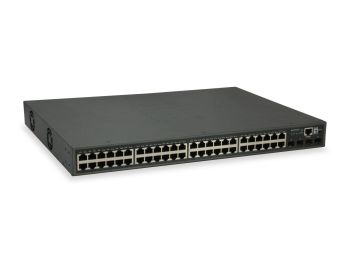

LevelOne PoE+Switch 48xGE PoE/4x10GSFP 400W 48,3 cm ( 19 inch ) Managed L3
|
1.096,88 EUR |
|
|
( 1.305,29 EUR incl. VAT ) ≈ £918.09 | ≈ $1,227.41 plus delivery charges: 100,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 821709 |
| Mfg Part No: | GTP-5271 |
| UPC/EAN: | 4015867245910 |
| Weight: | 6.57 kg |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE |
| Data transmission | |
| Forwarding rate | 130.944 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 12000 |
| Packet buffer memory | 512 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Link, PoE, Power |
| Rack mounting | |
| Reset button | |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| ARP inspection | |
| Configuring Location Settings (CLI) | |
| Multicast features | |
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Network virtualization technologies | Q-in-Q tunneling |
| QinQ implementation | Selective QinQ |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN |
| Number of VLANs | 4096 |
| 10G support | |
| Port mirroring | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Rack mount kit | |
| Packaging data | |
| Package type | Box |
| Package width | 596 mm |
| Package depth | 390 mm |
| Package height | 80 mm |
| Package weight | 6 kg |
| Rubber feet | |
| Performance | |
| Internal memory | 32 MB |
| Firmware upgradeable | |
| Telnet | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6 A |
| Power consumption (max) | 473.7 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| IPv4 & IPv6 features | IPv6 Telnet |
| GARP VLAN Registration Protocol (GVRP) | |
| Security | |
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| Security algorithms | SNMPv3 |
| Authentication | Guest VLAN, Web-based authentication |
| Authentication type | RADIUS |
| Queue scheduling algorithms | Priority queuing (PQ), Weighted Round Robin (WRR) |
| Access Control List (ACL) | |
| IGMP snooping | |
| IGMP proxy | |
| SSH/SSL support | |
| Password protection | |
| DoS attack prevention | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44.5 mm |
| Weight | 4.52 kg |
Questions & answers
What is the delivery time of LevelOne PoE+Switch 48xGE PoE/4x10GSFP 400W 48,3 cm ( 19 inch ) Managed L3?
The article LevelOne PoE+Switch 48xGE PoE/4x10GSFP 400W 48,3 cm ( 19 inch ) Managed L3 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne GTP-5271 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne PoE+Switch 48xGE PoE/4x10GSFP 400W 48,3 cm ( 19 inch ) Managed L3 always at the best possible price. We can give you a discount of 2% on LevelOne PoE+Switch 48xGE PoE/4x10GSFP 400W 48,3 cm ( 19 inch ) Managed L3 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
