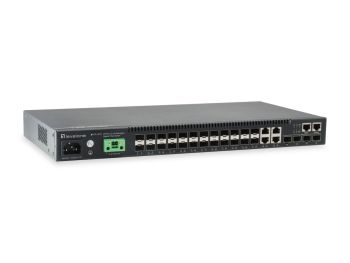

LevelOne Switch 28x GE GTL-2872 20xGSFP+48,3 cm ( 19 inch ) 4x10GSFP
|
750,86 EUR |
|
|
( 893,52 EUR incl. VAT ) ≈ £628.47 | ≈ $840.21 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1193683 |
| Mfg Part No: | GTL-2872 |
| UPC/EAN: | 4015867203064 |
| Weight: | 3.49 kg |
| Certificates | |
| Certification | CE, FCC, CISPR, BSMI |
| Data transmission | |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 9000 |
| Static route | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Diagnostic, Link, Power |
| Safety | UL (UL60950-1) |
| Rack mounting | |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 600 mm |
| Master (outer) case length | 435 mm |
| Master (outer) case height | 340 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 16.6 kg |
| Products per master (outer) case | 4 pc(s) |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| ARP inspection | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3z |
| Virtual LAN features | Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN |
| 10G support | |
| Full duplex | |
| Link aggregation | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Optical fiber | |
| Fiber ethernet cabling technology | 10GBASE-ER, 10GBASE-LR, 10GBASE-SR, 1000BASE-LHX, 1000BASE-SX, 1000BASE‑LX, 1000BASE‑ZX |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Rack mount kit | |
| Packaging data | |
| Package type | Box |
| Package width | 580 mm |
| Package depth | 405 mm |
| Package height | 80 mm |
| Package weight | 3.77 kg |
| Resource CD | |
| Performance | |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Mean time between failures (MTBF) | 298951 h |
| Telnet | |
| Ports & interfaces | |
| Combo SFP ports quantity | 4 |
| SFP module slots quantity | 20 |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Basic switching RJ-45 Ethernet ports type | |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 48 - 60 V |
| Power consumption (typical) | 21.48 W |
| Redundant power supply (RPS) support | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Management protocols | CLI, WEB, TELNET |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| GARP VLAN Registration Protocol (GVRP) | |
| Security | |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| Packet filtering | CDP/PVST+ |
| Access Control List (ACL) | |
| IGMP snooping | |
| Static port security | |
| Loop protection | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 2.82 kg |
Questions & answers
What is the delivery time of LevelOne Switch 28x GE GTL-2872 20xGSFP+48,3 cm ( 19 inch ) 4x10GSFP?
The article LevelOne Switch 28x GE GTL-2872 20xGSFP+48,3 cm ( 19 inch ) 4x10GSFP is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne GTL-2872 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne Switch 28x GE GTL-2872 20xGSFP+48,3 cm ( 19 inch ) 4x10GSFP always at the best possible price. We can give you a discount of 2% on LevelOne Switch 28x GE GTL-2872 20xGSFP+48,3 cm ( 19 inch ) 4x10GSFP if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
