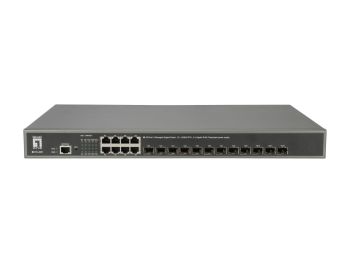

LevelOne Switch 8x GE GTL-2091 12x10GSFP+48,3 cm ( 19 inch )
|
944,47 EUR |
|
|
( 1.123,92 EUR incl. VAT ) ≈ £790.52 | ≈ $1,056.86 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1198953 |
| Mfg Part No: | GTL-2091 |
| UPC/EAN: | 4015867208366 |
| Weight: | 5.63 kg |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE |
| Data transmission | |
| Switching capacity | 256 Gbit/s |
| MAC address table | 32000 entries |
| Number of queues | 8 |
| Number of IP interfaces | 256 |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 13690474 pps |
| Packet forwarding rate (100 Mbps) | 1369047 pps |
| Packet forwarding rate (10 Mbps) | 136904 pps |
| Packet buffer memory | 3 MB |
| Store-and-forward | |
| Static route | |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity, Link, Power, System |
| Safety | FCC Part 15 Subpart B |
| Rack mounting | |
| Reset button | |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| ARP inspection | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Number of multicast groups filtered | 256 |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Network virtualization technologies | Q-in-Q tunneling |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Voice VLAN |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| IP routing | |
| Policy-based routing | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Spanning tree protocol | |
| Head-of-line (HOL) blocking | |
| Fast leave | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 170.65 BTU/h |
| Other features | |
| Ethernet LAN | |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Rack mount kit | |
| Packaging data | |
| Package type | Box |
| Package width | 576 mm |
| Package depth | 448 mm |
| Package height | 94 mm |
| Package weight | 5.3 kg |
| Rubber feet | |
| Resource CD | |
| Performance | |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Maximum data transfer rate | 10000 Mbit/s |
| Mean time between failures (MTBF) | 185680 h |
| Telnet | |
| Dying Gasp | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 12 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 50 W |
| Redundant power supply (RPS) support | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | |
| Security | |
| DHCP features | DHCP client, DHCP server |
| Authentication | Guest VLAN |
| Authentication type | AAA, RADIUS |
| Queue scheduling algorithms | Deficit Round Robin (DRR), Weighted Round Robin (WRR) |
| Access Control List (ACL) | |
| IGMP snooping | |
| IGMP proxy | |
| IP-MAC-Port binding | |
| Password protection | |
| DoS attack prevention | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 315 mm |
| Height | 44 mm |
| Weight | 3.6 kg |
