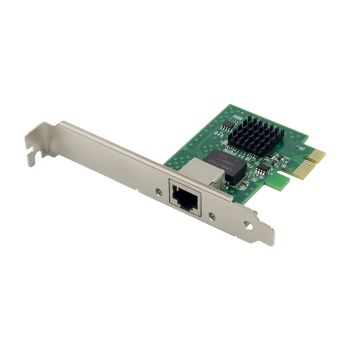

LevelOne network adapter GNC-0113 2.5Gb-PCIe, 1x RJ45 green
|
21,05 EUR |
|
|
( 25,05 EUR incl. VAT ) ≈ £17.62 | ≈ $23.55 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 02. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2120363 |
| Mfg Part No: | GNC-0113 |
| UPC/EAN: | 4015867236239 |
| Weight: | 0.175 kg |
| Design | |
| Component for | PC/Server |
| Product colour | Green |
| Country of origin | China |
| Internal | |
| Logistics data | |
| Harmonized System (HS) code | 8517620090 |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet gross height | 189.4 cm |
| Master (outer) cases per pallet | 19 pc(s) |
| Master (outer) case width | 490 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 350 mm |
| Master (outer) case gross weight | 10 kg |
| Products per master (outer) case | 60 pc(s) |
| Network | |
| Maximum data transfer rate | 5000 Mbit/s |
| Networking standards | IEEE 1588, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T |
| Jumbo frames | 9500 |
| Supported network protocols | IPv4, IPv6 |
| Ethernet LAN | |
| Wake-on-LAN ready | |
| Jumbo frames support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Other features | |
| Buffer size | 40 KB |
| Packaging content | |
| Mounting brackets included | |
| Resource CD | |
| Quick installation guide | |
| Packaging data | |
| Package width | 183 mm |
| Package depth | 152 mm |
| Package height | 30 mm |
| Package weight | 150 g |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI version | 3.1 |
| Sustainability | |
| Sustainability compliance | |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
| Width | 72 mm |
| Depth | 55 mm |
| Height | 20 mm |
| Weight | 40 g |
Questions & answers
What is the delivery time of LevelOne network adapter GNC-0113 2.5Gb-PCIe, 1x RJ45 green?
The article LevelOne network adapter GNC-0113 2.5Gb-PCIe, 1x RJ45 green is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne GNC-0113 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne network adapter GNC-0113 2.5Gb-PCIe, 1x RJ45 green always at the best possible price. We can give you a discount of 2% on LevelOne network adapter GNC-0113 2.5Gb-PCIe, 1x RJ45 green if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
