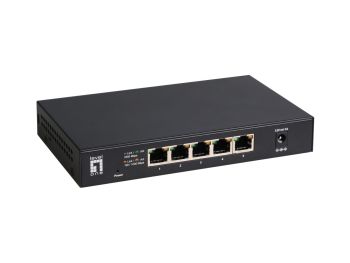

LevelOne Switch 5x GE GEU-0525 IEEE 802.3x 100Mbps sw
|
60,16 EUR |
|
|
( 71,59 EUR incl. VAT ) ≈ £50.35 | ≈ $67.32 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 471315 |
| Mfg Part No: | GEU-0525 |
| UPC/EAN: | 4015867237793 |
| Weight: | 0.646 kg |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Data transmission | |
| Switching capacity | 25 Gbit/s |
| Forwarding rate | 18.6 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Wall mountable | |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 605 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 440 mm |
| Harmonized System (HS) code | 851762 |
| Master (outer) case gross weight | 33 kg |
| Products per master (outer) case | 50 pc(s) |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T |
| 10G support | |
| Full duplex | |
| Half duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| MAC address auto-learning supported | |
| MAC address auto-aging supported | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quick start guide | |
| Packaging data | |
| Package width | 190 mm |
| Package depth | 115 mm |
| Package height | 82 mm |
| Package weight | 614.4 g |
| AC adapter included | |
| Performance | |
| Noise level | 0 dB |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 5 |
| Power | |
| Power source | DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.4 A |
| Input voltage | 12 V |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Technical details | |
| Master (outer) cases per pallet (air) | 12 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 148.2 cm |
| Weight & dimensions | |
| Width | 175.5 mm |
| Depth | 105.3 mm |
| Height | 27.3 mm |
| Weight | 476.7 g |
Questions & answers
What is the delivery time of LevelOne Switch 5x GE GEU-0525 IEEE 802.3x 100Mbps sw?
The article LevelOne Switch 5x GE GEU-0525 IEEE 802.3x 100Mbps sw is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne GEU-0525 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne Switch 5x GE GEU-0525 IEEE 802.3x 100Mbps sw always at the best possible price. We can give you a discount of 2% on LevelOne Switch 5x GE GEU-0525 IEEE 802.3x 100Mbps sw if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
