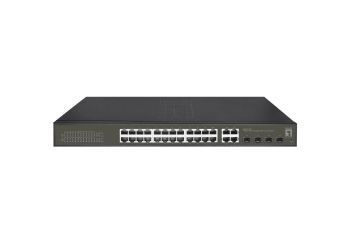

LevelOne Switch 24x GE GES-2128P 4xGSFP 48,3 cm ( 19 inch ) 380W 24xPoE+
|
379,77 EUR |
|
|
( 451,93 EUR incl. VAT ) ≈ £317.87 | ≈ $424.96 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1995950 |
| Mfg Part No: | GES-2128P |
| UPC/EAN: | 4015867229231 |
| Weight: | 4.311 kg |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Certification | UKCA, FCC Class A |
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| MAC address table | 8000 entries |
| Number of queues | 4 |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power, System |
| Rack mounting | |
| Logistics data | |
| Master (outer) case net weight | 750 g |
| Country of origin | China |
| Master (outer) case width | 540 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 400 mm |
| Master (outer) case gross weight | 13.1 kg |
| Products per master (outer) case | 3 pc(s) |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Virtual LAN features | Tagged VLAN |
| Number of VLANs | 32 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| MAC address auto-learning supported | |
| MAC address auto-aging supported | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 88.71 BTU/h |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Rack mount kit | |
| Packaging data | |
| Package type | Box |
| Package width | 515 mm |
| Package depth | 380 mm |
| Package height | 93 mm |
| Package weight | 4.1 kg |
| Performance | |
| Flash memory | 2 MB |
| Noise level | 30 dB |
| Mean time between failures (MTBF) | 43800 h |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| Power | |
| Power source | AC/PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 400 W |
| Surge protection voltage | 8 kV |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 380 W |
| Power over Ethernet (PoE) | |
| Security | |
| IGMP snooping | |
| Technical details | |
| Master (outer) cases per pallet (air) | 16 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 174.4 cm |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 290 mm |
| Height | 44.5 mm |
| Weight | 3.4 kg |
