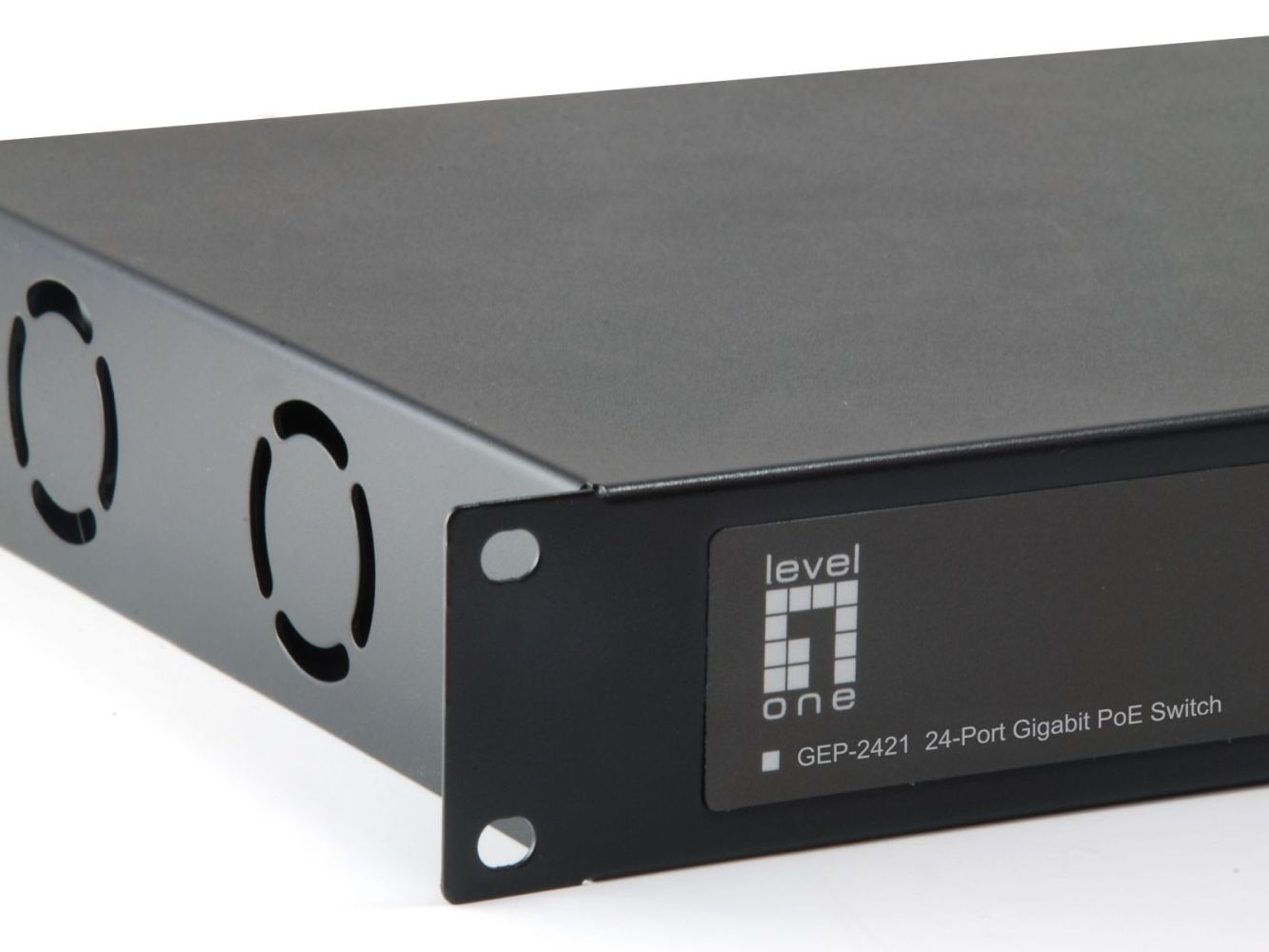

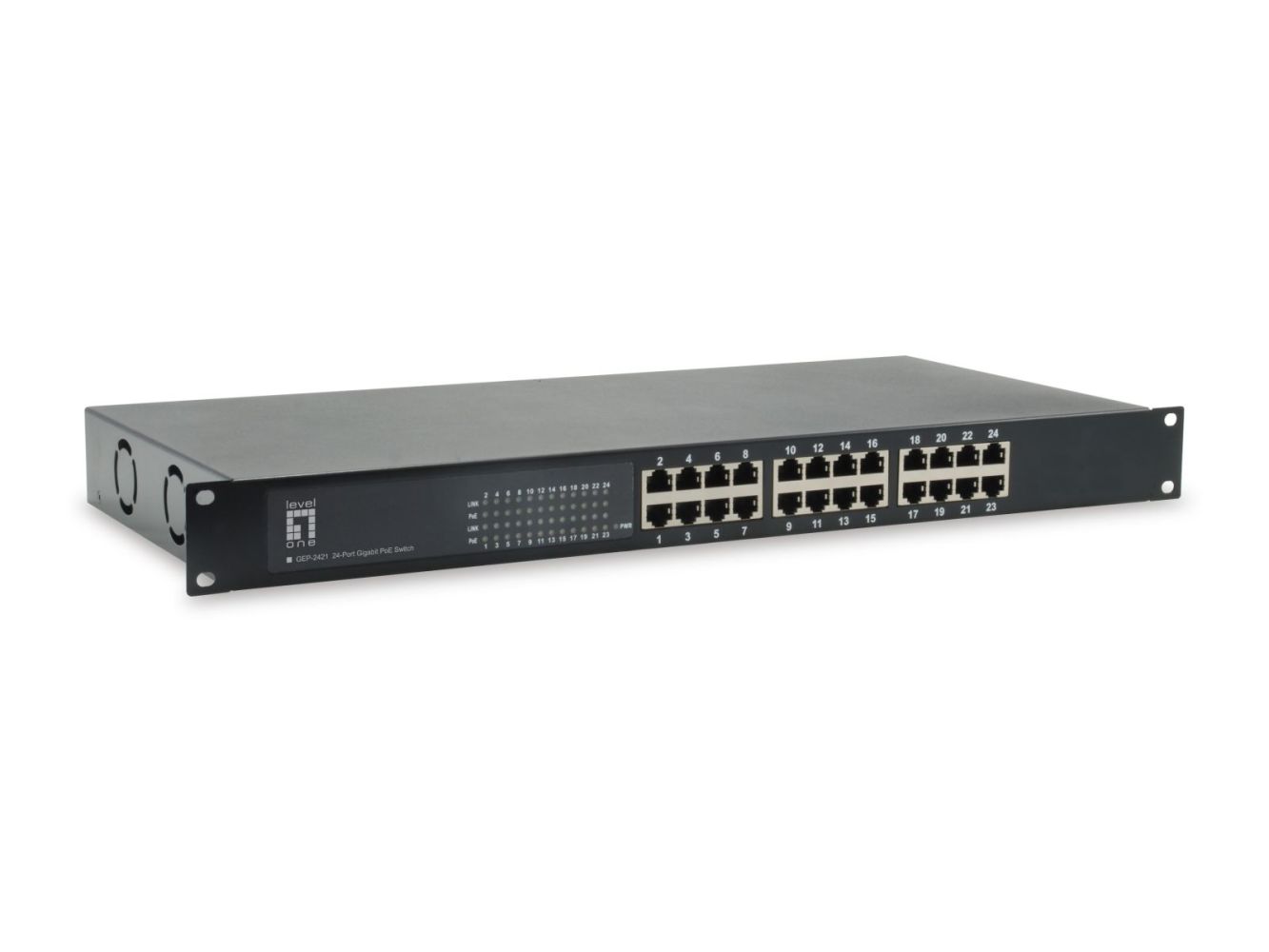

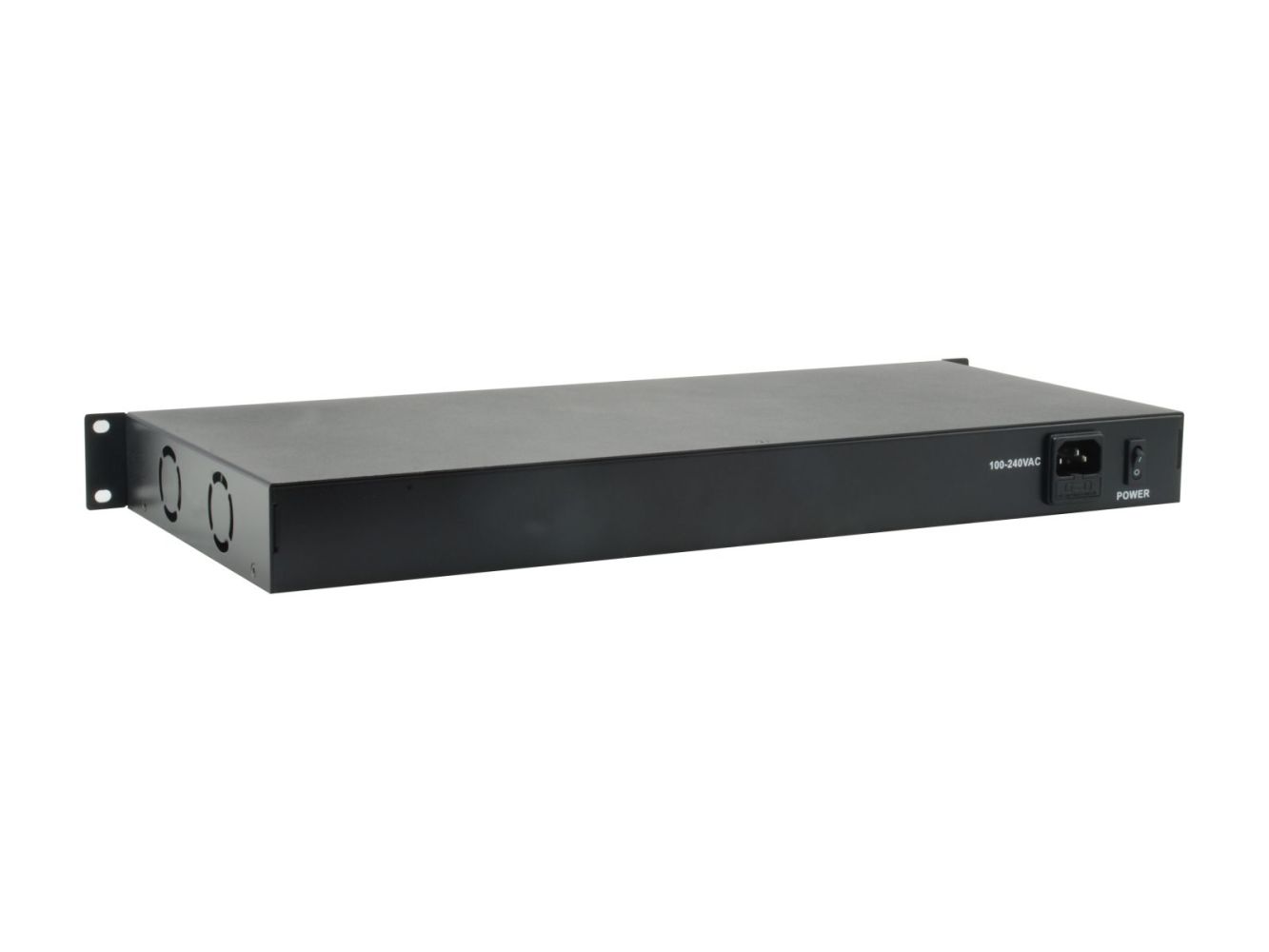

LevelOne Switch 24x GE GEP-2421W150 48,3 cm ( 19 inch ) 150W 24xPoE
|
524,56 EUR |
|
|
( 624,23 EUR incl. VAT ) ≈ £439.06 | ≈ $586.98 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 757198 |
| Mfg Part No: | GEP-2421W150 |
| UPC/EAN: | 4015867202104 |
| Weight: | 3.414 kg |
| Data transmission | |
| Switching capacity | 48 Gbit/s |
| MAC address table | 8000 entries |
| Jumbo frames | 10000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 4.1 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Black |

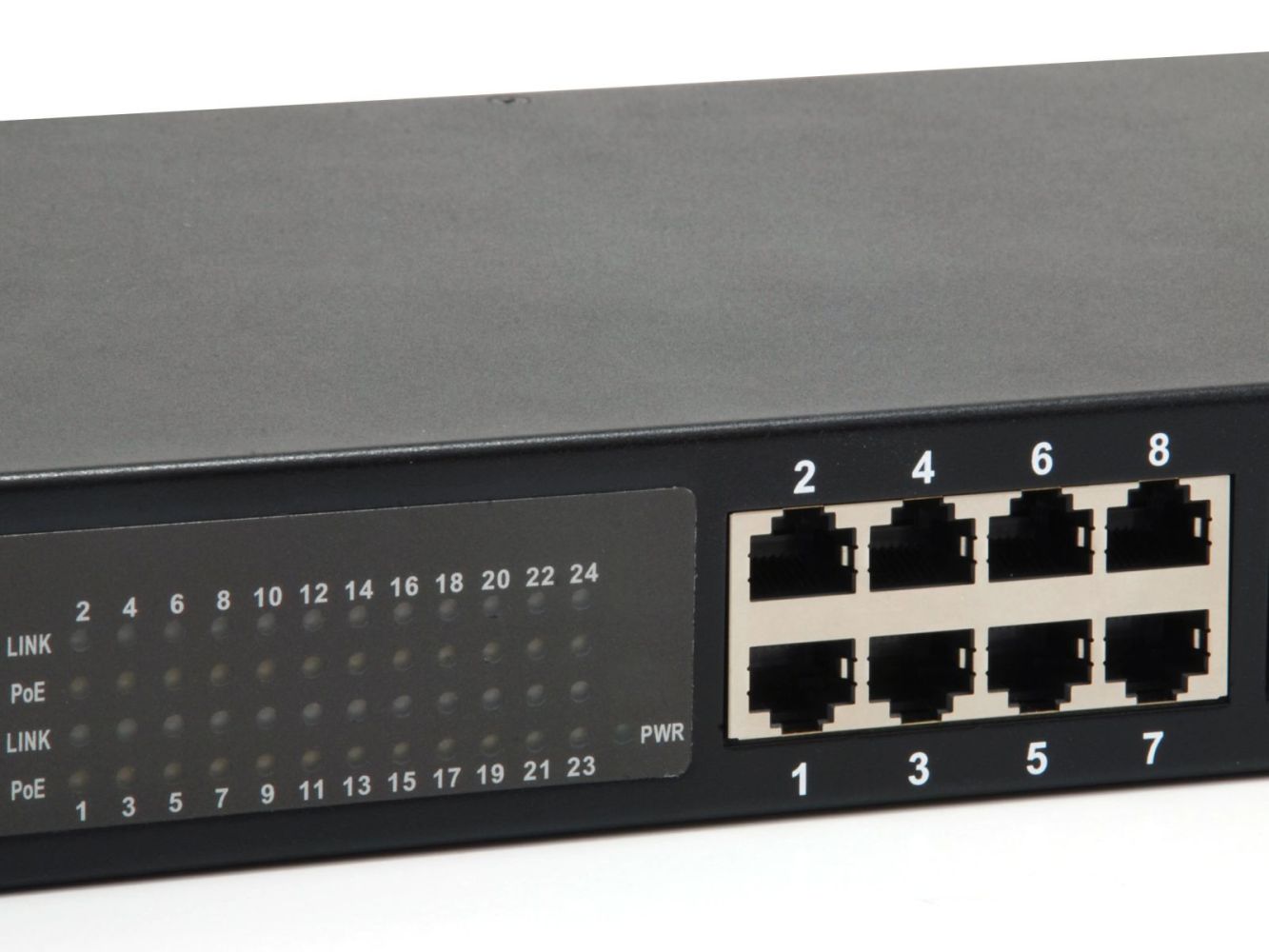

| LED indicators | LAN, PoE, Power |
| Regulatory Approvals | EMI: EN55032:2012+AC:2013, EN55022:2010+AC:2011, AS/NZS CISPR 22 Amdt. (2010), EN61000-3-2:2014, EN61000-3-3:2013. EMS: EN55024:2010, IEC61000-4-2:2008, IEC61000-4-3:2006+A1:2007+A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004 |
| Safety | FCC Class A, CE |
| Rack mounting | |
| Logistics data | |
| Country of origin | Taiwan |
| Master (outer) case width | 510 mm |
| Master (outer) case length | 280 mm |
| Master (outer) case height | 555 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 18 kg |
| Products per master (outer) case | 5 pc(s) |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7 |
| 10G support | |
| Full duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| MAC address auto-learning supported | |
| MAC address auto-aging supported | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Manual | |
| Rack mount kit | |
| Packaging data | |
| Package type | Box |
| Package width | 260 mm |
| Package depth | 95 mm |
| Package height | 540 mm |
| Package weight | 3.5 kg |
| Rubber feet | |
| Performance | |
| Mean time between failures (MTBF) | 55500 h |
| Ports & interfaces | |

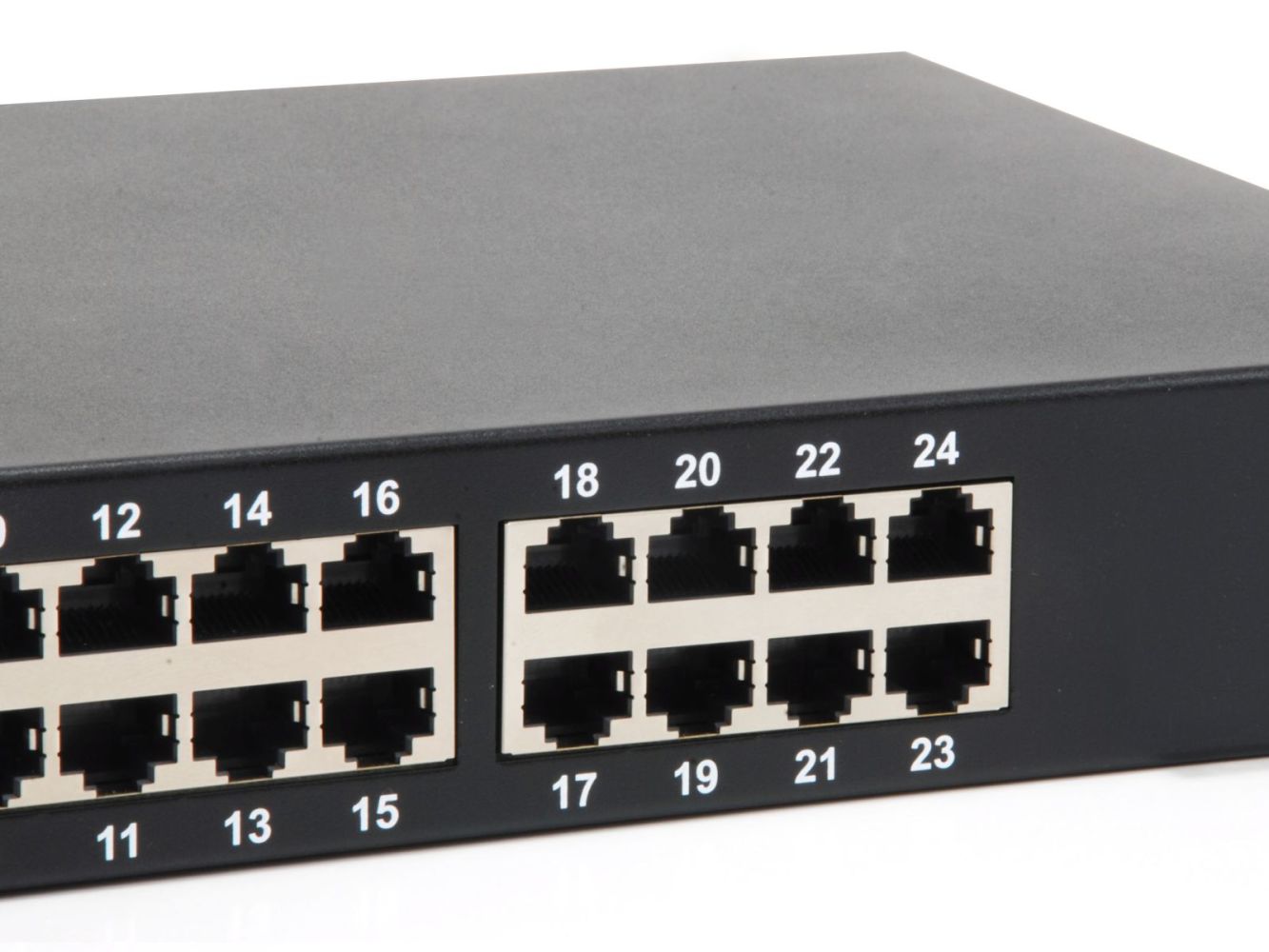

| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power | |

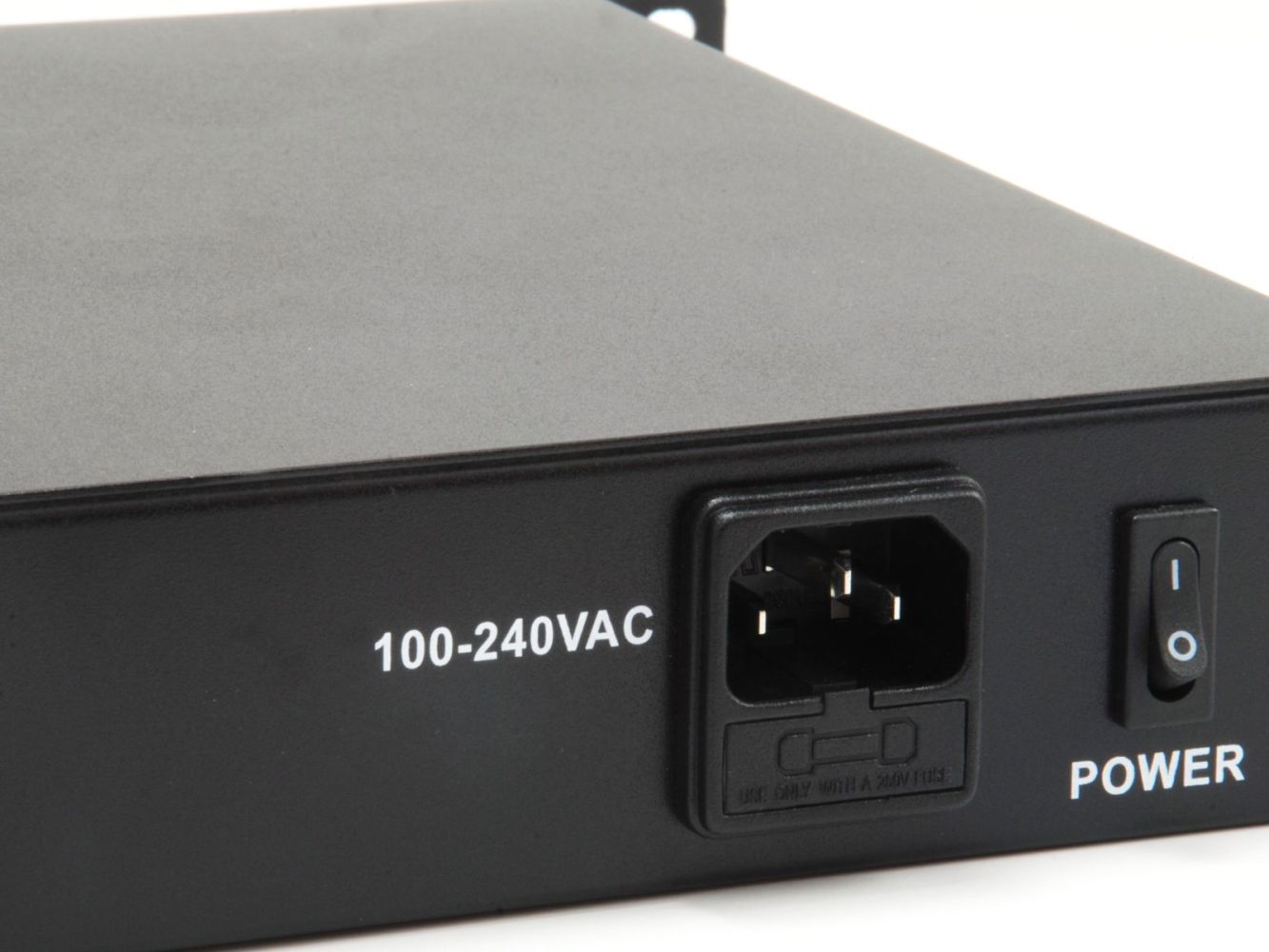

| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 56 V |
| Output power | 30 W |
| Power consumption (typical) | 150 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 44 mm |
| Height | 440 mm |
| Weight | 2.9 kg |
Questions & answers
What is the delivery time of LevelOne Switch 24x GE GEP-2421W150 48,3 cm ( 19 inch ) 150W 24xPoE?
The article LevelOne Switch 24x GE GEP-2421W150 48,3 cm ( 19 inch ) 150W 24xPoE is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne GEP-2421W150 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne Switch 24x GE GEP-2421W150 48,3 cm ( 19 inch ) 150W 24xPoE always at the best possible price. We can give you a discount of 2% on LevelOne Switch 24x GE GEP-2421W150 48,3 cm ( 19 inch ) 150W 24xPoE if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
