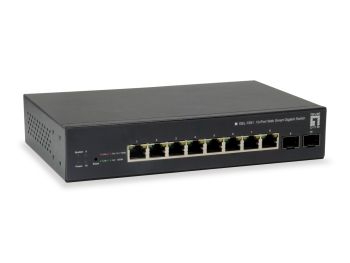

LevelOne Switch 8x GE GEP-1051 2xGSFP 70W 8xPoE
|
232,50 EUR |
|
|
( 276,68 EUR incl. VAT ) ≈ £194.60 | ≈ $260.17 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1490703 |
| Mfg Part No: | GEP-1051 |
| UPC/EAN: | 4015867205013 |
| Weight: | 2 kg |
| Certificates | |
| Certification | CE class A, FCC, VCCI, BSMI |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.9 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, Power, System |
| Safety | UL |
| Rack mounting | |
| Reset button | |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| MIB support | Y |
| Quality of Service (QoS) support | |
| Web-based management | |
| ARP inspection | |
| System event log | |
| Multicast features | |
| Multicast Listener Discovery (MLD) snooping | Y |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
| 10G support | |
| Port mirroring | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| Fast leave | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 267.95 BTU/h |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Rack mount kit | |
| Packaging data | |
| Package type | Box |
| Package width | 375 mm |
| Package depth | 270 mm |
| Package height | 85 mm |
| Package weight | 2.18 kg |
| Resource CD | |
| Performance | |
| Internal memory | 16 MB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 118824 h |
| Firmware upgradeable | |
| Plug and Play | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 80 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 70 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| Management protocols | SNMP v1/v2c/v3, Telnet |
| IPv4 & IPv6 features | IPv6 ping, IPv6 tracert, IPv6 Telnet, Dual stack IPv4/IPv6 |
| Security | |
| DHCP features | DHCP client |
| Access Control List (ACL) ingress | 256 |
| Security algorithms | SSH, SSH-2, SSL/TLS |
| Authentication type | HWTACACS+, RADIUS |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| Static port security | |
| Loop protection | |
| BPDU filtering/protection | |
| Root protection | |
| Password protection | |
| DoS attack prevention | |
| CPU defense | |
| Neighbor discovery snooping | |
| Weight & dimensions | |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 2 kg |
