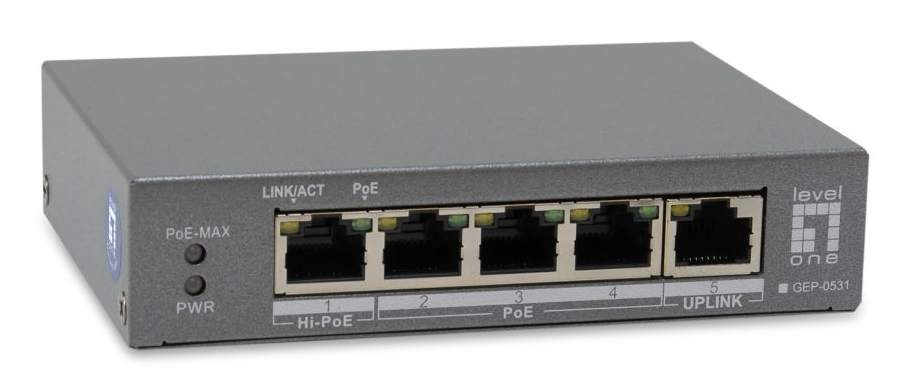

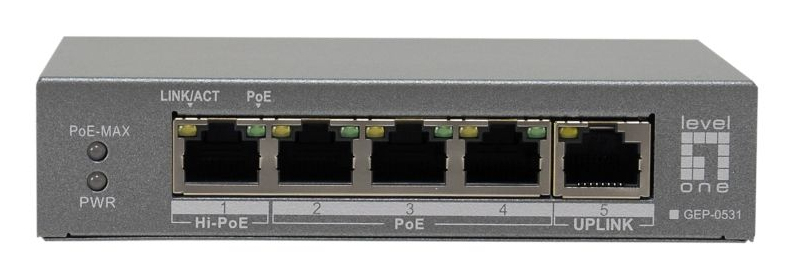

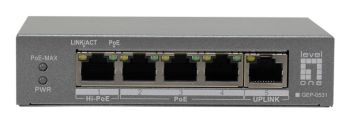

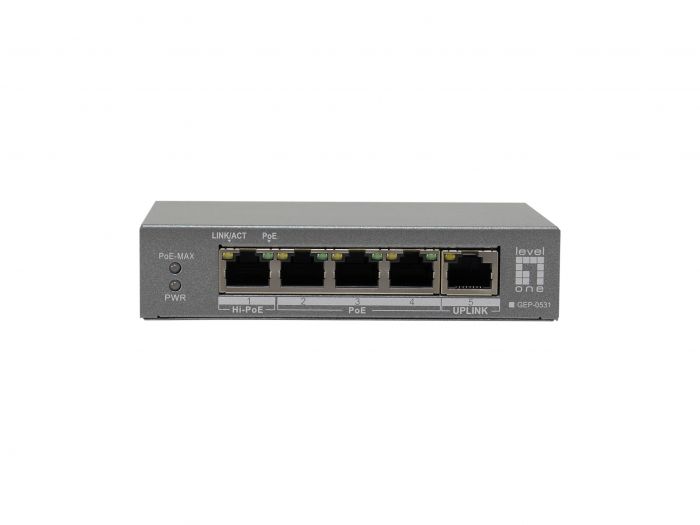

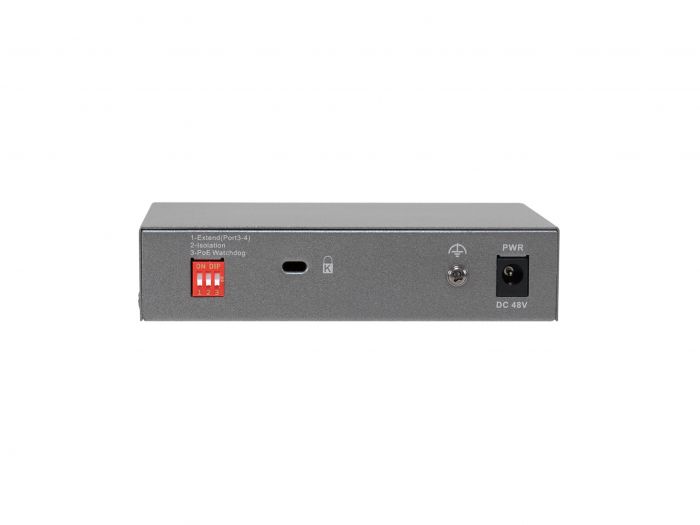

LevelOne GEP-0531 PoE+Switch 3xGE PoE/1xHi-PoE 60W unmanaged plastic
|
81,07 EUR |
|
|
( 96,47 EUR incl. VAT ) ≈ £67.86 | ≈ $90.72 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 631640 |
| Mfg Part No: | GEP-0531 |
| UPC/EAN: | 4015867241103 |
| Weight: | 1.062 kg |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), UL |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Packet buffer memory | 0.125 MB |
| Design | |
| Form factor | Desktop/Wall-Mounting |
| Product colour | Grey |
| LED indicators | Link, ACT, Power |
| Market segment | Business |
| Rack mounting | |
| Stackable | |
| Wall mountable | |
| Logistics data | |
| Country of origin | China |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Copper ethernet cabling technology | 1000BASE-T, 10BASE-T, 100BASE-TX |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 10G support | |
| Full duplex | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -45 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Other features | |
| Packaging content | Declaration of Conformity |

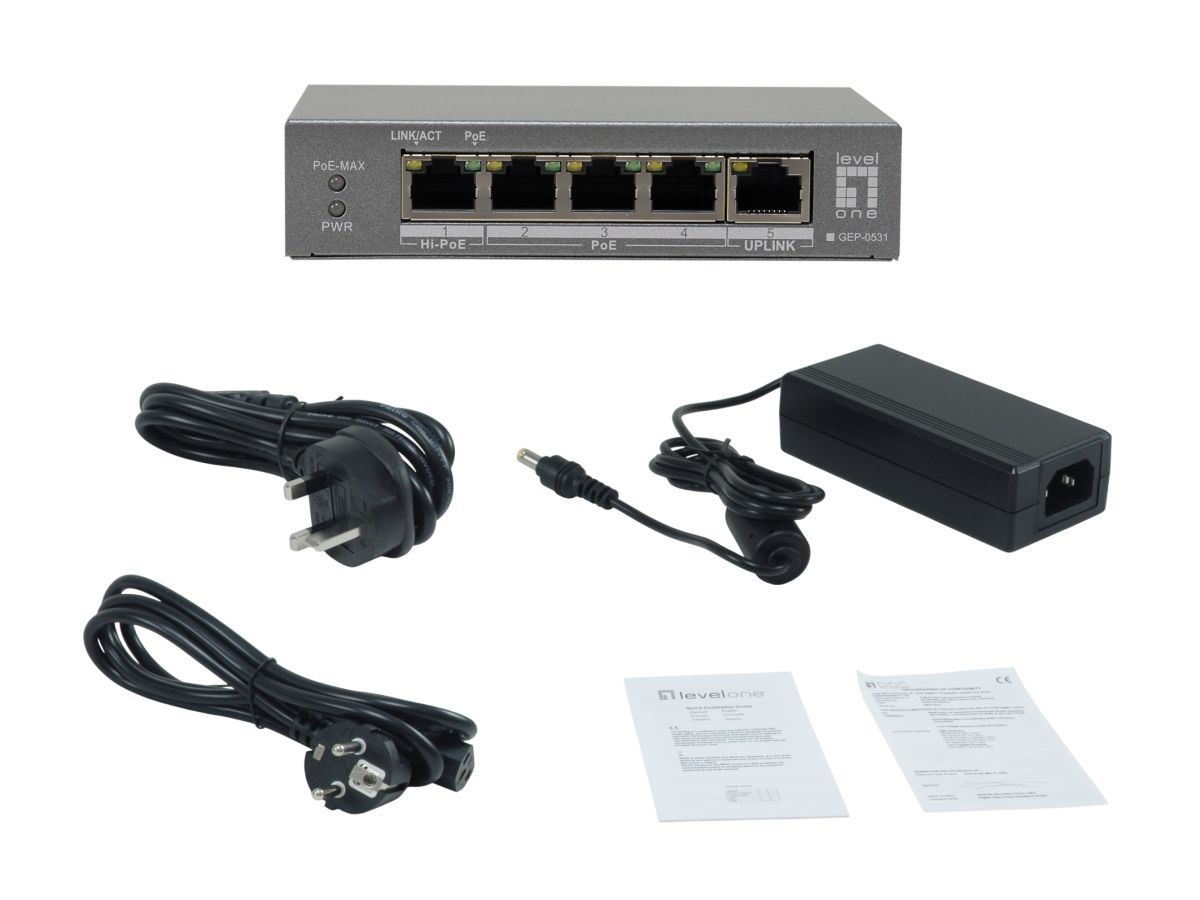

| Packaging content | |
| Cables included | Power |
| Quick start guide | |
| Performance | |
| Memory type | Flash |
| Plug and Play | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Power | |
| Power source | DC |
| Number of power supply units | 1 |
| DC input voltage | 48 V |
| Input current | 1.36 A |
| Power consumption (typical) | 5 W |
| Surge protection voltage | 6 kV |
| Power supply included | |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet (PoE) ports quantity | 3 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) | |
| Weight & dimensions | |
| Width | 121 mm |
| Depth | 88.1 mm |
| Height | 27.6 mm |
| Weight | 270 g |
Questions & answers
What is the delivery time of LevelOne GEP-0531 PoE+Switch 3xGE PoE/1xHi-PoE 60W unmanaged plastic?
The article LevelOne GEP-0531 PoE+Switch 3xGE PoE/1xHi-PoE 60W unmanaged plastic is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne GEP-0531 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne GEP-0531 PoE+Switch 3xGE PoE/1xHi-PoE 60W unmanaged plastic always at the best possible price. We can give you a discount of 2% on LevelOne GEP-0531 PoE+Switch 3xGE PoE/1xHi-PoE 60W unmanaged plastic if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
