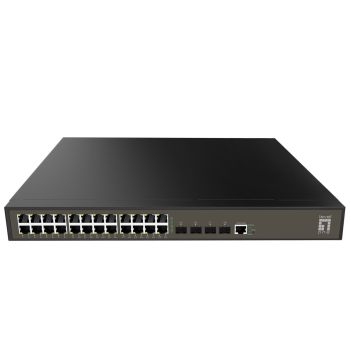

LevelOne Switch 24x GE GEL-2871 4xGSFP 48,3 cm ( 19 inch )
|
352,48 EUR |
|
|
( 419,45 EUR incl. VAT ) ≈ £295.03 | ≈ $394.43 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1991728 |
| Mfg Part No: | GEL-2871 |
| UPC/EAN: | 4015867228579 |
| Weight: | 3.357 kg |
| Certificates | |
| Certification | FCC Part 15 Subpart B CE Mark EN IEC 62368-1 EN 55032 EN 55035 EN 61000-3-2/3 RoHS |
| Data transmission | |
| Switching capacity | 1000 Gbit/s |
| MAC address table | 16000 entries |
| Jumbo frames | 10000 |
| Packet buffer memory | 12 MB |
| Static route | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Rack mounting | |
| Stackable | |
| Logistics data | |
| Country of origin | China |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | |
| ARP inspection | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet LAN data rates | 1000 Mbit/s |
| QinQ implementation | Flexible QinQ, QinQ, Basic QinQ |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN |
| 10G support | |
| Port mirroring | |
| Policy-based routing | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 136.48 BTU/h |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-LHX, 1000BASE-LX, 1000BASE-SX, 1000BASE-ZX |
| Switching optical modules type | Gigabit Ethernet |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Packaging data | |
| Package type | Box |
| Package width | 525 mm |
| Package depth | 390 mm |
| Package height | 95 mm |
| Package weight | 3.7 kg |
| Rack rails | |
| Performance | |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Noise level | 45 dB |
| Mean time between failures (MTBF) | 534.057 h |
| Firmware upgradeable | |
| Telnet | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| Power connector | AC-in jack |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP client, DHCP snooping |
| Authentication | MAC-based authentication, Port-based authentication |
| Authentication type | RADIUS |
| Access Control List (ACL) | |
| IGMP snooping | |
| SSH/SSL support | |
| IP-MAC-Port binding | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 245 mm |
| Height | 44 mm |
| Weight | 2.77 kg |
