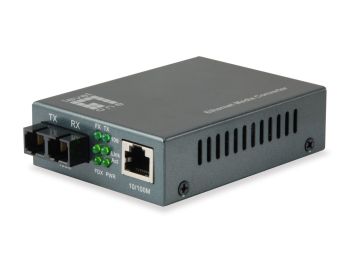

LevelOne converter FVT-1104 10/100TX>100FX 60km
|
64,05 EUR |
|
|
( 76,22 EUR incl. VAT ) ≈ £53.61 | ≈ $71.67 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1199062 |
| Mfg Part No: | FVT-1104 |
| UPC/EAN: | 4015867208069 |
| Weight: | 0.392 kg |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE |
| Features | |
| Product colour | Black |
| Internal | |
| LED indicators | |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 305 mm |
| Master (outer) case gross weight | 32 kg |
| Products per master (outer) case | 40 pc(s) |
| Network | |
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Fiber ethernet cabling technology | 100BASE-FX |
| Duplex system | Full |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Store-and-forward | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Packaging content | |
| AC adapter included | |
| Quick installation guide | |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 150 mm |
| Package height | 58 mm |
| Package weight | 300 g |
| Package type | Box |
| Performance | |
| Maximum transfer distance | 60000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Mean time between failures (MTBF) | 100000 h |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | |
| Power | |
| Input voltage | 5 V |
| Input current | 1 A |
| Weight & dimensions | |
| Width | 94 mm |
| Depth | 71 mm |
| Height | 26 mm |
| Weight | 200 g |
Questions & answers
What is the delivery time of LevelOne converter FVT-1104 10/100TX>100FX 60km?
The article LevelOne converter FVT-1104 10/100TX>100FX 60km is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne FVT-1104 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne converter FVT-1104 10/100TX>100FX 60km always at the best possible price. We can give you a discount of 2% on LevelOne converter FVT-1104 10/100TX>100FX 60km if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
