LevelOne FPS-1032 Print server 1xUSB

Your rating:
Average rating
product review for LevelOne FPS-1032 Print server 1xUSB
( 0 / 5 ) 0 ratings
LevelOne FPS-1032
This image may differ from the desired article.
LevelOne FPS-1032LevelOne FPS-1032LevelOne FPS-1032LevelOne FPS-1032LevelOne FPS-1032LevelOne FPS-1032LevelOne FPS-1032
110,10 EUR
( 131,02 EUR incl. VAT )
≈ £91.71  |  ≈ $120.78
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >50 pieces
1x LevelOne FPS-1032 Print server 1xUSB
Datasheet:file_download Download
Lieske Part No.:687182
Mfg Part No: FPS-1032
UPC/EAN: 4015867142233
Weight:0.52 kg

Product information for LevelOne FPS-1032:

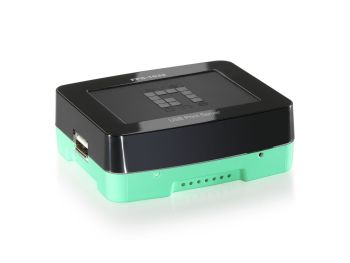

The LevelOne FPS-1032 is an external print server that makes USB printers available on a network. It enables shared access to a printer over an Ethernet-LAN network and connects the printer to the network via a USB 2.0 interface (Type-A). The device is compact and suitable for small to medium offices, schools, or other environments where multiple users need access to a single printer.

Applications
This print server is designed for use in local area networks (LAN), where printers are connected via a 10/100 Mbit/s Ethernet-LAN interface. It is particularly suitable when a USB printer, not directly network-integrated, needs to be made accessible to multiple users. Support for various operating systems and network protocols makes it flexible for use in heterogeneous IT environments.

Functions and Features in Detail
The FPS-1032 features a USB 2.0 interface (Type-A) for connecting to the printer and an RJ-45 port for network connectivity. Integrated LED indicators for activity, link, power, and status allow for quick visual inspection of the device’s operational state. Support for IPP (Internet Printing Protocol) and DHCP client simplifies configuration and network integration. The device can be managed via a web-based management interface, enabling configuration and monitoring through a web browser.

Technology Explained Simply
The print server operates according to the IEEE 802.3 and IEEE 802.3u standards, ensuring compatibility with Fast Ethernet networks. Data transfer rates reach up to 100 Mbit/s, which is sufficient for printing operations. Power supply is via a DC connector, with the power adapter provided externally. Support for protocols such as TCP/IP, IPX, NetBEUI, AppleTalk, LPR, RAW TCP, and SMB over TCP/IP enables integration into various network environments. The per-device polling mechanism ensures that print jobs are correctly detected and processed.

Compatibility and Accessories
The print server is compatible with a wide range of operating systems, including Windows 2000, Windows ME, Windows NT, Windows XP, Windows Vista, Windows 7 (all variants), Mac OS 8.1 to 9.2, Linux, and Novell NetWare (versions 3.x to 6.x). Support for SMB over TCP/IP and LPR enables use in Windows and Unix environments. The use of IPP and Windows Print Monitor Technology supports monitoring of print jobs.

Installation and Mounting
Installation is performed via a web browser or an included configuration utility. Settings can be adjusted through the web-based management interface, making setup accessible even for less technically experienced users. Physical installation requires only connecting the printer via USB and connecting to the network via the RJ-45 cable. The device is powered by an external power supply.

Operational Advantages
The LevelOne FPS-1032 offers a reliable and cost-effective solution for integrating USB printers into a network. Support for multiple operating systems and protocols increases flexibility. The web-based management and LED indicators simplify maintenance and troubleshooting. Integration into existing networks requires no additional software installation on client devices, as printing functions are handled over the network. The device is designed for indoor use, with an operating temperature range of 0 to 50 °C and relative humidity of 0 to 50 % during operation. Storage conditions are -5 to 65 °C and relative humidity of 0 to 70 %.

The device is available in black and green and complies with CE and FCC Class B certifications. Manufacturing takes place in Taiwan.

Certificates
CertificationCE, FCC Class B
Features
Product colourBlack, Green
LED indicatorsActivity, Link, Power, Status
Country of originTaiwan
InternalNo
IPP supportYes
DHCP clientYes
Network
Network connection typeEthernet LAN
Networking standardsIEEE 802.3, IEEE 802.3u
Ethernet LAN data rates10,100 Mbit/s
Operational conditions
Operating relative humidity (H-H)0 - 50%
Storage temperature (T-T)-5 - 65 °C
Storage relative humidity (H-H)0 - 70%
Operating altitude0 - 80 m
Packaging data
Package width152 mm
Package depth219 mm
Package height66 mm
Package weight560 g
Ports & interfaces
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity1
USB connector typeUSB Type-A
DC-in jackYes
Protocols
Supported network protocolsTCP/IP, IPX, NetBEUI, AppleTalk, LPR, RAW TCP, SMB over TCP/IP
Web-based managementYes
Software
Windows operating systems supportedWindows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows ME, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vist
Mac operating systems supportedMac OS 8.1, Mac OS 8.5, Mac OS 8.6, Mac OS 9.0, Mac OS 9.1, Mac OS 9.2
Other operating systems supportedNovell NetWare 3.x, Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x
Linux operating systems supportedYes
Weight & dimensions
Width64.8 mm
Depth73.2 mm
Height24.9 mm
Weight520 g


Product data sheet
Datasheet for LevelOne FPS-1032, EAN: 4015867142233

Questions & answers

What is the delivery time of LevelOne FPS-1032 Print server 1xUSB?

The article LevelOne FPS-1032 Print server 1xUSB is currently in stock

According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne FPS-1032 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you LevelOne FPS-1032 Print server 1xUSB always at the best possible price. We can give you a discount of 2% on LevelOne FPS-1032 Print server 1xUSB if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
