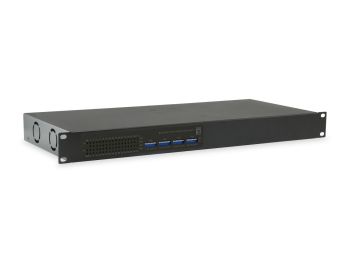

LevelOne Switch 32x FE FGP-3400W380 2xGE 48,3 cm ( 19 inch ) 380W 32xPoE
|
742,84 EUR |
|
|
( 883,98 EUR incl. VAT ) ≈ £621.76 | ≈ $831.24 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1490673 |
| Mfg Part No: | FGP-3400W380 |
| UPC/EAN: | 4015867203255 |
| Weight: | 2.8 kg |
| Certificates | |
| Certification | FCC Class A, CE |
| Data transmission | |
| Switching capacity | 10.4 Gbit/s |
| MAC address table | 32000 entries |
| Jumbo frames | 16000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 8 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | LAN, PoE, Power, Uplink |
| Regulatory Approvals | EMI:EN55032:2012+AC:2013, EN55022:2010+AC:2011, AS/NZS CISPR 22 Amdt. (2010), EN61000-3-2:2014, EN61000-3-3:2013;EMS: EN55024:2010, IEC61000-4-2:2008, IEC61000-4 3:2006+A1:2007+A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004 |
| Rack mounting | |
| On/off switch | |
| Logistics data | |
| Country of origin | Taiwan |
| Master (outer) case width | 510 mm |
| Master (outer) case length | 555 mm |
| Master (outer) case height | 280 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 17.8 kg |
| Products per master (outer) case | 5 pc(s) |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7 |
| Full duplex | |
| Flow control support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Rack mount kit | |
| Packaging data | |
| Package type | Box |
| Package width | 255 mm |
| Package depth | 534 mm |
| Package height | 95 mm |
| Package weight | 3.3 kg |
| Rubber feet | |
| Performance | |
| Mean time between failures (MTBF) | 74000 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 32 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 32 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 380 W |
| Power over Ethernet (PoE) | |
| Weight & dimensions | |
| Width | 195 mm |
| Depth | 480 mm |
| Height | 45 mm |
| Weight | 2.8 kg |
