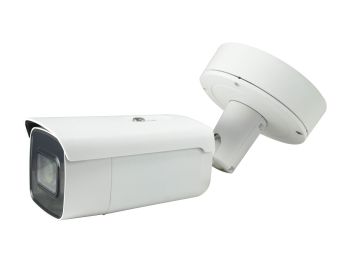

LevelOne IPCam FCS-5096 Z 4x Fix Out 2MP H.264 IR 16W PoE
|
325,23 EUR 325,28 EUR |
|
|
( 387,02 EUR incl. VAT ) ≈ £272.22 | ≈ $363.93 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1490014 |
| Mfg Part No: | FCS-5096 |
| UPC/EAN: | 4015867205334 |
| Weight: | 1.893 kg |
| Audio | |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio codecs | G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM |
| Camera | |
| Minimum illumination | 0.005 lx |
| Lens viewing angle, horizontal | 105° |
| Lens viewing angle, vertical | 56° |
| Lens viewing angle, diagonal | 126° |
| White balance | Auto |
| Camera shutter speed | 1/3 - 1/100000 s |
| Design | |
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| LED indicators | Power |
| Protection features | Dust resistant, Water resistant |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Country of origin | China |
| Image sensor | |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Progressive scan | |
| Lens system | |
| Optical zoom | 4.3x |
| Number of lenses | 1 |
| Focal length range | 2.8 - 12 mm |
| Zoom capability | |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| Master (outer) case width | 570 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 595 mm |
| Master (outer) case gross weight | 15.5 kg |
| Products per master (outer) case | 9 pc(s) |
| Management features | |
| Behavior analysis | Intrusion detection, Line crossing detection |
| Reset button | |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3at |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, QoS, IPv6, Bonjour |
| Cabling technology | 10/100Base-T(X) |
| Number of users | 32 user(s) |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Quality of Service (QoS) support | |
| Night vision | |
| Night vision distance | 50 m |
| LED type | IR |
| Night vision | |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Other features | |
| Browser supported | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Packaging content | |
| Number of cameras | 1 |
| Screws included | |
| Resource CD | |
| Packaging data | |
| Package width | 185 mm |
| Package depth | 200 mm |
| Package height | 385 mm |
| Package weight | 2.28 kg |
| Package type | Box |
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Certification | CE/FCC |
| PTZ control | |
| Wide Dynamic Range (WDR) | |
| Day/night mode | |
| Infrared (IR) cut-off filter | |
| Alarm input/output | |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Composite video out | 1 |
| Interface | RJ-45 |
| Terminal block port | |
| DC-in jack | |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 15.5 W |
| Power consumption (Power over Ethernet (PoE)) | 17.5 W |
| DC output voltage | 12 |
| DC output current | 1.3 A |
| Security | |
| Intelligent Video Surveillance (IVS) system features | Face detection |
| Password protection | |
| Video motion detection | |
| Anti-flicker | |
| Heartbeat | |
| Mirror | |
| Digital watermark | |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
| Maximum memory card size | 128 GB |
| Built-in HDD | |
| Card reader integrated | |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | AVI |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Supported video modes | 240p, 360p, 480p, 720p, 960p, 1080p |
| Frame rate | 60 fps |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| 3D NR (Noise Reduction) | |
| Full HD | |
| Privacy masking | |
| Back Light Compensation (BLC) | |
| Weight & dimensions | |
| Width | 332.7 mm |
| Depth | 332.7 mm |
| Height | 144.1 mm |
| Weight | 1.89 kg |
Questions & answers
What is the delivery time of LevelOne IPCam FCS-5096 Z 4x Fix Out 2MP H.264 IR 16W PoE?
The article LevelOne IPCam FCS-5096 Z 4x Fix Out 2MP H.264 IR 16W PoE is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne FCS-5096 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne IPCam FCS-5096 Z 4x Fix Out 2MP H.264 IR 16W PoE always at the best possible price. We can give you a discount of 2% on LevelOne IPCam FCS-5096 Z 4x Fix Out 2MP H.264 IR 16W PoE if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
