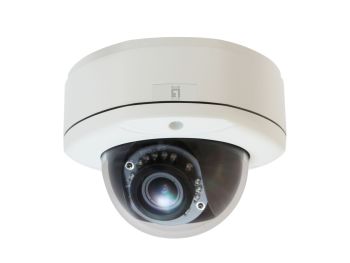

LevelOne IPCam FCS-3082 Dome Out 3MP H.264 IR6,5W PoE
|
228,09 EUR |
|
|
( 271,43 EUR incl. VAT ) ≈ £190.91 | ≈ $255.23 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 248625 |
| Mfg Part No: | FCS-3082 |
| UPC/EAN: | 4015867189849 |
| Weight: | 1.032 kg |
| Audio | |
| Audio system | 2-way |
| Voice codecs | G.711 |
| Built-in microphone | |
| Camera | |
| Minimum illumination | 0.1 lx |
| Lens viewing angle, horizontal | 70.5° |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/5 - 1/10000 s |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| LED indicators | Power |
| Protection features | Vandal proof |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Country of origin | Taiwan |
| Weatherproof | |
| Image sensor | |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Sensor type | CMOS |
| Progressive scan | |
| Lens system | |
| Number of lenses | 1 |
| Focal length range | 2.8 - 12 mm |
| Focus | Manual |
| Focus adjustment | 1.4 |
| Zoom capability | |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| Master (outer) case width | 405 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case height | 367 mm |
| Master (outer) case gross weight | 12.2 kg |
| Products per master (outer) case | 8 pc(s) |
| Management features | |
| Reset button | |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Night vision | |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 15 |
| Night vision | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Packaging content | |
| Number of cameras | 1 |
| Screws included | |
| Quick installation guide | |
| Resource CD | |
| Packaging data | |
| Package width | 197 mm |
| Package depth | 197 mm |
| Package height | 179 mm |
| Package weight | 353 g |
| Package type | Box |
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Certification | CE, FCC, ONVIF, IK10, NEMA 4X |
| PTZ control | |
| Wide Dynamic Range (WDR) | |
| Day/night mode | |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Interface | RJ-45 |
| Microphone in | |
| Terminal block port | |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 6.49 W |
| Power over Ethernet (PoE) | |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 64 GB |
| Built-in HDD | |
| Card reader integrated | |
| Sustainability | |
| Compliance certificates | RoHS |
| System requirements | |
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vis |
| Technical details | |
| Back light compensation method | Y |
| Number of video streams | 2 |
| Iris | |
| Video | |
| Maximum resolution | 2048 x 1536 pixels |
| Total megapixels | 3 MP |
| Video formats supported | Raw |
| Video compression formats | H.264, M-JPEG |
| Supported graphics resolutions | 320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA) |
| Supported video modes | 240p, 480p, 720p, 1080p |
| Frame rate | 30 fps |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Video streaming | |
| Noise reduction | |
| Automatic gain control | |
| Full HD | |
| Back Light Compensation (BLC) | |
| Weight & dimensions | |
| Width | 151 mm |
| Depth | 117 mm |
| Height | 151 mm |
| Weight | 1.03 kg |
