Lenovo 12RQ000XGE ThinkCentre M75q G5 Tiny R5-8500GE 16/512 WiFi without OS content_copy

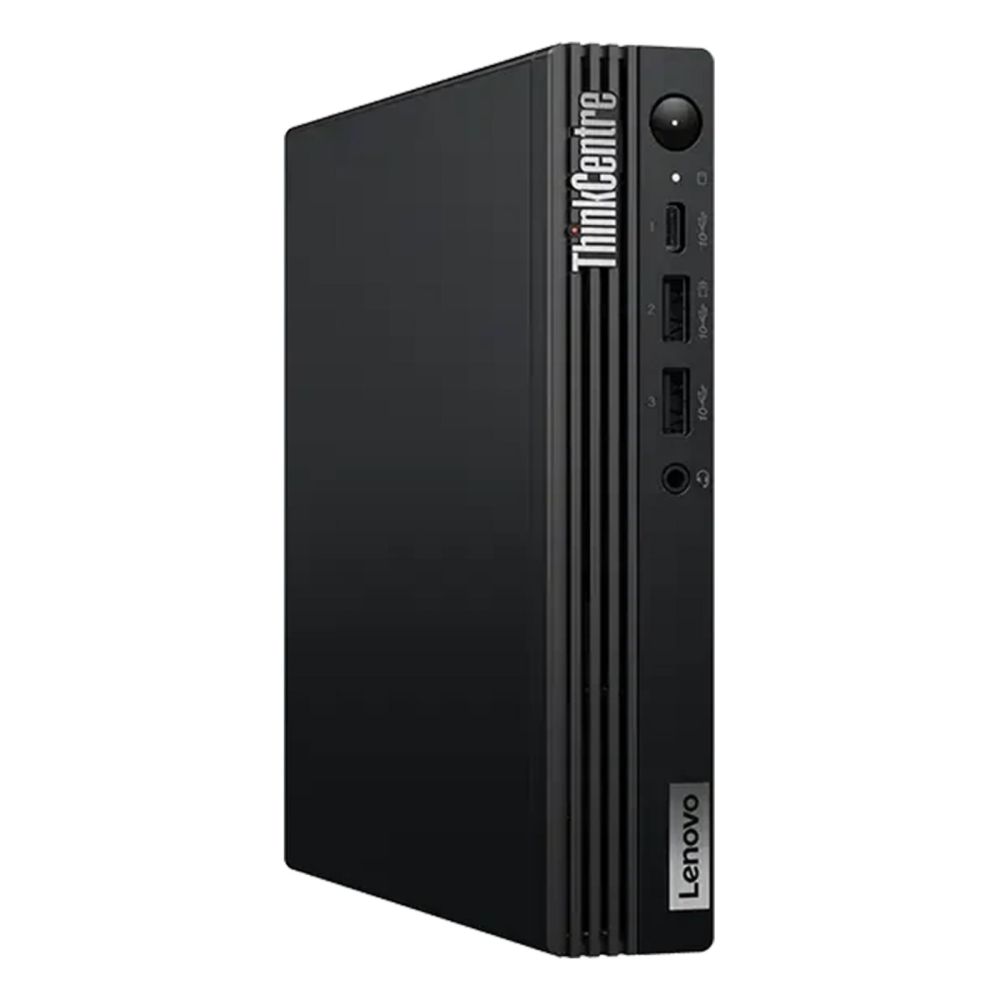

The Lenovo ThinkCentre M75q Gen 5 is a compact mini-PC designed for use in office environments and workstations. With a housing volume of 1 litre and dimensions of 179 mm (width) × 182.9 mm (depth) × 36.5 mm (height), it fits easily on small work surfaces or behind monitors. The device is black and features a Kensington security slot, enabling physical theft protection. It is delivered with a wired keyboard and a wired mouse, ready for immediate use.

Applications

The ThinkCentre M75q Gen 5 is particularly suitable for offices, call centres, administrations, and other environments requiring a compact, powerful workstation. The integrated graphics solution and support for up to three displays make it suitable for tasks in image processing, presentations, or multitasking. The robust construction and certification to MIL-STD-810H (including for temperature shock, vibration, and dust) enhance reliability in demanding work environments.

Features and Specifications in Detail

The system is equipped with an AMD Ryzen™ 5 8500GE processor, featuring six cores and twelve threads. The base clock speed is 3.4 GHz, with the processor capable of reaching up to 5.0 GHz boost frequency when needed. This ensures smooth handling of multiple applications simultaneously. The integrated AMD Radeon 740M graphics processor supports modern graphics applications and enables smooth video and image display. The integrated graphics are suitable for demanding workflows such as image editing or CAD software.

Technology Explained Simply

The ThinkCentre M75q Gen 5 features 16 GB DDR5-SDRAM with a clock speed of 5200 MHz, installed in a SO-DIMM module. Memory capacity can be expanded up to 32 GB, with two SO-DIMM slots available. The memory architecture supports dual-channel mode, increasing data transfer rates. As storage, a 512 GB SSD in M.2-2280 format with PCIe 4.0 x4 interface and NVMe technology is installed. This combination ensures fast boot times and short file access times. The SSD supports Opal 2.0 encryption, enabling hardware-based encryption.

Compatibility and Accessories

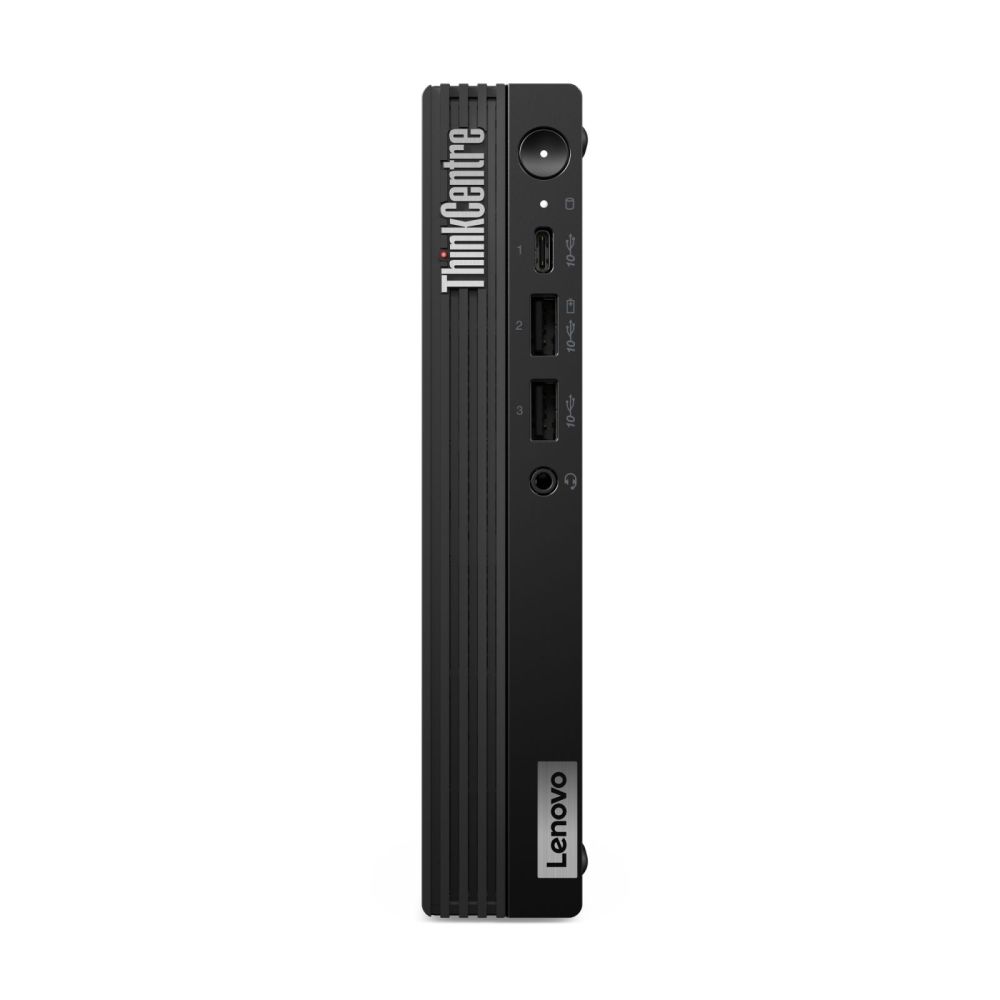

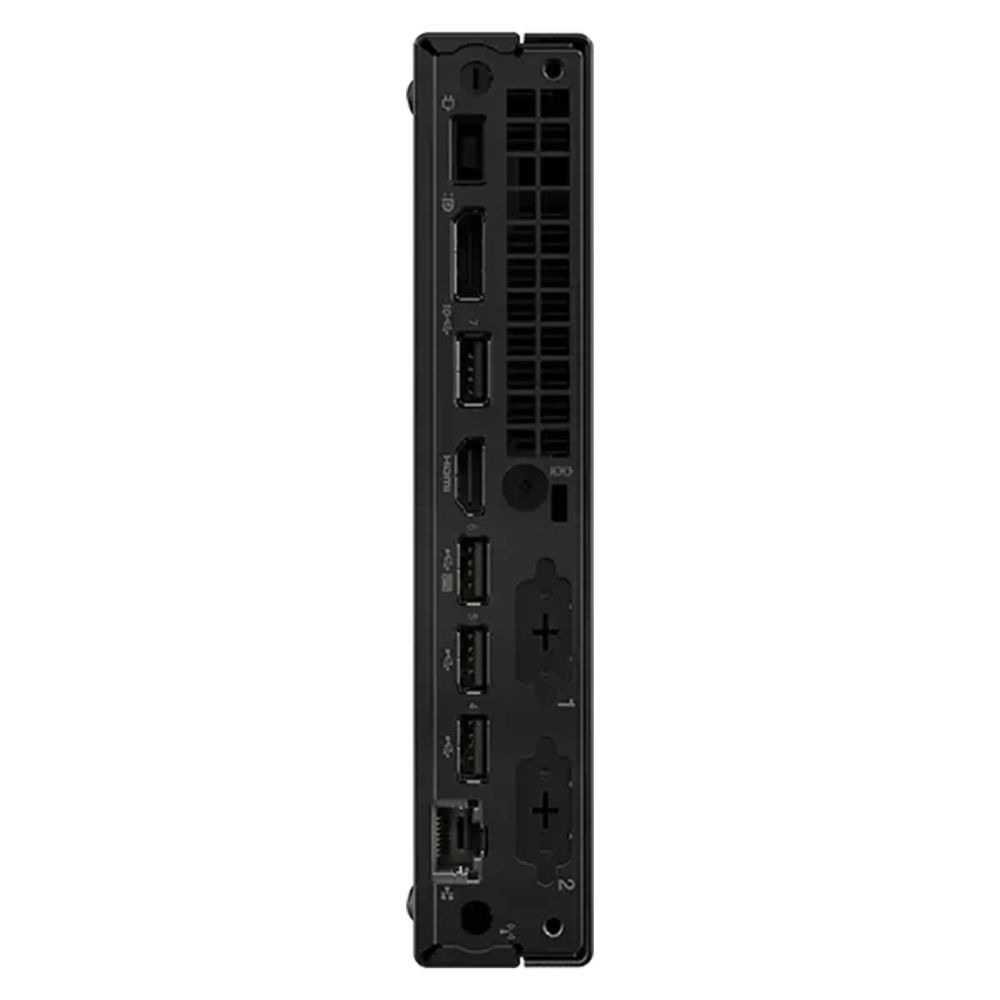

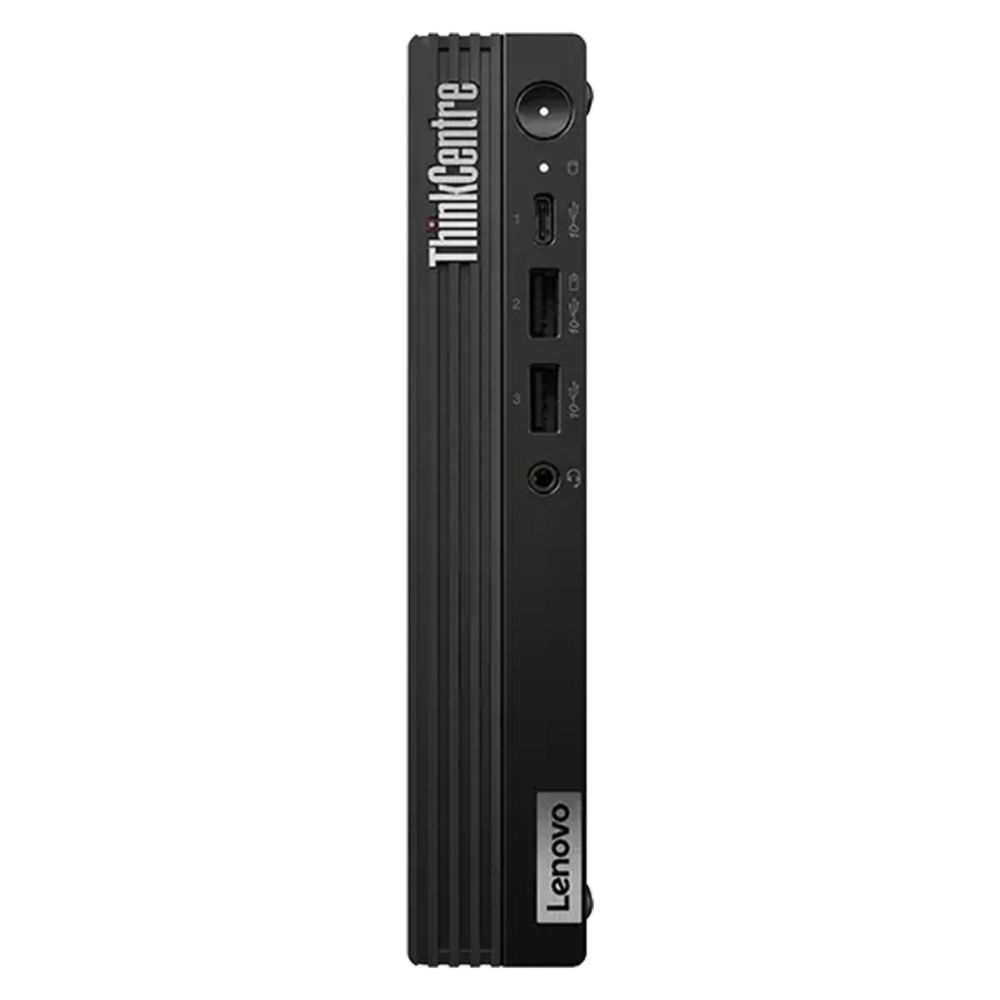

The device supports a wide range of connections. On the front panel, there is a USB-C port (USB 3.2 Gen 2, 10 Gbps), two USB-A ports (USB 3.2 Gen 2, 10 Gbps), one of which features Always-On functionality and 5V@2.1A charging capability, as well as a combined headphone/microphone jack (3.5 mm). On the rear panel, there is an additional USB-A port (USB 3.2 Gen 2), three USB 2.0 ports, an HDMI 2.1 port, a DisplayPort 1.4 port, an RJ-45 Ethernet port, and a serial port. Network functions include Wi-Fi 6E (802.11ax, 2x2) and Bluetooth 5.3, enabling stable wireless connectivity. Power supply is provided by a 65 W power adapter with an input range of 100–240 V and 50/60 Hz.

Mounting and Installation

The ThinkCentre M75q Gen 5 can be positioned either vertically or horizontally, allowing for flexible placement. The housing is tool-free to open, simplifying maintenance and upgrades. An integrated VESA mounting screw hole allows the device to be attached to a monitor or wall mount. Configuration is performed after physical installation via the provided connections.

Operational Advantages

The ThinkCentre M75q Gen 5 offers an excellent combination of performance and space-saving. The integrated graphics and support for up to three displays make it a powerful workstation. Security features, including a discrete TPM 2.0 chip (TCG-certified, FIPS 140-2-certified), enhance protection against unauthorized access. Certification to TCO 9.0 and RoHS demonstrates environmental compatibility and compliance with environmental standards. The warranty includes three years of onsite service, ensuring quick maintenance and repair. The device is designed for use in professional environments where reliability, security, and efficiency are paramount.

Audio
Audio chip	Realtek ALC233
Audio system	High Definition Audio
Certificates
Certification	TCO, RoHS
Connections and interfaces
Number of USB 2.0 ports	3
USB 3.2 Gen 2 (3.1 Gen 2) number of Type A connectors	3
USB 3.2 Gen 2 (3.1 Gen 2) number of Type C connectors	1
Number of DisplayPort connectors	1
Number of HDMI connectors	1
HDMI version	2.1
Number of Ethernet LAN ports (RJ-45)	1
Number of serial interfaces	1
Combined headphone/microphone connector
Design
Housing type	Mini PC
Colour name	Black
Volume (l)	1 l
Slot type cable lock	Kensington
Product colour	Black
Cable lock slot
Display
Display included
Energy
Current supply	65 W
Power supply - input voltage	100 - 240 V
Power supply - input frequency	50/60 Hz
Functions
Product type	Mini-PC
Trusted Platform Module (TPM)
Graphics
Separate graphics card model	Not available
Manufacturer of integrated GPU	AMD
On-board graphics adapter family	AMD Radeon
Integrated graphics card model	AMD Radeon 740M
Separate graphics adapter
Integrated graphics adapter
Keyboard
Keyboard connectivity	cable-bound
Memory
Memory capacity	16 GB
Maximum RAM memory	32 GB
Internal memory type	DDR5-SDRAM
Memory layout	1 x 16 GB
Memory card slots	2x SO-DIMM
Memory clock frequency	5200 MHz
Memory medium
Total memory capacity	512 GB
Storage media	SSD
Total SSD capacity	512 GB
Number of installed SSDs	1
SSD storage capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive - type
NVMe
Integrated card reader
Network
Ethernet LAN data transfer rates	100,1000 Mbit/s
Top WLAN standard	Wi-Fi 6E (802.11ax)
WLAN standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Bluetooth version	5.3
Ethernet/LAN
WLAN
Bluetooth
Processor
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5
Processor	8500GE
Number of processor cores	6
Processor threads	12
Processor boost frequency	5 GHz
Processor clock frequency	3.4 GHz
Scope of delivery
Mouse connectivity	cable-bound
Mouse included
Keyboard included
Software
Installed operating system
Weight and dimensions
Width	179 mm
Depth	182,9 mm
Height	36,5 mm
Weight	1,25 kg

---
