Lenovo 12NAGAT1EU ThinkCentre TiO 24 G5 60,5 cm ( 23,8 inch ) FHD HDMI/DP CAM
|
158,52 EUR 158,70 EUR |
|
|
( 188,64 EUR incl. VAT ) ≈ £132.36 | ≈ $177.70 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >1000 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2076035 |
| Mfg Part No: | 12NAGAT1EU |
| UPC/EAN: | 0196804349824 |
| Weight: | 9.1 kg |
| Type: | MNTR |
Product information for Lenovo 12NAGAT1EU:

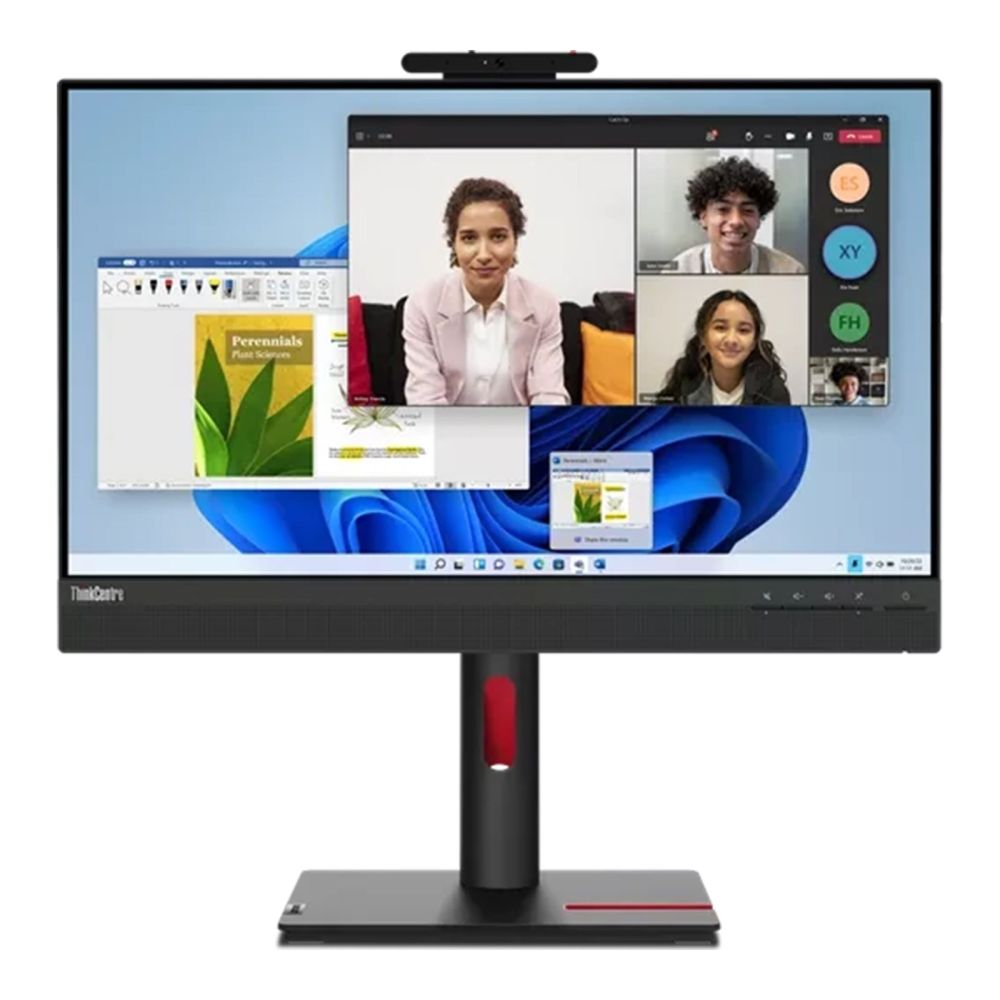

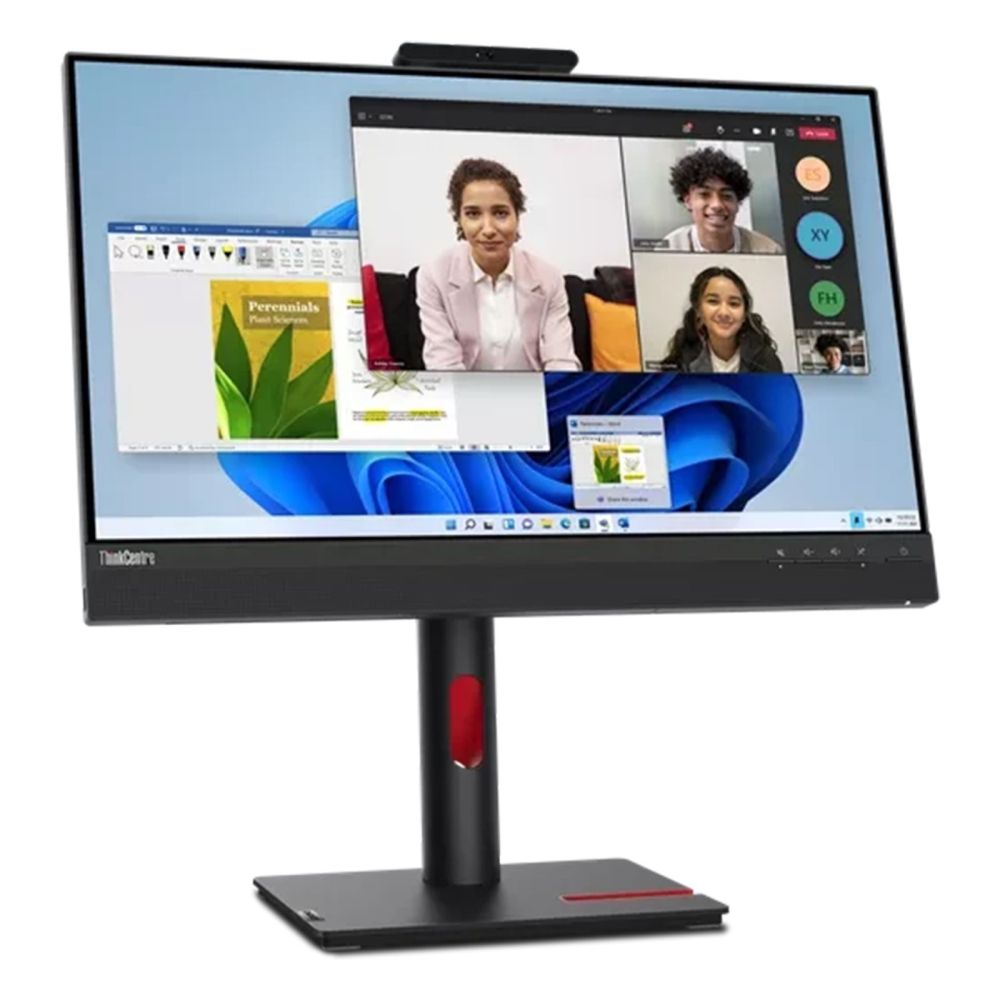

The Lenovo ThinkCentre Tiny-In-One 24 Gen 5 is a 23.8-inch business monitor with Full HD resolution, specifically designed for use with compatible Lenovo ThinkCentre Tiny systems. The device features an IPS panel with a screen diagonal of 60.5 cm (23.8 inches) and a resolution of 1920 x 1080 pixels in a 16:9 format. The display technology is based on LED backlighting with W-LED, enabling uniform and energy-efficient brightness distribution. The typical brightness is 250 cd/m², sufficient for office applications. Contrast ratios are 1000:1 (typical) and 3000000:1 (dynamic), with dynamic contrast control enhancing image depth. Response time is 6 ms in standard mode and 4 ms in fast mode, ensuring smooth image reproduction. The refresh rate is fixed at 60 Hz, and viewing angles are 178° horizontally and vertically, providing wide visibility from various positions. The color palette includes 16.7 million colors with an 8-bit color depth and 99 % sRGB coverage, supporting accurate color representation. The surface is anti-glare (non-reflective) to minimize reflections.
Applications
The monitor is designed for use in office environments, particularly in combination with Lenovo ThinkCentre Tiny systems. It is suitable for general office work, presentations, video conferencing, and multitasking. Integrated features such as a webcam, microphone, and speakers reduce the need for additional peripherals. Ergonomic adjustment options support customizable working positions.
Functions and Equipment in Detail

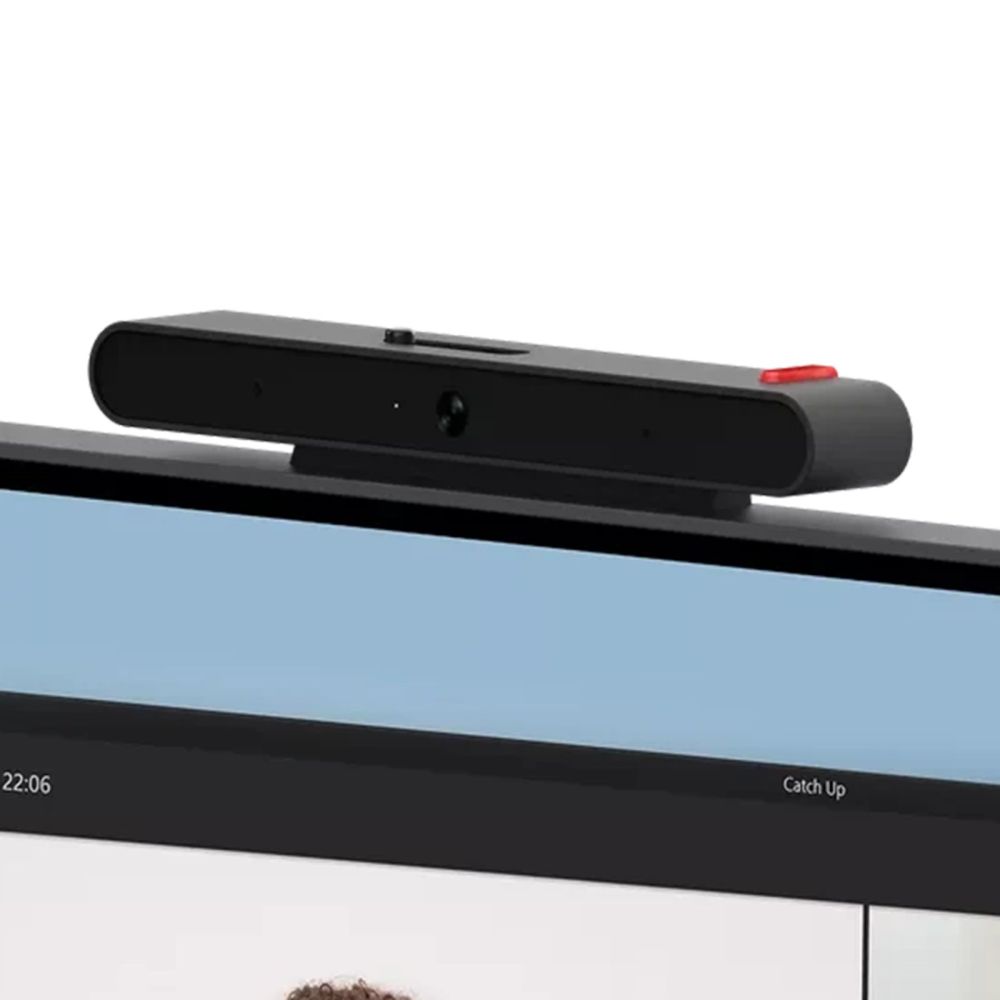

The device includes an integrated Full HD webcam, built-in microphone, and two built-in speakers with an RMS power of 6 W (3 W per speaker). These components enable direct use for video conferencing and communication. An integrated USB hub with USB 3.2 Gen 1 (3.1 Gen 1) provides an upstream port (USB Type-B) and a downstream USB-A port, simplifying the connection of peripheral devices. The Low-Blue-Light technology reduces blue light emission, which can help reduce eye strain. The surface is anti-glare (non-reflective) to minimize reflections.
Technology Explained Simply
The IPS panel (In-Plane Switching) ensures uniform color reproduction and wide viewing angles, which is particularly beneficial for shared use or working with multiple screens. The LED backlighting with W-LED (White LED) provides uniform brightness distribution and lower energy consumption. The response time of 6 ms (standard) and 4 ms (fast) is sufficient for office applications to avoid screen flickering. The brightness of 250 cd/m² is suitable for indoor environments, while the 99 % sRGB coverage ensures accurate color representation. The anti-glare surface reduces glare effects caused by ambient light.
Compatibility and Accessories

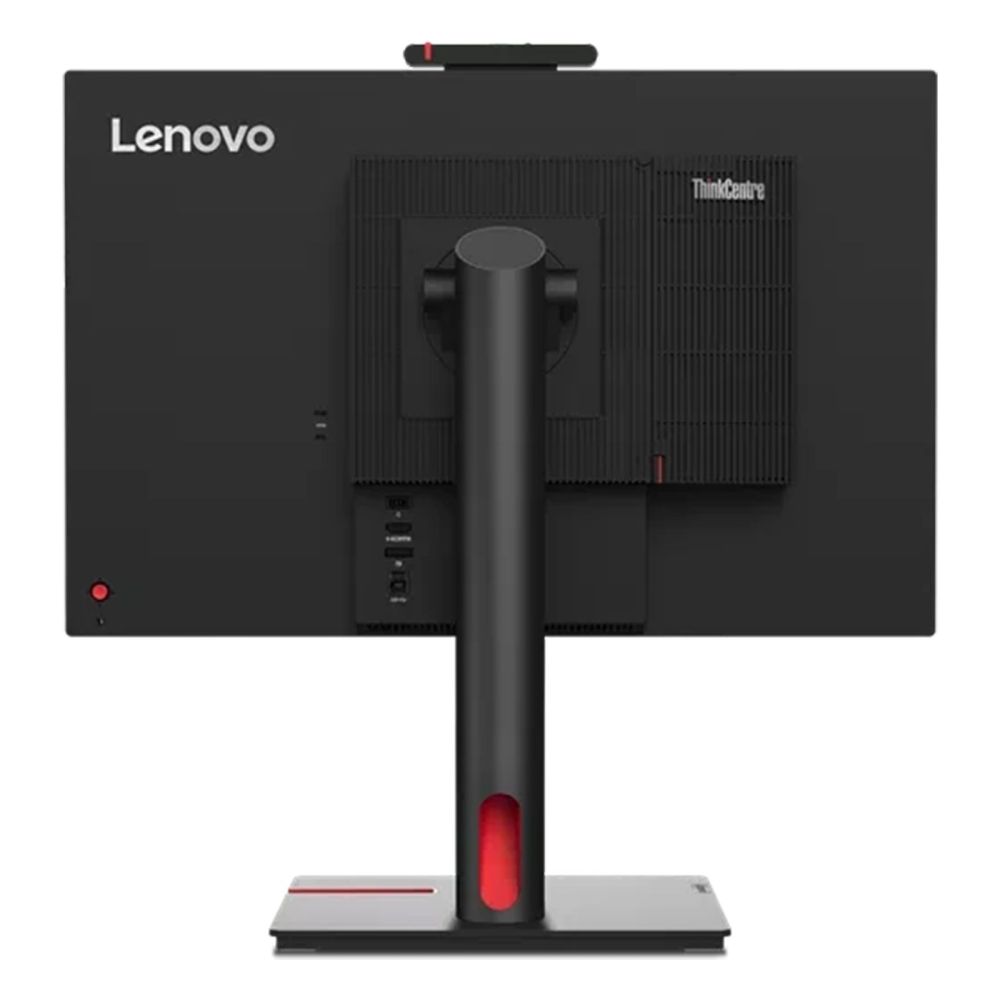

The monitor is specifically developed for use with compatible Lenovo ThinkCentre Tiny systems. It features an integrated KVM switch, enabling control of multiple devices via a single monitor. Connections include a DisplayPort 1.2 and an HDMI 1.4 port, allowing flexible connectivity to various devices. The VESA mounting interface with a 100 x 100 mm mounting pattern allows installation on wall mounts or monitor stands. A cable lock slot (Kensington) provides additional theft protection.
Mounting and Installation

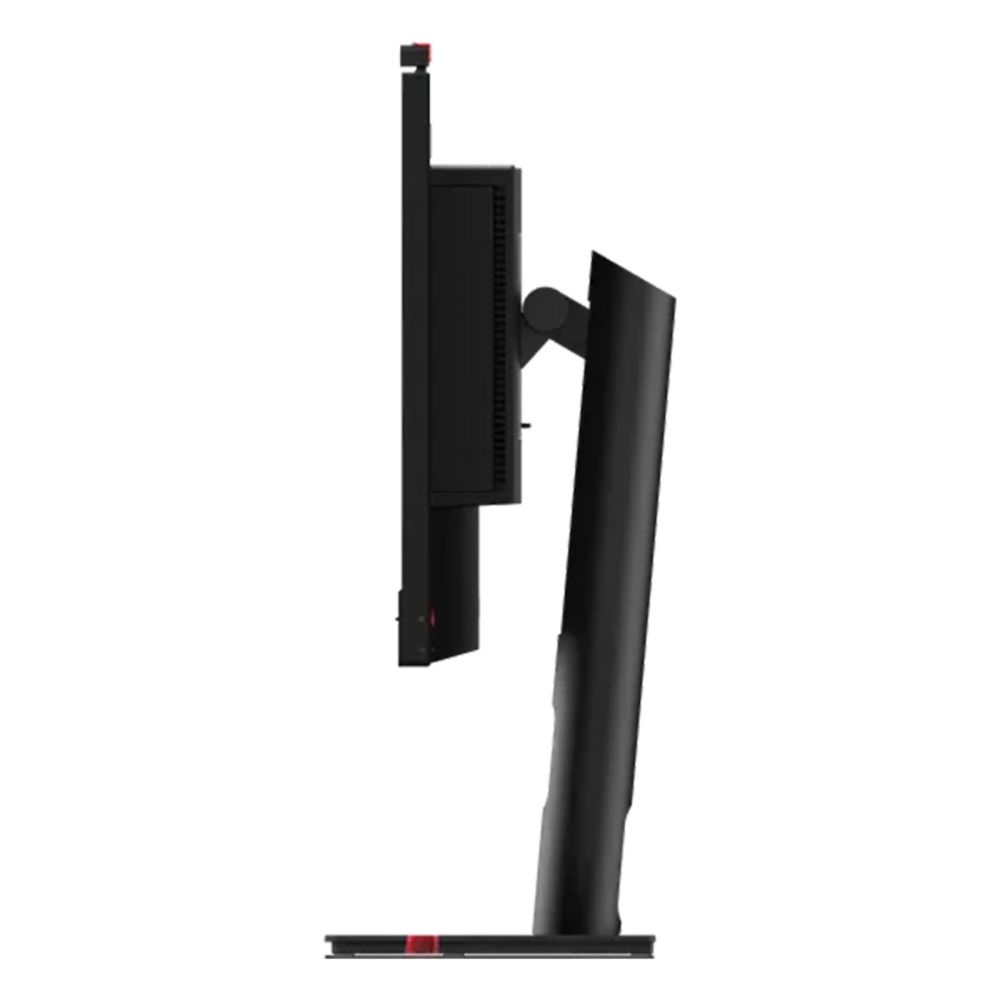

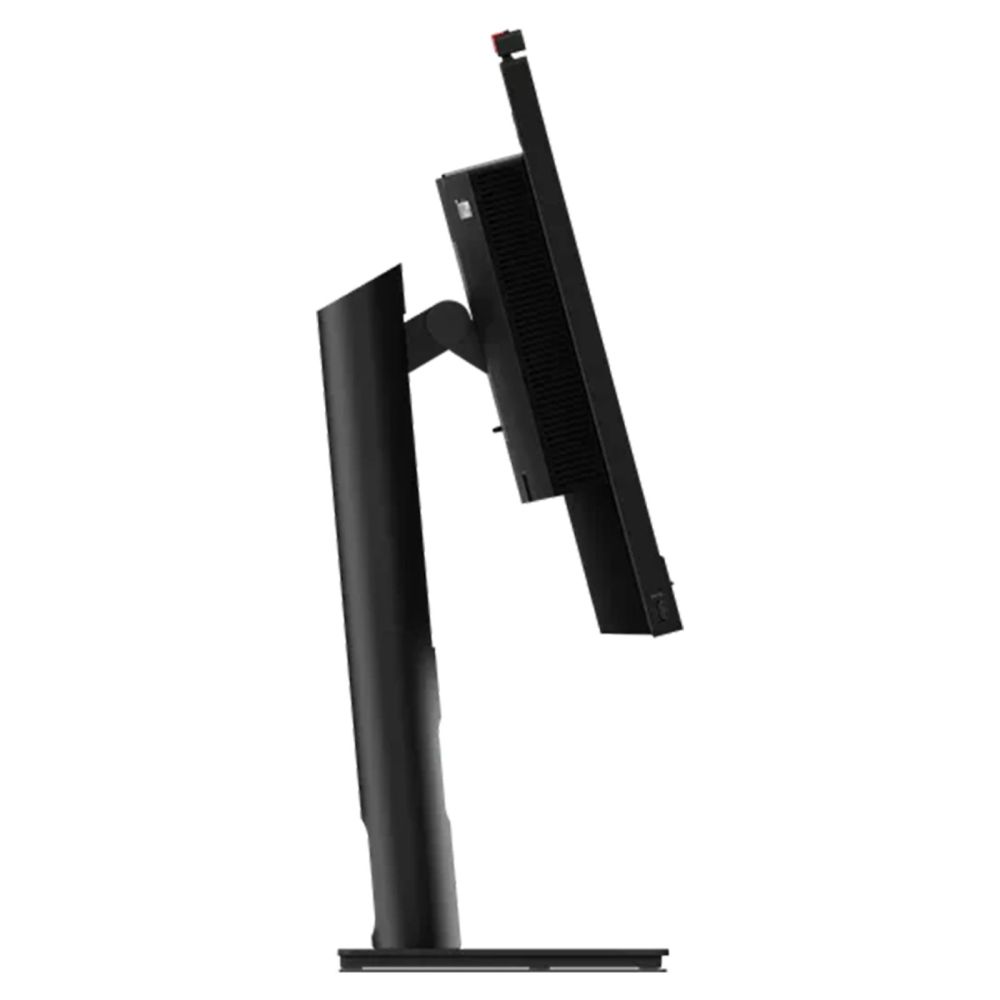

The monitor features a removable stand that allows height adjustment up to 15.5 cm, tilt adjustment from -5° to 23.5°, swivel from -45° to 45°, and pivot from -5° to 90°. These adjustments support an ergonomically optimized working position. The VESA mounting interface enables installation on wall mounts or monitor stands.
Operational Advantages
The integrated speakers, webcam, and microphone reduce the need for additional peripherals and simplify use for video conferencing. Ergonomic adjustment options support customizable working positions, enhancing work comfort. The Low-Blue-Light technology and anti-glare surface contribute to reducing eye strain. The integrated KVM switching enables control of multiple devices via a single monitor. The VESA mounting interface and cable management support neat and secure installation. Power consumption values are 14 W (standard operation), 34 W (maximum), and 0.5 W (standby and off), enabling energy-efficient use. The energy efficiency class is D for standard dynamic range (SDR). The warranty is at least 3 years, with manufacturer support lasting at least 7 years. The minimum lifespan for software and firmware updates is 8 years from the end of market release. Certifications include ENERGY STAR®, TCO 9.0, TCO Edge 2.0, EPEAT™ Gold, RoHS, Eyesafe® Display 2.0, and TÜV Low Blue Light (hardware solution).
Applications
The monitor is designed for use in office environments, particularly in combination with Lenovo ThinkCentre Tiny systems. It is suitable for general office work, presentations, video conferencing, and multitasking. Integrated features such as a webcam, microphone, and speakers reduce the need for additional peripherals. Ergonomic adjustment options support customizable working positions.
Functions and Equipment in Detail
The device includes an integrated Full HD webcam, built-in microphone, and two built-in speakers with an RMS power of 6 W (3 W per speaker). These components enable direct use for video conferencing and communication. An integrated USB hub with USB 3.2 Gen 1 (3.1 Gen 1) provides an upstream port (USB Type-B) and a downstream USB-A port, simplifying the connection of peripheral devices. The Low-Blue-Light technology reduces blue light emission, which can help reduce eye strain. The surface is anti-glare (non-reflective) to minimize reflections.
Technology Explained Simply
The IPS panel (In-Plane Switching) ensures uniform color reproduction and wide viewing angles, which is particularly beneficial for shared use or working with multiple screens. The LED backlighting with W-LED (White LED) provides uniform brightness distribution and lower energy consumption. The response time of 6 ms (standard) and 4 ms (fast) is sufficient for office applications to avoid screen flickering. The brightness of 250 cd/m² is suitable for indoor environments, while the 99 % sRGB coverage ensures accurate color representation. The anti-glare surface reduces glare effects caused by ambient light.
Compatibility and Accessories
The monitor is specifically developed for use with compatible Lenovo ThinkCentre Tiny systems. It features an integrated KVM switch, enabling control of multiple devices via a single monitor. Connections include a DisplayPort 1.2 and an HDMI 1.4 port, allowing flexible connectivity to various devices. The VESA mounting interface with a 100 x 100 mm mounting pattern allows installation on wall mounts or monitor stands. A cable lock slot (Kensington) provides additional theft protection.
Mounting and Installation
The monitor features a removable stand that allows height adjustment up to 15.5 cm, tilt adjustment from -5° to 23.5°, swivel from -45° to 45°, and pivot from -5° to 90°. These adjustments support an ergonomically optimized working position. The VESA mounting interface enables installation on wall mounts or monitor stands.
Operational Advantages
The integrated speakers, webcam, and microphone reduce the need for additional peripherals and simplify use for video conferencing. Ergonomic adjustment options support customizable working positions, enhancing work comfort. The Low-Blue-Light technology and anti-glare surface contribute to reducing eye strain. The integrated KVM switching enables control of multiple devices via a single monitor. The VESA mounting interface and cable management support neat and secure installation. Power consumption values are 14 W (standard operation), 34 W (maximum), and 0.5 W (standby and off), enabling energy-efficient use. The energy efficiency class is D for standard dynamic range (SDR). The warranty is at least 3 years, with manufacturer support lasting at least 7 years. The minimum lifespan for software and firmware updates is 8 years from the end of market release. Certifications include ENERGY STAR®, TCO 9.0, TCO Edge 2.0, EPEAT™ Gold, RoHS, Eyesafe® Display 2.0, and TÜV Low Blue Light (hardware solution).
| Design | |
| Product colour | Black |
| Colour name | Raven Black |
| Feet colour | Black, Red |
| Detachable stand | |
| Display | |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 6 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 3000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Response time (fast) | 4 ms |
| Pixel pitch | 0.275 x 0.275 mm |
| Pixel density | 93 ppi |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Colour depth | 8 bit |
| Colour gamut standard | sRGB |
| Colour gamut | 99% |
| sRGB coverage (typical) | 99% |
| LED backlight | |
| Touchscreen | |
| Anti-glare screen | |
| Ergonomics | |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot type | Kensington |
| Adjustable height (max) | 15.5 cm |
| Pivot angle | -5 - 90° |
| Swivel angle range | -45 - 45° |
| Tilt angle range | -5 - 23.5° |
| VESA mounting | |
| Cable management | |
| Cable lock slot | |
| Height adjustment | |
| Pivot | |
| Swivelling | |
| Tilt adjustment | |
| On Screen Display (OSD) | |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Built-in speaker(s) | |
| Built-in microphone | |
| Built-in camera | |
| Network | |
| Ethernet LAN | |
| Other features | |
| Compatible operating systems | Windows 10 Windows 11 |
| Certification | EPEAT Gold Registered EU Energy Label (D-class) ENERGY STAR Certified TCO Certified 9.0 TCO edge 2.0 Volatile Organic Compound Certification RoHS compliant Eyesafe Certified 2.0 TÜV Rheinland Eye Comfort Certification TÜV Rheinland Low Blue Light (Hardware Solution) |
| Packaging content | |
| Cables included | AC |
| Power cable length | 1 m |
| Stand included | |
| Power adapter included | |
| Quick start guide | |
| Packaging data | |
| Package width | 620 mm |
| Package depth | 187 mm |
| Package height | 420 mm |
| Package weight | 9.5 kg |
| Performance | |
| Low Blue Light technology | |
| Ports & interfaces | |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| Number of USB Type-B upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Built-in USB hub | |
| USB Type-C DisplayPort Alternate Mode | |
| USB Power Delivery (USB PD) | |
| HDMI | |
| Built-in KVM switch | |
| Power | |
| Power consumption (typical) | 14 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 34 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
| Width (with stand) | 539.8 mm |
| Depth (with stand) | 207.6 mm |
| Height (with stand) | 539.6 mm |
| Weight (with stand) | 6 kg |
| Width (without stand) | 539.8 mm |
| Depth (without stand) | 72.8 mm |
| Height (without stand) | 367.6 mm |
| Weight (without stand) | 3.7 kg |
| Bezel width (side) | 2 mm |
| Bezel width (top) | 2 mm |
| Bezel width (bottom) | 4.6 cm |
