Legrand 364932 Bticino Flex'ONE video set with door station LINEA3000 (1 and 2 call buttons)

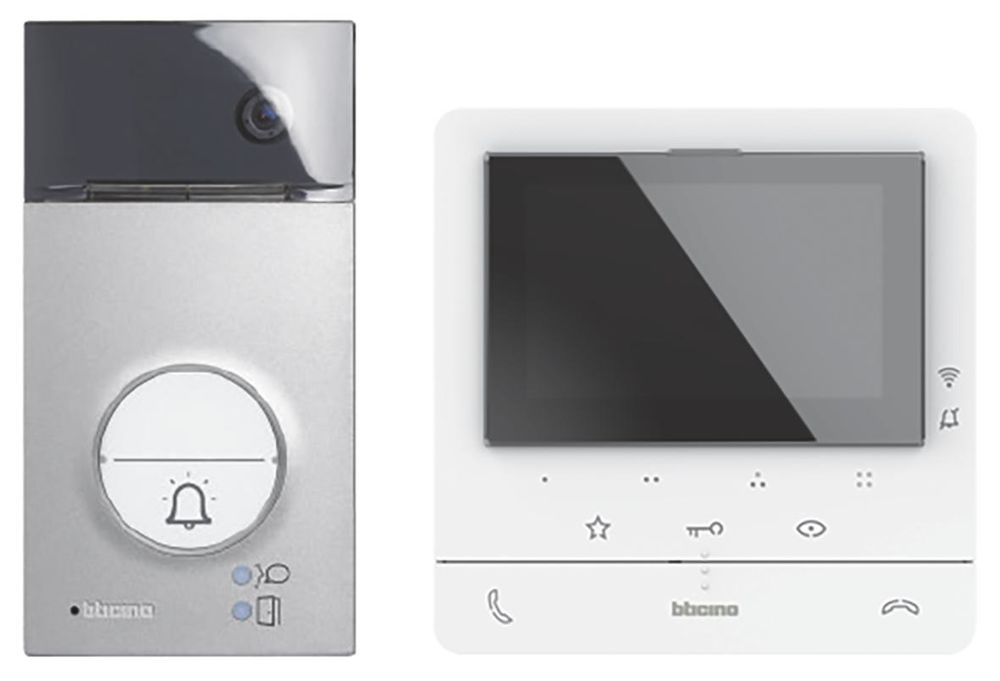

Flex'ONE video set with LINEA 3000 door station and CLASSE 100 X16E house station. The set in 2-wire technology contains all the parts required to create a single-family house intercom system. The extension to a two-family house is done by adding a second house station of your choice. The set consists of:- 1 surface-mounted LINEA 3000 door station with ZAMAK front panel and integrated transponder reader. Camera lighting with white LEDs for better night vision. Recording angle: 105° horizontal/80° vertical (not swiveling). Contains 2 call buttons as standard and can be configured as a single- or two-family house using a slide switch. Equipped with nameplate including brightness-controlled backlighting (white LEDs) and status LEDs for conversation and door opener. The door opener (max. 30 Ohm internal resistance) is connected directly to the S+ and S- terminals (18 V, 4 A surge current, 250 mA holding current). The door station can be flush-mounted using a flush-mounted box (order no. 350020) and accessories (order no. 343061). Protection class IP 54, impact resistance IK 10, management of up to 20 transponders (125 kHz) for door opener control. 8 transponders included in delivery (6 colored, 2 flat transparent). Dimensions: W × H × D: 100 × 190 × 26 mm, color: similar to RAL 9007- 1 video power supply- 1 handset-free surface-mounted house station CLASSE 100 X16E with smartphone connection and induction loop for hearing aid wearers2-wire bus system, color LCD display 5' (12.7 cm), with smartphone connection and induction loop for hearing aid wearers, free two-way communication, in addition to the two physical call buttons (accept or end call), it has 3 sensor buttons for the functions: open door, switch on staircase light (activator order no. 346210 is required) and switch door station on or off. It also contains 4 freely configurable additional buttons (e.g. for internal speaking, additional door opener, etc.). 16 melodic ring tones can be set. Incl. doctor connection/door automat function. For door/floor calls with call differentiation. The volume of the ringtone and conversation, the color and brightness of the screen and the WLAN configuration are set via the OSD menu, which is operated via a control on the side. LED display for: ringtone deactivation, Wi-Fi, door opener and connection status. The complete functionality of the house station (video image, conversation, door opening, additional cameras, etc.) can be displayed on the smartphone via the Door Entry app (available for Android and iOS). Surface mounting using the wall bracket supplied. A table accessory (2 pieces of order no. 344692 are required) is available separately. Connection for BUS, floor call and additional bell. Dimensions W × H × D: 164 × 165 × 18.5 mm - circuit diagram and operating instructions
Type: Bticino 364932
