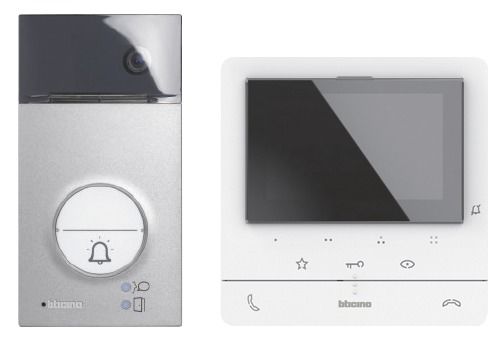

Legrand 364922 Bticino Flex'ONE video set with door station LINEA3000 (1 and 2 call buttons)

Flex'ONE video set with LINEA 3000 door station and CLASSE 100 V16E house station. The set in 2-wire technology contains all the parts required to create a single-family house intercom system. The extension to a two-family house is done by adding a second house station of your choice. The set consists of:- 1 surface-mounted LINEA 3000 door station with ZAMAK front panel. Camera lighting with white LEDs for better night vision. Recording angle: 105° horizontal/80° vertical (not swiveling). Contains 2 call buttons as standard and can be configured as a single- or two-family house using a slide switch. Equipped with nameplate including brightness-controlled backlighting (white LEDs) and status LEDs for conversation and door opener. The door opener (max. 30 Ohm internal resistance) is connected directly to the terminals S+ and S- (18 V, 4 A surge current, 250 mA holding current). The door station can be flush-mounted using a flush-mounted box (order no. 350020) and accessories (order no. 343061). Protection class IP 54, impact resistance IK 10, dimensions: W × H × D: 100 × 190 × 26 mm, color: similar to RAL 9007- 1 video power supply unit- 1 handset-free surface-mounted house station CLASSE 100 V16E with induction loop for hearing aid wearers2-wire bus system, color LCD display 5' (12.7 cm), with induction loop for hearing aid wearers, hands-free two-way communication, in addition to the two physical call buttons (accept or end call), it has 3 sensor buttons for the functions: open door, switch on stairwell light (activator order no. 346210 is required) and switch door station on or off. It also contains 4 freely configurable additional buttons (e.g. for internal speaking, additional door opener, etc.). 16 melodic ring tones can be set. Incl. doctor connection/door automat function. For door/floor call with call differentiation. The volume of the ringtone and conversation as well as the color and brightness of the screen are set via the OSD menu, which is operated via a control on the side. LED display for: ringtone deactivation, door opener and connection status. Surface mounting using the wall bracket supplied. A table accessory (2 pieces of order no. 344692 are required) is available separately. Connection for BUS, floor call and additional bell. Dimensions W × H × D: 164 × 165 × 18.5 mm - circuit diagram and operating instructions
Type: Bticino 364922
